BROKEN BOW - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

90F
BROKEN BOW
PublicPUB

2 miles SW of BROKEN BOW, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 00' 47"N 94° 45' 30"W
404' MSL
1404' MSL
05E
None Listed
MC ALESTER (MLC)
MEMPHIS
FORT WORTH (ZFW)
5/16/24-6/13/24
K4O4 (8nm) VFR
9:15 PM CDT
Broken 4,900'
Few 3,600'
10sm
72°F
72°F
29.94"Hg
100° 4kts
AO2
K4O4 010215Z AUTO 10004KT 10SM FEW036 BKN049 22/22 A2994 RMK AO2
Add Your Business

90F FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

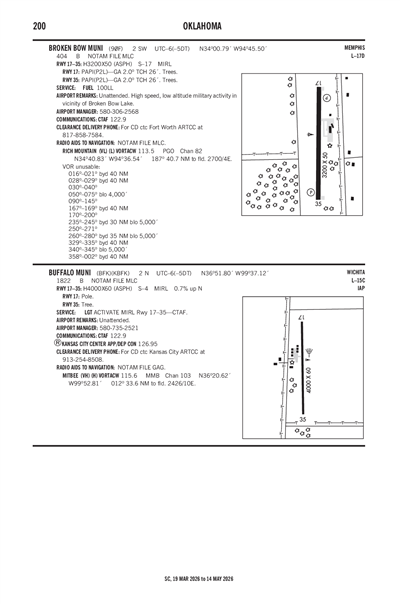

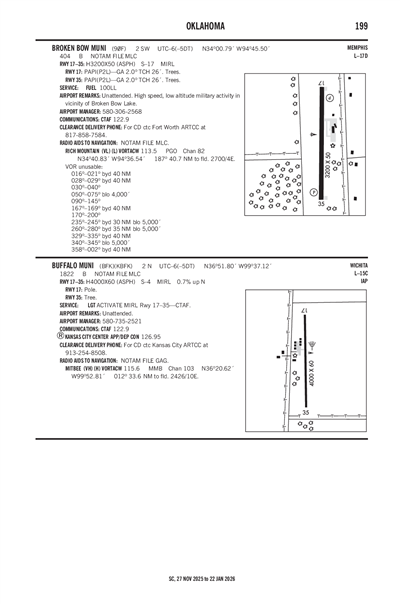

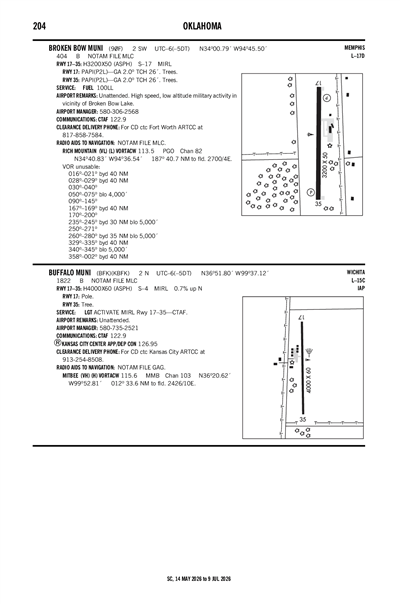

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KTXK (51nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 4:00 AM CDT
Overcast 3,500'
6sm
140° 3kts
MVFR
4:00 AM CDT - 7:00 AM CDT
Mist
Overcast 1,000'
6sm
180° 3kts
IFR
7:00 AM CDT - 11:00 AM CDT
Overcast 900'
6sm
210° 3kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Overcast 1,500'
6sm
250° 5kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 25,000'
6sm
240° 6kts
KTXK 312320Z 0100/0124 14003KT P6SM OVC035
   FM010900 18003KT 6SM BR OVC010
   FM011200 21003KT P6SM OVC009
   FM011600 25005KT P6SM OVC015
   FM011800 24006KT P6SM BKN250
90F
Domestic
5/30/241832Z !MLC 05/505 90F OBST TOWER LGT (ASR 1009236) 341231.40N0944658.80W (11.8NM N 90F) 1514.8FT (513.8FT AGL) U/S 2405301832-2406132359
5/24/240900Z !MLC 05/408 90F OBST TOWER LGT (ASR 1234501) 340502.00N0945908.00W (12.1NM WNW 90F) 848.8FT (384.8FT AGL) U/S 2405240900-2407242359
2/27/242017Z !MLC 02/286 90F RWY 35 PAPI U/S 2402272017-2502272359
2/27/242017Z !MLC 02/285 90F RWY 17 PAPI U/S 2402272017-2502272359
No
UNATNDD
CITY OF BROKEN BOW
CITY HALL, 210 N. BROADWAY
BROKEN BOW, OK 74728
Phone: 580-584-2282
VICKIE PATTERSON
CITY HALL, 210 N. BROADWAY
BROKEN BOW, OK 74728
Phone: 580-584-2885
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
Sunset to Sunrise
--
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
7
0
0
0
0
0
None
None
None
None
None

Runway 17/35

3200 ft. x 50 ft.
ASPH
Good
NONE
MED

17,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 01' 03"N 34° 00' 32"N
Longitude 94° 45' 30"W 94° 45' 30"W
Elevation 403' 404'
Threshold Crossing Height 26 ft. AGL 26 ft. AGL
Visual Glide Path Angle 2° 2°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HIGH SPEED; LOW ALTITUDE MILITARY ACTIVITY INVOF BROKEN BOW LAKE.
A110-3FOR COURTESY CAR CALL 580-584-2282.
A110-4FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
BROKEN BOW (IATA: 90F) is a public airport located in BROKEN BOW, OK.
