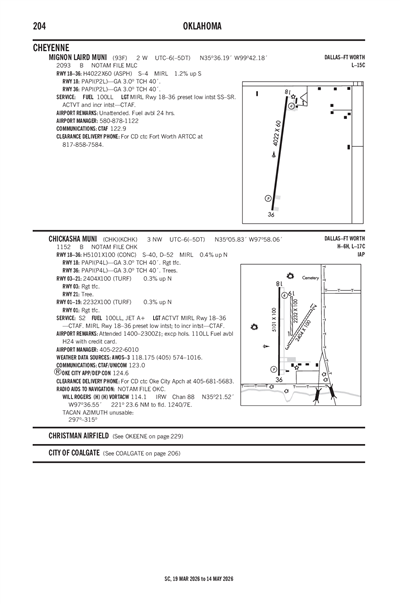

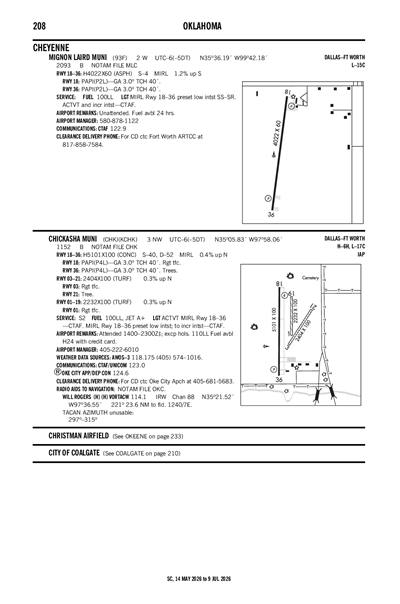

MIGNON LAIRD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

93F
MIGNON LAIRD MUNI
PublicPUB

2 miles W of CHEYENNE, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 36' 12"N 99° 42' 11"W
2093' MSL
3093' MSL
08E
100LL
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KELK (19nm) VFR
10:55 PM CDT
Clear
8sm
71°F
67°F
30.00"Hg
140° 5kts
AO2 PRESRR T02140193 $
KELK 010355Z AUTO 14005KT 8SM CLR 21/19 A3000 RMK AO2 PRESRR T02140193 $
Add Your Business

93F FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KCSM (29nm)
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 PM CDT
Broken 10,000'
Scattered 3,000'
6sm
VRB° 5kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 25,000'
6sm
160° 11kts
KCSM 312320Z 0100/0124 VRB05KT P6SM SCT030 BKN100
   FM011800 16011KT P6SM BKN250
93F
Domestic
5/20/240236Z !MLC 05/310 93F OBST TOWER LGT (ASR 1250225) 354436.30N0992215.30W (18.3NM ENE 93F) 2152.9FT (278.9FT AGL) U/S 2405200236-2406202359
No
UNATNDD
CITY OF CHEYENNE
CITY HALL BOX 10
CHEYENNE, OK 73628
Phone: 580-497-2455
CHRIS MOORE
9625 N 1910 RD
CHEYENNE, OK 73628
Phone: 580-878-1122
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
MIRL RWY 18/36 PRESET LOW INTST SS-SR. ACTVT & INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
2
0
0
0
0
0
None
None
None
None
None

Runway 18/36

4022 ft. x 60 ft.
ASPH
Good
NONE
MED

4,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 187°7°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 36' 31"N 35° 35' 52"N
Longitude 99° 42' 08"W 99° 42' 14"W
Elevation 2,044' 2,093'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
MIGNON LAIRD MUNI (IATA: 93F) is a public airport located in CHEYENNE, OK.
