HASTINGS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

9D9
HASTINGS
PublicPUB

3 miles W of HASTINGS, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 39' 48"N 85° 20' 45"W
800' MSL
1600' MSL
06W
Jet A+, 100LL
LANSING (LAN)
CHICAGO
CHICAGO (ZAU)
5/16/24-6/13/24
KGRR (15nm) VFR
9:53 PM EDT
Broken 10,000'
Broken 6,000'
10sm
58°F
52°F
29.98"Hg
070° 5kts
AO2 RAB08E27 SLP153 P0000 T01440111
KGRR 290153Z 07005KT 10SM BKN060 BKN100 14/11 A2998 RMK AO2 RAB08E27 SLP153 P0000 T01440111
List Your Business

9D9 FBOs, Flight Schools and Ground Support

Promote Listing
Hastings Airport
Freq: 123.075
Phone: (269) 945-6306
Other: (269) 838-5874
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/8
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.81 4.59
Full Serve

9D9 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

9D9 Hotels

No hotels are listed for this airport.

9D9 Restaurants

No restaurants are listed for this airport.

9D9 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

No communication frequencies available for this airport.

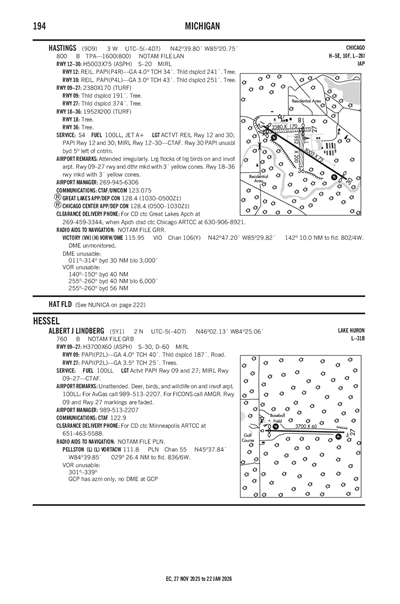

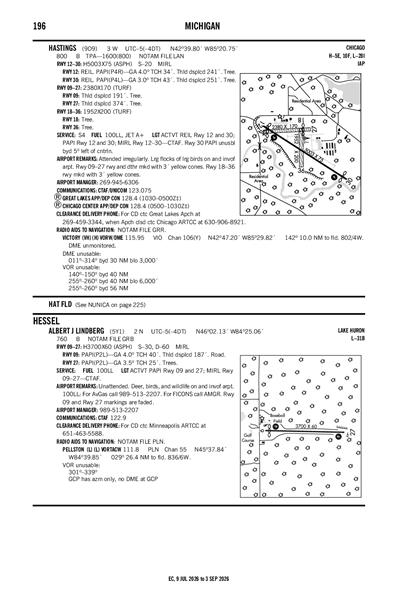

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGRR (15nm)
Tue, 5/28 7:40 PM EDT
Tue, 5/28 8:00 PM EDT - Wed, 5/29 8:00 PM EDT
VFR
8:00 PM EDT - 11:00 PM EDT
Showers in vicinity
Broken 9,000'
Scattered 3,500'
6sm
300° 7kts
VFR
11:00 PM EDT - 4:00 AM EDT
Showers in vicinity
Broken 6,000'
Scattered 3,500'
6sm
340° 6kts
VFR
4:00 AM EDT - 11:00 AM EDT
Broken 6,000'
Scattered 3,500'
6sm
360° 5kts
MVFR
11:00 AM EDT - 2:00 PM EDT
Showers in vicinity
Broken 2,500'
6sm
350° 8kts
VFR
2:00 PM EDT - 8:00 PM EDT
Broken 5,000'
6sm
020° 10kts
KGRR 282340Z 2900/2924 30007KT P6SM VCSH SCT035 BKN090
   FM290300 34006KT P6SM VCSH SCT035 BKN060
   FM290800 36005KT P6SM SCT035 BKN060
   FM291500 35008KT P6SM VCSH BKN025
   FM291800 02010KT P6SM BKN050
9D9
Domestic
5/27/241527Z !LAN 05/459 9D9 OBST TOWER LGT (ASR 1325428) 424310.20N0852704.50W (5.75NM NW 9D9) 1146FT (320FT AGL) U/S 2405271527-2409152359
5/23/242221Z !LAN 05/413 9D9 OBST TOWER LGT (ASR 1325429) 423828.20N0851611.50W (3.61NM ESE 9D9) 1120FT (320FT AGL) U/S 2405232221-2409152359
5/23/240507Z !LAN 05/393 9D9 OBST TOWER LGT (ASR 1273153) 423749.10N0851156.80W (6.7NM ESE 9D9) 1205.1FT (310.0FT AGL) U/S 2405230507-2406242359
5/11/241610Z !LAN 05/179 9D9 OBST TOWER LGT (ASR 1213715) 423255.60N0851531.70W (7.9NM SSE 9D9) 1246.1FT (254.9FT AGL) U/S 2405111610-2408100400
5/9/241922Z !LAN 05/143 9D9 OBST TOWER LGT (ASR 1006577) 423254.00N0852241.00W (7.1NM SSW 9D9) 1322.5FT (307.7FT AGL) U/S 2405091922-2406102359
4/30/241108Z !LAN 04/489 9D9 OBST TOWER LGT (ASR 1054356) 424300.30N0852618.20W (5.2NM NW 9D9) 1166.0FT (258.9FT AGL) U/S 2404301108-2408281108
2/13/241821Z !LAN 02/161 9D9 RWY 12 PAPI U/S 2402131821-2408132111EST
FDC
8/19/230145Z !FDC 3/7717 9D9 IAP HASTINGS, HASTINGS, MI.
RNAV (GPS) RWY 30, AMDT 2A...
CIRCLING CAT B MDA 1440/HAA 640.
2308190145-2508180145EST
8/19/230145Z !FDC 3/7713 9D9 IAP HASTINGS, HASTINGS, MI.
VOR RWY 12, ORIG-H...
S-12 MDA 1700/HAT 900 ALL CATS.
CIRCLING MDA 1700/HAA 900 ALL CATS; CAT A VIS 1 1/4.
JCUBS FIX MINIMUMS CIRCLING CAT B MDA 1440/HAA 640.
2308190145-2508180145EST
8/14/232127Z !FDC 3/4281 9D9 IAP HASTINGS, HASTINGS, MI.
RNAV (GPS) RWY 12, AMDT 2...
LNAV/VNAV VIS 1 3/8.
CIRCLING CAT B MDA 1440/HAA 640.
RWY 12 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
2308142127-2508142127EST
No
IREG
HASTINGS CITY-BARRY CO ARPT COMM
2505 MURPHY DR.
HASTINGS, MI 49058
Phone: 269-945-6306
MARK NOTEBOOM
2505 MURPHY DR.
HASTINGS, MI 49058
Phone: 269-945-6306
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT MIRL RY 12/30, PAPI RY 12 & RY 30, REIL RY 12 & RY 30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
73
5
1
7
0
0
Major
Major
None
None
Pilot Instruction

Runway 09/27

2380 ft. x 170 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 87°267°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 39' 55"N 42° 39' 56"N
Longitude 85° 21' 09"W 85° 20' 37"W
Elevation 795' 798'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5003 ft. x 75 ft.
ASPH
Good
NONE
MED

20,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 122°302°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 39' 58"N 42° 39' 31"N
Longitude 85° 21' 09"W 85° 20' 13"W
Elevation 797' 797'
Threshold Crossing Height 34 ft. AGL 43 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

1952 ft. x 200 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 39' 57"N 42° 39' 37"N
Longitude 85° 20' 44"W 85° 20' 43"W
Elevation 797' 798'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2LRG FLOCKS OF LRG BIRDS ON & INVOF ARPT.
A110-3FOR CD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
HASTINGS (IATA: 9D9) is a public airport located in HASTINGS, MI.
