AK71
LONELY AS
Private
PVT
0 miles N of LONELY, AK
View on
Map
Status
Operational
Coordinates
70° 54' 39"N
153° 14' 32"W
Elevation
17' MSL
Pattern Alt
1017' MSL
Mag Variation
28E
Fuel
None Listed
FSS
BARROW (BRW)
Sectional
POINT BARROW
ARTCC
ANCHORAGE (ZAN)
Data Effective
11/28/24-12/26/24
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
AK71 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
126.2
No communication frequencies available for this airport.

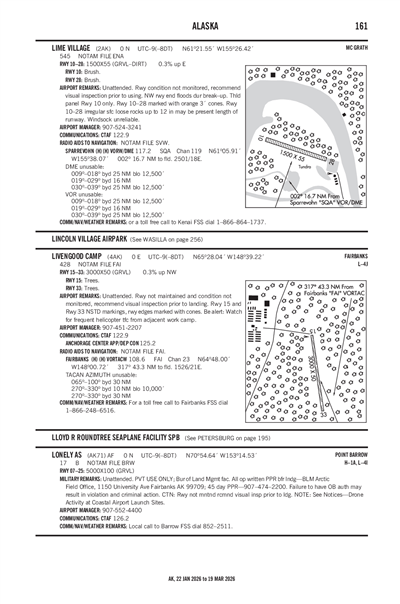

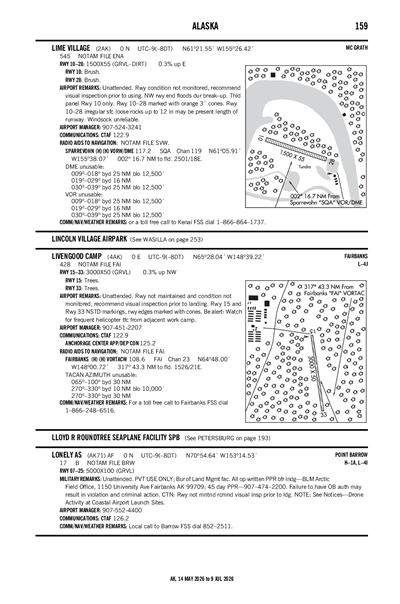

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
No TAF is available for this location.
AK71
No NOTAM Available
ATC Tower
No
Attendance
UNATNDD
Owner
U.S. AIR FORCE
611TH AIR SUPPORT GROUP, 10471 20TH STREET, SUTIE 361
ELMENDORF AFB, AK 99506
Phone: 907-552-3442
Manager
NICK HILTON
611TH AIR SUPPORT SQUADRON, 10471 20TH STREET, SUTIE 222
ELMENDORF AFB, AK 99506
Phone: 907-552-4400
FSS
BARROW FSS (BRW)
Toll Free: LC852-2511
NOTAM
BRW
Light Schedule
--
Lights
24 HR.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
None
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Cargo Handling
Runway 07/25
Dimensions
5000 ft. x 100 ft.
Surface Type
Surface Cond
GRAVEL
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 07
Runway 25
True Heading
Not Listed
Not Listed
Traffic Pattern
Left
Left
Markings
NONE
NONE
Markings Condition
Latitude
N/A
N/A
Longitude
N/A
N/A
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-1
ALL OP WRITTEN PPR BFR LNDG - BLM ARCTIC FIELD OFFICE 1150 UNIVERSITY AVE FAIRBANKS AK 99709; 45 DAY PPR - 907-474-2200. FAILURE TO HAVE OB AUTH MAY RESULT IN VIOLATION & CRIMINAL ACTION.
A110-2
CTN: RWY NOT MNTND RCMND VISUAL INSP PRIOR TO LDG.
LONELY AS (IATA: AK71) is a private airport located in LONELY, AK.
