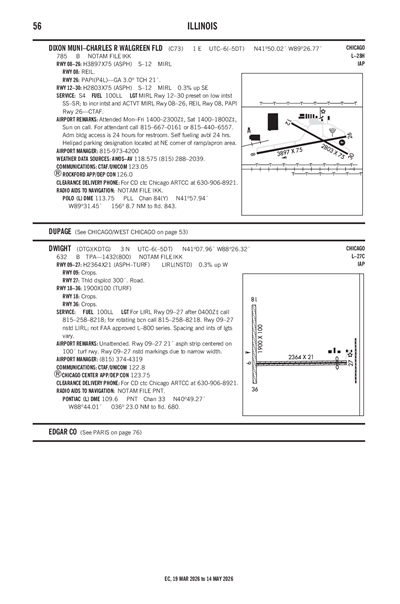

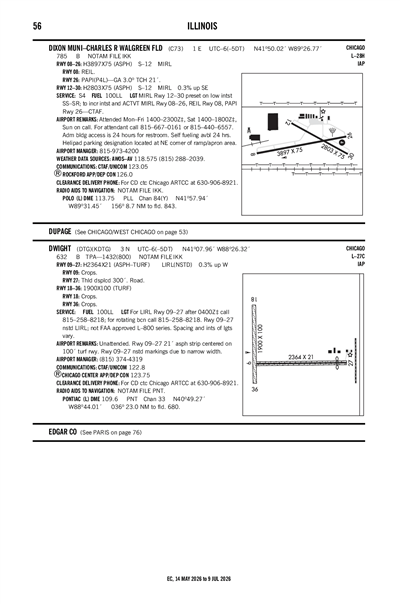

DIXON MUNI-CHARLES R WALGREEN FLD - Airport Diagram

C73

DIXON MUNI-CHARLES R WALGREEN FLD

PublicPUB

1 miles E of DIXON, IL

View on Map

Status

Operational

Coordinates

41° 50' 01"N 89° 26' 46"W

Elevation

785' MSL

Pattern Alt

1785' MSL

Mag Variation

02W

Fuel

100LL

FSS

KANKAKEE (IKK)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

11/28/24-12/26/24

KRPJ (17nm) VFR

6:15 AM CST RAW

Overcast 4,100'

Viz

10sm

Temp

33°F

Dew

27°F

Pres

30.05"Hg

Wind

170° 9kts

RMK

AO2 T00051027

KRPJ 231215Z AUTO 17009KT 10SM OVC041 01/M03 A3005 RMK AO2 T00051027

Add Your Business

C73 FBOs

Promote Listing

Dixon Municipal Airport

UNICOM: 123.05

Phone: (815) 288-1485

Other: (815) 288-4095

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 12/16	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.90
Full Serve

Fuel Notes

Prices include tax

C73 Other Businesses

Promote Listing

M & M Aviation Services

UNICOM: 123.05

Phone: (815) 622-3591

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 123.05 CTAF 123.05

AWOS-AV

815-288-2039

118.575

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KRFD (27nm)

RAW

Reported

Mon, 12/23 5:20 AM CST

Valid

Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST

VFR

6:00 AM CST - 9:00 AM CST

Overcast 3,500'
Scattered 2,000'

Viz

6sm

Wind

180° 11kts

Gusts 17kts

MVFR

9:00 AM CST - 4:00 PM CST

Overcast 2,000'
Broken 1,500'

Viz

6sm

Wind

210° 10kts

MVFR

4:00 PM CST - 8:00 PM CST

Overcast 1,500'
Scattered 900'

Viz

6sm

Wind

280° 7kts

IFR

8:00 PM CST - 6:00 AM CST

Overcast 900'

Viz

6sm

Wind

350° 6kts

MVFR

Temporary 2:00 AM CST - 6:00 AM CST

Mist

No Clouds

Viz

3sm

Wind

Calm

KRFD 231120Z 2312/2412 18011G17KT P6SM SCT020 OVC035
   FM231500 21010KT P6SM BKN015 OVC020
   FM232200 28007KT P6SM SCT009 OVC015
   FM240200 35006KT P6SM OVC009
   TEMPO 2408/2412 3SM BR

C73

Domestic
12/20/241232Z	!IKK 12/117 C73 OBST TOWER LGT (ASR 1009773) 414929.00N0892951.00W (2.4NM WSW C73) 1086.0FT (334.6FT AGL) U/S 2412201232-2502031231
12/20/241028Z	!IKK 12/113 C73 OBST TOWER LGT (ASN 2013-AGL-8297-OE) 415044N0892846W (1.6NM WNW C73) 765FT (111FT AGL) U/S 2412201028-2502030728
12/20/241027Z	!IKK 12/114 C73 OBST POWER LINE LGT (ASN 2013-AGL-7517-OE) 415044N0892844W (1.6NM WNW C73) 852FT (198FT AGL) U/S 2412201027-2502030726
12/19/240300Z	!IKK 12/107 C73 OBST TOWER LGT (ASR 1008491) 415208.00N0893349.00W (5.6NM WNW C73) 1054.8FT (297.9FT AGL) U/S 2412190300-2503180500
12/18/242007Z	!IKK 12/105 C73 SVC AUTOMATED WX BCST SYSTEM DP/T UNREL 2412182007-2508272359EST
12/2/241317Z	!IKK 12/007 C73 RWY 26 PAPI U/S 2412021317-2506022111EST

ATC Tower

Attendance

MON-FRI 0800-1700
SAT 0800-1200
SUN ON CALL
FOR ATTENDANT CALL 815-667-0161 OR 815-440-6557. ADM BLDG ACCESS IS 24 HRS FOR RESTROOM.

Owner

CITY OF DIXON
1650 FRANKLIN GROVE ROAD
DIXON, IL 61021
Phone: 815-288-1485

Manager

TYLER VENIER
1650 FRANKLIN GROVE RD
DIXON, IL 61021
Phone: 815-973-4200

FSS

KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF

NOTAM

IKK

Light Schedule

Lights

MIRL RY 12/30 PRESET ON LOW INTST SS-SR; TO INCR INTST & ACTVT MIRL RY 08/26, REIL RY 08, PAPI RY 26 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction

Runway 08/26

Dimensions

3897 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 08	Runway 26
True Heading	80°	260°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	41° 49' 57"N	41° 50' 04"N
Longitude	89° 27' 16"W	89° 26' 25"W
Elevation	782'	784'
Threshold Crossing Height	--	21 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes

Runway 12/30

Dimensions

2803 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	121°	301°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	41° 50' 10"N	41° 49' 56"N
Longitude	89° 26' 56"W	89° 26' 25"W
Elevation	777'	785'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-2	HELIPAD PARKING DESIGNATION LOCATED AT NE CORNER OF RAMP/APRON AREA.
A110-3	FOR CD CTC CHICAGO ARTCC AT 630-906-8921.

DIXON MUNI-CHARLES R WALGREEN FLD (IATA: C73) is a public airport located in DIXON, IL.
