iFlightPlanner



...

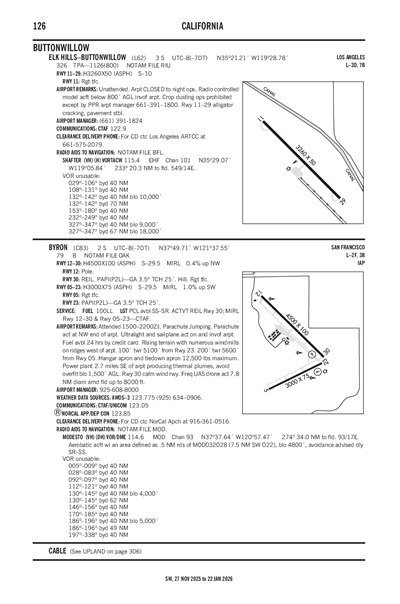

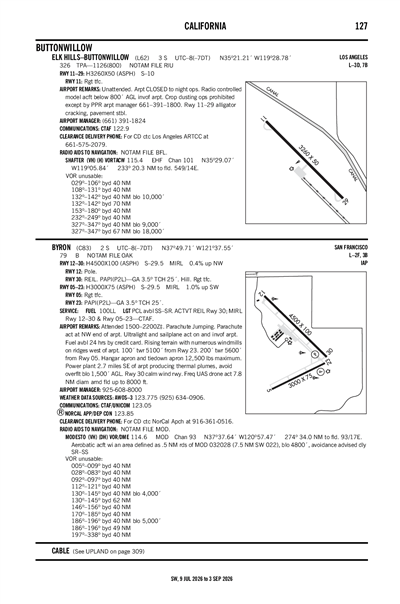

BYRON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C83
BYRON
PublicPUB

2 miles S of BYRON, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 49' 42"N 121° 37' 33"W
78' MSL
1078' MSL
15E
100LL
OAKLAND (OAK)
SAN FRANCISCO
OAKLAND (ZOA)
11/28/24-12/26/24
KC83 LIFR
3:55 AM PST
Mist
Overcast 300'
1.25sm
54°F
54°F
30.17"Hg
320° 3kts
AO2
KC83 231155Z AUTO 32003KT 1 1/4SM BR OVC003 12/12 A3017 RMK AO2
Add Your Business

C83 FBOs

Promote Listing
Byron Airport
UNICOM: 123.05
Phone: (925) 634-0147
Other: (925) 383-1390
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/3
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.50
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3

AWOS-3
925-634-0906
 123.775

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLVK (12nm)
Mon, 12/23 3:31 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
MVFR
4:00 AM PST - 10:00 AM PST
Mist
Broken 4,500'
Broken 2,500'
4sm
VRB° 3kts
MVFR
10:00 AM PST - 1:00 PM PST
Mist
Overcast 2,500'
6sm
VRB° 4kts
VFR
1:00 PM PST - 7:00 PM PST
Overcast 5,000'
Few 3,000'
6sm
070° 5kts
VFR
7:00 PM PST - 2:00 AM PST
Mist
Overcast 5,000'
6sm
090° 3kts
MVFR
2:00 AM PST - 4:00 AM PST
Light Rain and Mist
Overcast 2,500'
6sm
230° 14kts
Gusts 22kts
KLVK 231131Z 2312/2412 VRB03KT 4SM BR BKN025 BKN045
   FM231800 VRB04KT 6SM BR OVC025
   FM232100 07005KT P6SM FEW030 OVC050
   FM240300 09003KT 6SM BR OVC050
   FM241000 23014G22KT 6SM -RA BR OVC025
C83
Domestic
12/23/241430Z !OAK 12/216 C83 RWY 12/30 CLSD 2412231430-2412240030
12/17/241735Z !OAK 12/179 C83 OBST TOWER LGT (ASN UNKNOWN) 374645.4N1213818.8W (3.8NM S C83) 850FT (118FT AGL) U/S 2412171735-2501012359
11/18/242013Z !OAK 11/178 C83 RWY 30 RWY END ID LGT U/S 2411182013-2412312359
11/4/241500Z !OAK 11/039 C83 AIRSPACE SEE ZOA 11/038 UAS MON-FRI 1500-0600 2411041500-2503090600
10/17/241600Z !OAK 10/202 C83 AIRSPACE PJE WI AN AREA DEFINED AS 2NM RADIUS OF 374948N1213748W (.7NM SE C83) SFC-15000FT DLY 1600-2359 2410171600-2510162359
9/6/242020Z !OAK 09/069 C83 AIRSPACE NUMEROUS LOW FLYING HEL OPS WI AN AREA DEFINED AS 1NM RADIUS OF MOD281036 (2.5NM NNE C83) SFC-1000FT AGL 2409062020-2501312359EST
1/26/241700Z !OAK 01/306 C83 AIRSPACE PJE WI AN AREA DEFINED AS 2NM RADIUS OF 374948N1213748W (.7NM SE C83) SFC-13500FT SAT SUN 1700-0200 2401261700-2501010200
No
0700-1400
CONTRA COSTA COUNTY
181 JOHN GLENN DR, SUITE 100
CONCORD, CA 94520
Phone: 925-608-8000
GREG BAER
181 JOHN GLENN DR, SUITE 100
CONCORD, CA 94250
Phone: 925-608-8000
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
OAK
--
PCL AVBL SS-SR. ACTVT REIL RWY 30; MIRL RWY 12/30 & 05/23 - CTAF.
N/A
N/A
Yes
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
Glider Service
Parachute Jump Activity
Glider Towing

Runway 05/23

3000 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 63°243°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 49' 20"N 37° 49' 34"N
Longitude 121° 37' 48"W 121° 37' 15"W
Elevation 78' 49'
Threshold Crossing Height -- 25 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

4500 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 50' 08"N 37° 49' 37"N
Longitude 121° 37' 54"W 121° 37' 14"W
Elevation 64' 48'
Threshold Crossing Height -- 25 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1ULTRALIGHT & SAILPLANE ACTIVITY ON & INVOF ARPT.
A110-2RISING TERRAIN WITH NUMEROUS WINDMILLS ON RIDGES WEST OF ARPT.
A110-3HANGAR APRON & TIEDOWN APRON 12500 LBS MAX.
A110-4RY 30 CALM WIND RY.
A110-5200' TOWER 5600 FEET FROM RUNWAY 05.
A110-6100' TOWER 5100 FEET FROM RUNWAY 23.
A110-7POWER PLANT 2.7 MILES SE OF AIRPORT PRODUCING THERMAL PLUMES; AVOID OVERLFIGHT BELOW 1,500 FT AGL.
A110-8FOR CD CTC NORCAL APCH AT 916-361-0516.
A110-9FREQ UAS DRONE ACT 7.8 NM DIAM ARND FLD UP TO 8000 FT.
BYRON (IATA: C83) is a public airport located in BYRON, CA.
