iFlightPlanner



...

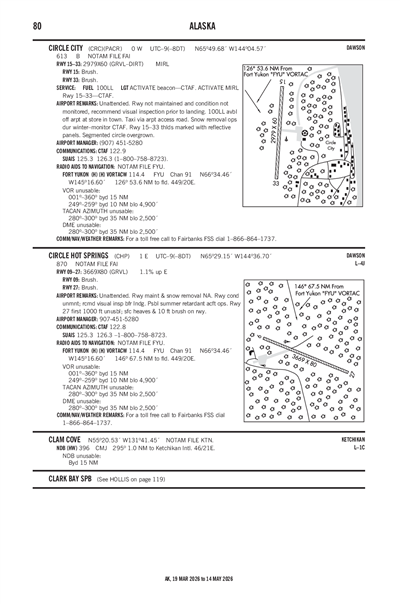

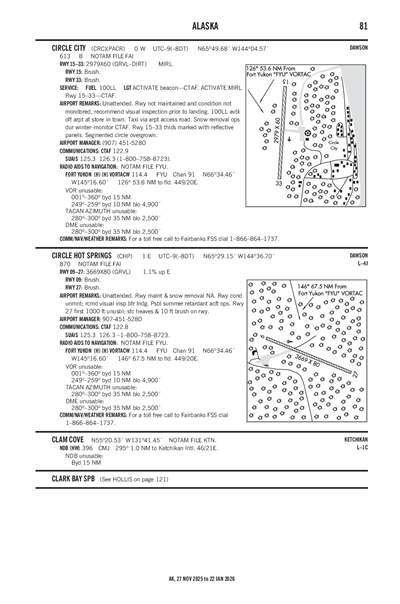

CIRCLE HOT SPRINGS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

CHP
CIRCLE HOT SPRINGS
PublicPUB

1 miles E of CIRCLE HOT SPRINGS, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
65° 29' 09"N 144° 36' 42"W
870' MSL
1870' MSL
30E
None Listed
FAIRBANKS (FAI)
DAWSON
ANCHORAGE (ZAN)
5/16/24-6/13/24
PFYU (67nm) VFR
6:56 PM AKDT
Few 8,000'
10sm
69°F
35°F
29.70"Hg
VRB° 3kts
AO2 SLP064 T02060017 56024
PFYU 010256Z VRB03KT 10SM FEW080 21/02 A2970 RMK AO2 SLP064 T02060017 56024
Add Your Business

CHP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PABI (94nm)
Fri, 5/31 2:00 PM AKDT
Fri, 5/31 2:00 PM AKDT - Sat, 6/1 8:00 PM AKDT
VFR
2:00 PM AKDT - 8:00 PM AKDT
Scattered 9,000'
6sm
29.73"Hg
090° 10kts
Gusts 20kts
VFR
Becoming 8:00 PM AKDT - 10:00 AM AKDT
Sky Clear
6sm
29.56"Hg
VRB° 6kts
VFR
Becoming 10:00 AM AKDT - 3:00 PM AKDT
Broken 9,000'
6sm
29.47"Hg
110° 15kts
Gusts 25kts
VFR
Becoming 3:00 PM AKDT - 8:00 PM AKDT
Overcast 11,000'
6sm
29.38"Hg
100° 10kts
Gusts 20kts
TAF PABI 312200Z 3122/0204 09010G20KT 9999 SCT090 QNH2974INS
   BECMG 0104/0105 VRB06KT 9999 SKC QNH2955INS
   BECMG 0118/0119 11015G25KT 9999 BKN090 QNH2947INS
   BECMG 0123/0124 10010G20KT 9999 OVC110 QNH2937INS TX19/0122Z TN07/0113Z LAST NO AMDS AFT 3122 NEXT 0314
CHP
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-2200
JASON LUDINGTON
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-5280
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
FAI
--
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
4
0
0
0
0
0
None
None
None
None
None

Runway 09/27

3669 ft. x 80 ft.
GRAVEL
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 113°293°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 65° 29' 16"N 65° 29' 02"N
Longitude 144° 37' 22"W 144° 36' 02"W
Elevation 829' 870'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RETARDANT ACFT MAY BE OPERATING FROM ARPT IN SUMMER.
A110-2NO SNOW REMOVAL.
A110-3RWY NOT MAINTAINED & CONDITION NOT MONITORED, RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-5SUAIS - 125.3/126.3(1-800-758-8723).
A110-6WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
CIRCLE HOT SPRINGS (IATA: CHP) is a public airport located in CIRCLE HOT SPRINGS, AK.
