BOTTINEAU MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D09
BOTTINEAU MUNI
PublicPUB

1 miles E of BOTTINEAU, ND
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
48° 49' 50"N 100° 25' 02"W
1680' MSL
2680' MSL
08E
100LL
GRAND FORKS (GFK)
TWIN CITIES
MINNEAPOLIS (ZMP)
11/28/24-12/26/24
KD09 LIFR
6:15 AM CST
Freezing Fog
Overcast 200'
0.25sm
10°F
10°F
30.06"Hg
120° 6kts
AO2
KD09 231215Z AUTO 12006KT 1/4SM FZFG OVC002 M12/M12 A3006 RMK AO2

D09 FBOs

Botno Aircraft Services
UNICOM: 122.8
Phone: (701) 228-5265
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/7
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.00
Full Serve 6.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
701-228-2688
118.25

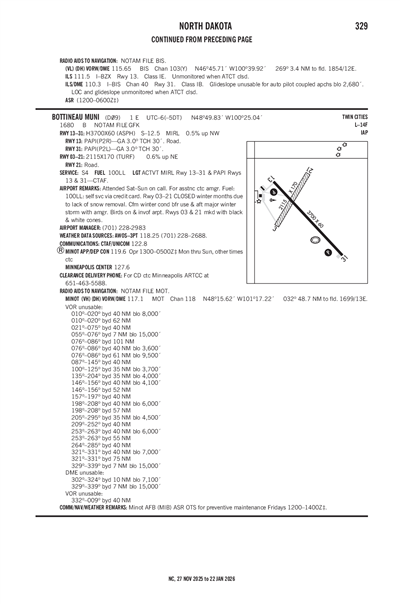

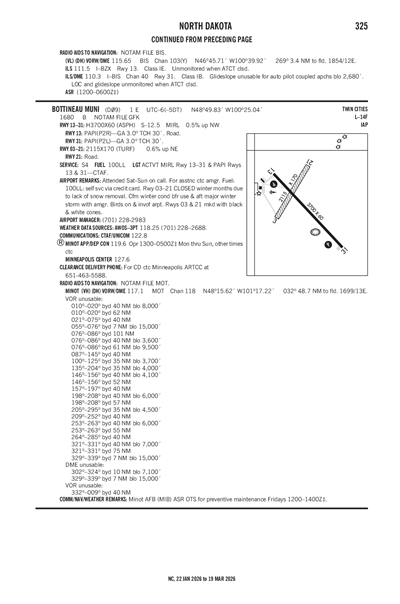

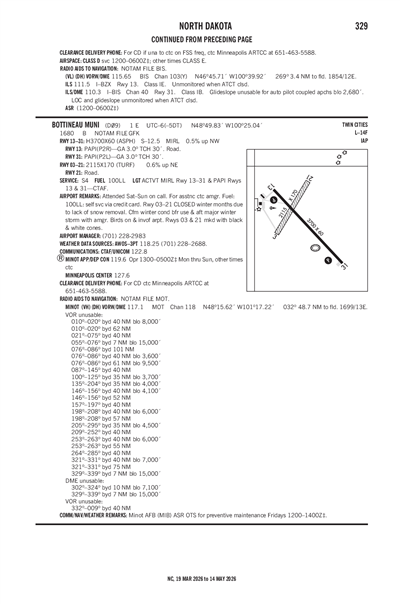

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMIB (45nm)
Mon, 12/23 5:18 AM CST
Mon, 12/23 4:00 AM CST - Tue, 12/24 9:00 AM CST
LIFR
4:00 AM CST - 9:00 AM CST
Light Freezing Drizzle and Mist
Overcast 500'
0.62sm
30.00"Hg
VRB° 6kts
Moderate, In Precipitation (Clear): 14,000-3,000'
LIFR
Temporary 5:00 AM CST - 9:00 AM CST
Freezing Fog
Obscured
0.5sm
Calm
IFR
Becoming 9:00 AM CST - 11:00 AM CST
Mist
Broken 1,000'
1.99sm
30.03"Hg
140° 6kts
Moderate (Mixed): 1,000-3,000'
IFR
Becoming 11:00 AM CST - 1:00 PM CST
Mist
Broken 2,500'
2.98sm
30.09"Hg
140° 6kts
Moderate (Mixed): 2,500-4,500'
VFR
Becoming 1:00 PM CST - 7:00 PM CST
Scattered 2,500'
6sm
30.06"Hg
140° 6kts
VFR
Becoming 7:00 PM CST - 2:00 AM CST
Scattered 5,000'
6sm
30.00"Hg
140° 6kts
VFR
Becoming 2:00 AM CST - 9:00 AM CST
Broken 10,000'
6sm
30.00"Hg
200° 9kts
TAF AMD KMIB 231118Z 2310/2415 VRB06KT 1000 -FZDZ BR OVC005 660003 QNH2999INS
   TEMPO 2311/2315 0800 FZFG VV004
   BECMG 2315/2316 14006KT 3200 BR BKN010 640102 QNH3004INS
   BECMG 2317/2318 14006KT 4800 BR BKN025 640252 QNH3008INS
   BECMG 2319/2320 14006KT 9999 NSW SCT025 QNH3006INS
   BECMG 2401/2402 14006KT 9999 SCT050 QNH3001INS
   BECMG 2408/2409 20009KT 9999 BKN100 QNH3000INS TXM04/2322Z TNM12/2312Z
D09
FDC
11/4/241911Z !FDC 4/8737 D09 IAP BOTTINEAU MUNI, BOTTINEAU, ND.
RNAV (GPS) RWY 31, AMDT 1...
CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVALS AT BALTA ON
T331 EASTBOUND.
THIS IS RNAV (GPS) RWY 31, AMDT 1A. 2411041911-PERM
No
SAT-SUN ON CALL
FOR ASSTNC CTC AMGR.
BOTTINEAU AIRPORT AUTH
9770 13TH AVE NE
BOTTINEAU, ND 58318
Phone: (701) 228-2983
LEO JOSTAD
9770 13TH AVE NE
BOTTINEAU, ND 58318
Phone: (701) 228-2983
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT MIRL RWY 13/31 & PAPI RWYS 13 & 31 - CTAF
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction

Runway 03/21

2115 ft. x 170 ft.
TURF
Good
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 35°215°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition
Latitude 48° 49' 45"N 48° 50' 02"N
Longitude 100° 25' 18"W 100° 24' 60"W
Elevation 1,668' 1,680'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

3700 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 48° 50' 00"N 48° 49' 34"N
Longitude 100° 25' 18"W 100° 24' 39"W
Elevation 1,679' 1,661'
Threshold Crossing Height 30 ft. AGL 30 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2CFM WINTER COND BFR USE & AFT MAJOR WINTER STORM WITH AMGR.
A110-3RWY 03/21 CLSD WINTER MONTHS DUE TO LACK OF SNOW REMOVAL.
A110-5BIRDS ON & INVOF ARPT.
A110-6FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
BOTTINEAU MUNI (IATA: D09) is a public airport located in BOTTINEAU, ND.
