D23
ARCADE TRI-COUNTY
PublicPUB

2 miles N of ARCADE, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 34' 00"N 78° 25' 34"W
1745' MSL
2745' MSL
10W
None Listed
BUFFALO (BUF)
DETROIT
CLEVELAND (ZOB)
5/16/24-6/13/24
KOLE (20nm) VFR
6:15 PM EDT
Scattered 5,500'
10sm
68°F
45°F
30.03"Hg
Calm
AO2 LTG DSNT NE
KOLE 122215Z AUTO 00000KT 10SM SCT055 20/07 A3003 RMK AO2 LTG DSNT NE
Add Your Business

D23 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

No communication frequencies available for this airport.

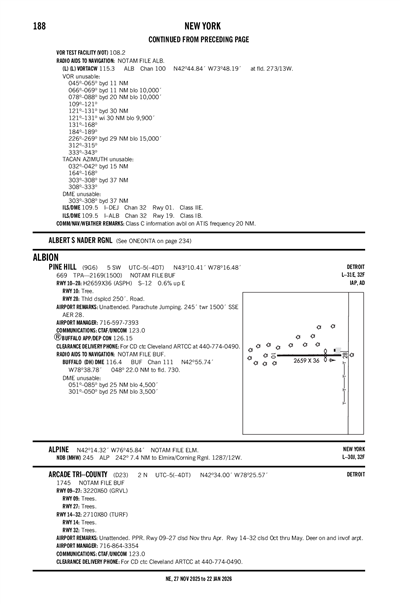

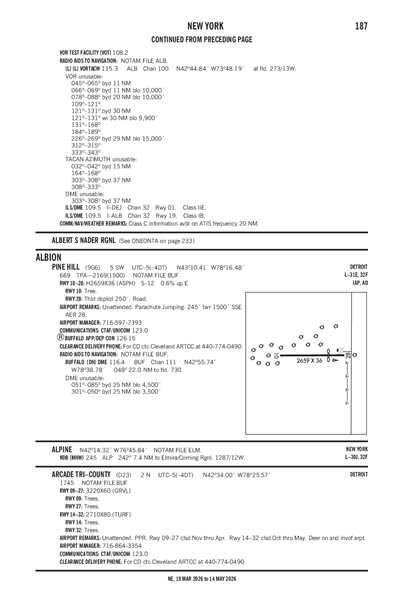

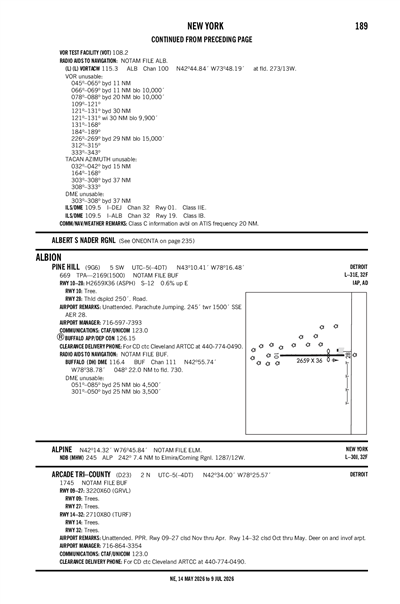

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KBUF (26nm)
Wed, 6/12 1:25 PM EDT
Wed, 6/12 2:00 PM EDT - Thu, 6/13 2:00 PM EDT
VFR
2:00 PM EDT - 7:00 PM EDT
Scattered 25,000'
6sm
230° 10kts
VFR
7:00 PM EDT - 12:00 AM EDT
Sky Clear
6sm
210° 5kts
VFR
12:00 AM EDT - 8:00 AM EDT
Broken 25,000'
6sm
170° 5kts
VFR
8:00 AM EDT - 12:00 PM EDT
Overcast 25,000'
6sm
210° 12kts
Gusts 18kts
VFR
12:00 PM EDT - 2:00 PM EDT
Overcast 25,000'
Scattered 5,000'
6sm
230° 15kts
Gusts 25kts
KBUF 121725Z 1218/1318 23010KT P6SM SCT250
   FM122300 21005KT P6SM SKC
   FM130400 17005KT P6SM BKN250
   FM131200 21012G18KT P6SM OVC250
   FM131600 23015G25KT P6SM SCT050 OVC250
D23
Domestic
6/12/241903Z !BUF 06/118 D23 OBST TOWER LGT (ASR 1004123) 423725.10N0781720.30W (7.0NM ENE D23) 2560.0FT (517.1FT AGL) U/S 2406121903-2407120001
6/11/240747Z !BUF 06/098 D23 OBST WIND TURBINE LGT (ASN 2018-WTE-11780-OE) 423200N0782041W (4.1NM ESE D23) 2205FT (262FT AGL) U/S 2406110747-2407260514
5/29/240233Z !BUF 05/234 D23 OBST TOWER LGT (ASR 1023818) 424306.00N0782259.00W (9.4NM NNE D23) 2034.8FT (319.9FT AGL) U/S 2405290233-2409260233
No
UNATNDD
ARMSTRONG ENTERPRISES, LLC
P.O. BOX 144
ARCADE, NY 14009
Phone: 716-864-0062
TERRY ARMSTRONG
6715 NORTHWOODS RD, P. O. BOX 144
ARCADE, NY 14009
Phone: 716-864-3354
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
BUF
--
ACTVT MIRL RWY 09/27 - 123.0.
N/A
Yes
No
No
Hanger, Tie-Down
No
2
0
0
0
0
0
None
None
None
None
None

Runway 09/27

3220 ft. x 60 ft.
GRAVEL
Fair
NONE
NSTD

--
--
--
--
  Runway 09 Runway 27
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

2710 ft. x 80 ft.
TURF
Good
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2ULTRALGT ACFT PROHIBITED.
A110-3ARPT CLSD WINTER MONTHS - CALL MGR
A110-4FOR CD CTC CLEVELAND ARTCC AT 440-774-0490.
A110-5DEER ON AND INVOF ARPT.
A110-6PPR.
ARCADE TRI-COUNTY (IATA: D23) is a public airport located in ARCADE, NY.
