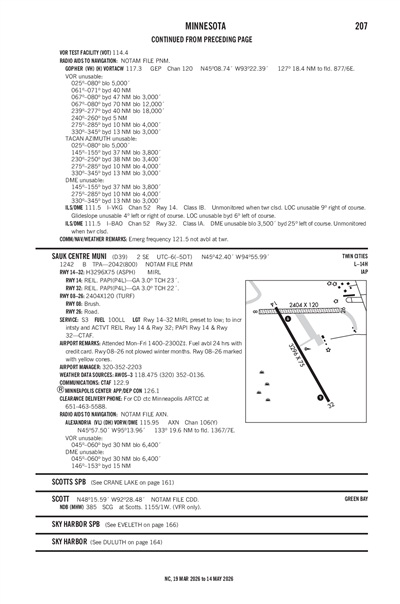

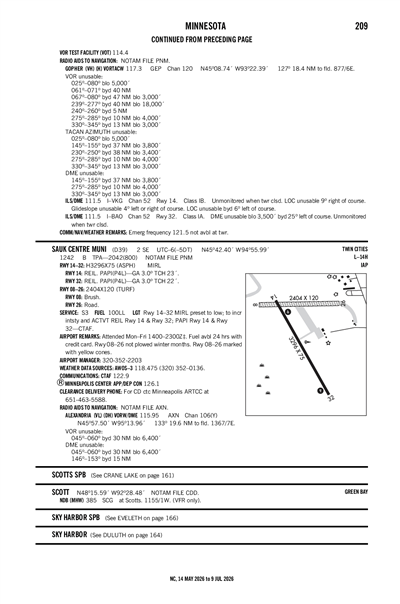

SAUK CENTRE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D39
SAUK CENTRE MUNI
PublicPUB

2 miles SE of SAUK CENTRE, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 42' 24"N 94° 55' 60"W
1242' MSL
2042' MSL
03E
100LL
PRINCETON (PNM)
TWIN CITIES
MINNEAPOLIS (ZMP)
11/28/24-12/26/24
KAXN (22nm) VFR
5:53 AM CST
Few 8,000'
7sm
23°F
20°F
29.98"Hg
340° 5kts
AO2 SLP176 T10501067 11033 21050 53013
KAXN 231153Z AUTO 34005KT 7SM FEW080 M05/M07 A2998 RMK AO2 SLP176 T10501067 11033 21050 53013
Add Your Business

D39 FBOs

Promote Listing
Sauk Centre Municipal Airport
UNICOM: 122.9
Phone: (320) 352-2203
Other: (320) 333-7566
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.85
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
320-352-0136
 118.475

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAXN (22nm)
Mon, 12/23 5:20 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 11:00 AM CST
Overcast 10,000'
Scattered 1,500'
6sm
340° 5kts
IFR
11:00 AM CST - 7:00 PM CST
Broken 800'
6sm
350° 7kts
IFR
7:00 PM CST - 10:00 PM CST
Broken 500'
6sm
Calm
LIFR
10:00 PM CST - 6:00 AM CST
Mist
Overcast 300'
2sm
Calm
KAXN 231120Z 2312/2412 34005KT P6SM SCT015 OVC100
   FM231700 35007KT P6SM BKN008
   FM240100 00000KT P6SM BKN005
   FM240400 00000KT 2SM BR OVC003
D39
Domestic
12/17/241201Z !PNM 12/113 D39 OBST TOWER LGT (ASR 1213778) 453759.60N0943515.00W (15.2NM ESE D39) 1501.0FT (259.8FT AGL) U/S 2412171201-2504161201
12/6/240042Z !PNM 12/045 D39 OBST TOWER LGT (ASR 1200119) 454807.40N0950401.00W (8.0NM NW D39) 1751.0FT (414.0FT AGL) U/S 2412060042-2504050042
12/5/241516Z !PNM 12/044 D39 OBST WIND TURBINE LGT (ASN 2014-WTE-4293-OE) 454056N0950116W (4.0NM WSW D39) 1830FT (499FT AGL) U/S 2412051516-2504012359
FDC
5/16/241454Z !FDC 4/5213 D39 IAP SAUK CENTRE MUNI, SAUK CENTRE, MN.
RNAV (GPS) RWY 14, ORIG-B...
RNAV (GPS) RWY 32, AMDT 1D...
PROCEDURE NA AT NIGHT..
2405161454-2605161454EST
No
MON-FRI 0800-1700
CITY OF SAUK CENTRE
320 OAK ST. S
SAUK CENTRE, MN 56378
Phone: 320-352-2203
VICKI WILLER
320 OAK ST. S
SAUK CENTRE, MN 56378
Phone: 320-352-2203
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
PNM
--
RWY 14/32 MIRL PRESET TO LOW; TO INCR INTSTY AND ACTVT REIL RWY 14 & RWY 32; PAPI RWY 14 & RWY 32 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
0
0
0
0
0
0
Major
Minor
None
None
Crop Dusting
Aircraft Sales

Runway 08/26

2404 ft. x 120 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading 91°271°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 42' 31"N 45° 42' 31"N
Longitude 94° 56' 17"W 94° 55' 43"W
Elevation 1,239' 1,242'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

3296 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 14 Runway 32
True Heading 151°331°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 42' 32"N 45° 42' 04"N
Longitude 94° 56' 11"W 94° 55' 48"W
Elevation 1,240' 1,240'
Threshold Crossing Height 23 ft. AGL 22 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
SAUK CENTRE MUNI (IATA: D39) is a public airport located in SAUK CENTRE, MN.
