D50
CROSBY MUNI
Public
PUB
1 miles N of CROSBY, ND
View on
Map
Status
Operational
Coordinates
48° 55' 42"N
103° 17' 51"W
Elevation
1950' MSL
Pattern Alt
2950' MSL
Mag Variation
11E
Fuel
100LL
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
11/28/24-12/26/24
KD50
LIFR
6:35 AM CST
RAW
Freezing Fog
Overcast 200'
Viz
0.25sm
Temp
19°F
Dew
19°F
Pres
30.00"Hg
Wind
090° 4kts
RMK
AO2
KD50 231235Z AUTO 09004KT M1/4SM FZFG OVC002 M07/M07 A3000 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
D50 FBOs
Promote Listing
Crosby Municipal Airport
Phone: (701) 965-6512
0 Reviews
(
Read
|
Sign In To Write
)
Independent
As of
12/17
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
6.50
Full Serve
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
AWOS-3
AWOS-3
701-965-6732
118.025

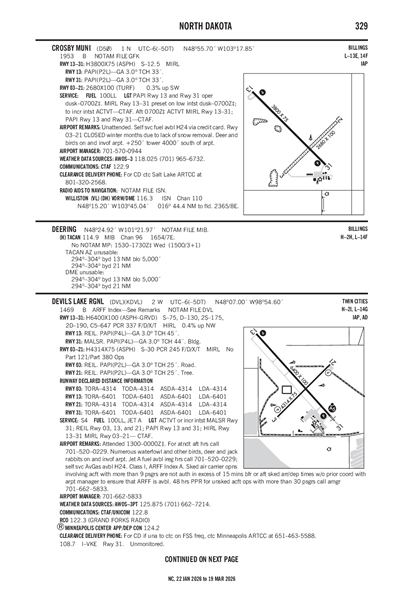

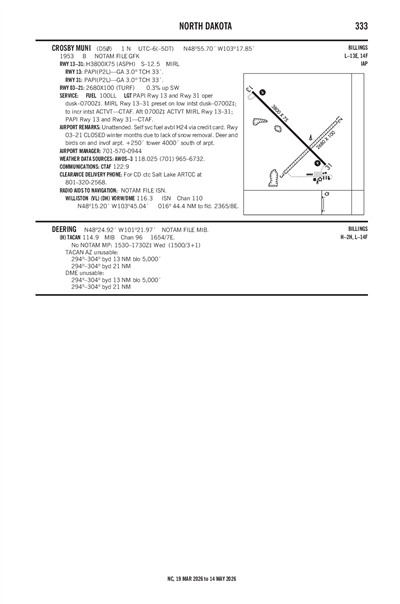

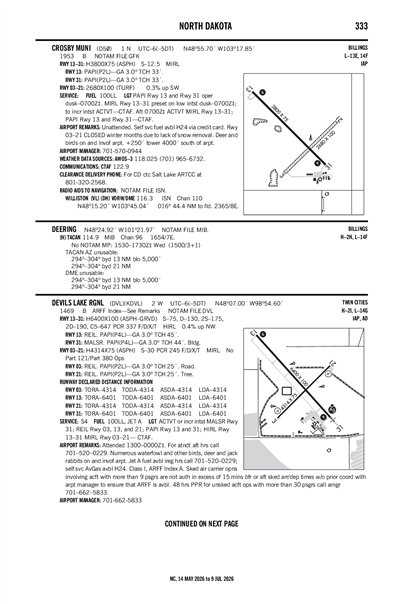

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 30
Terminal Area Forecast
CYEN (21nm)
RAW
Reported
Mon, 12/23 5:40 AM CST
Valid
Mon, 12/23 6:00 AM CST - Mon, 12/23 6:00 PM CST
LIFR
6:00 AM CST - 12:00 PM CST
Freezing Fog
Obscured
Viz
0.25sm
Wind
090° 9kts
IFR
Temporary
6:00 AM CST - 12:00 PM CST
Mist
Overcast 600'
Viz
1.5sm
Wind
Calm
MVFR
12:00 PM CST - 3:00 PM CST
Mist
Broken 1,000'
Scattered 500'
Viz
5sm
Wind
160° 9kts
IFR
Temporary
12:00 PM CST - 3:00 PM CST
Mist
Overcast 500'
Viz
1.5sm
Wind
Calm
VFR
3:00 PM CST - 6:00 PM CST
Scattered 500'
Viz
6sm
Wind
210° 10kts
TAF CYEN 231140Z 2312/2324 09009KT 1/4SM FZFG VV003
TEMPO 2312/2318 1 1/2SM BR OVC006
FM231800 16009KT 5SM BR SCT005 BKN010
TEMPO 2318/2321 1 1/2SM BR OVC005
FM232100 21010KT P6SM SCT005 RMK FCST BASED ON AUTO OBS. NXT FCST BY 231800Z
D50
Domestic
9/5/24
1405Z
!GFK 09/030 D50 RWY 12/30 CHANGED TO RWY 13/31 2409051405-PERM
FDC
3/4/24
1642Z
!FDC 4/2420 D50 ODP CROSBY MUNI, CROSBY, ND.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
CHANGE ALL REFERENCES TO RWY 30 TO RWY 31.
CHANGE ALL REFERENCES TO RWY 12 TO RWY 13.
ALL OTHER DATA REMAINS AS PUBLISHED. 2403041642-2603041642EST
3/1/24
1810Z
!FDC 4/1957 D50 IAP CROSBY MUNI, CROSBY, ND.
RNAV (GPS) RWY 30, ORIG-B...
CHANGE ALL REFERENCES TO RWY 30 TO RWY 31.
CHANGE ALL REFERENCES TO RWY 12 TO RWY 13.
2403011810-2603011810EST
ATC Tower
No
Attendance
UNATNDD
Owner
CROSBY ARPT AUTH
PO BOX 882
CROSBY, ND 58730
Phone: (701) 570-0944
Manager
MIKE MELBY
PO BOX 154
CROSBY, ND 58730
Phone: 701-570-0944
FSS
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
NOTAM
GFK
Light Schedule
--
Lights
PAPI RWY 12 & 30 OPER DUSK-0100. MIRL RWY 12/30 PRESET ON LOW INTST DUSK-0100; TO INCR INTST ACTVT - CTAF. AFT 0100 ACTVT MIRL RWY 12/30; PAPI RWY 12 & 30 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 03/21
Dimensions
2680 ft. x 100 ft.
Surface Type
TURF
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 03
Runway 21
True Heading
45°
225°
Traffic Pattern
Left
Left
Markings
Markings Condition
Latitude
48° 55' 28"N
48° 55' 47"N
Longitude
103° 17' 59"W
103° 17' 30"W
Elevation
1,949'
1,942'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
Runway 12/30
Dimensions
3800 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 12
Runway 30
True Heading
134°
314°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
48° 55' 58"N
48° 55' 32"N
Longitude
103° 18' 16"W
103° 17' 36"W
Elevation
1,950'
1,944'
Threshold Crossing Height
22 ft. AGL
23 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-2
+250' TOWER 4000' SOUTH OF AIRPORT.
A110-3
DEER AND BIRDS ON & INVOF ARPT.
A110-4
FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
CROSBY MUNI (IATA: D50) is a public airport located in CROSBY, ND.
