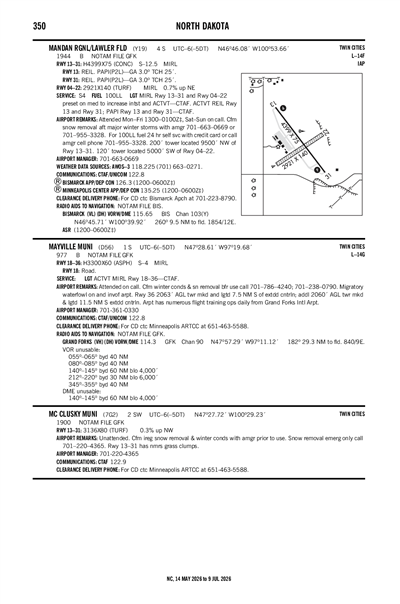

MAYVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

D56
MAYVILLE MUNI
PublicPUB

1 miles S of MAYVILLE, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 28' 37"N 97° 19' 41"W
977' MSL
1977' MSL
06E
None Listed
GRAND FORKS (GFK)
TWIN CITIES
MINNEAPOLIS (ZMP)
11/28/24-12/26/24
KRDR (28nm) LIFR
5:55 AM CST
Mist
Overcast 200'
4sm
17°F
14°F
30.11"Hg
VRB° 6kts
AO2A SLP220 T10851100 4/005 11082 21114 52018 $
KRDR 231155Z VRB06KT 4SM BR OVC002 M08/M10 A3011 RMK AO2A SLP220 T10851100 4/005 11082 21114 52018 $
Add Your Business

D56 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KRDR (28nm)
Mon, 12/23 4:00 AM CST
Mon, 12/23 4:00 AM CST - Tue, 12/24 10:00 AM CST
LIFR
4:00 AM CST - 10:00 AM CST
Mist
Overcast 200'
2.98sm
30.09"Hg
VRB° 6kts
Light, In Cloud (Rime): 200-3,200'
MVFR
Becoming 10:00 AM CST - 5:00 PM CST
Overcast 1,000'
6sm
30.21"Hg
VRB° 6kts
Light, In Cloud (Rime): 1,000-4,000'
IFR
Becoming 5:00 PM CST - 12:00 AM CST
Mist
Overcast 500'
4.97sm
30.24"Hg
VRB° 6kts
Light, In Cloud (Rime): 500-2,500'
MVFR
Becoming 12:00 AM CST - 10:00 AM CST
Overcast 1,000'
6sm
30.18"Hg
VRB° 6kts
Light, In Cloud (Rime): 1,000-4,000'
TAF KRDR 231000Z 2310/2416 VRB06KT 4800 BR OVC002 620023 QNH3010INS
   BECMG 2316/2317 VRB06KT 9999 NSW OVC010 620103 QNH3021INS
   BECMG 2323/2324 VRB06KT 8000 BR OVC005 620052 QNH3023INS
   BECMG 2406/2407 VRB06KT 9999 NSW OVC010 620103 QNH3017INS TXM08/2310Z TNM12/2323Z
D56
Domestic
11/4/241613Z !GFK 11/035 D56 OBST TOWER LGT (ASR 1038856) 473556.50N0971345.60W (8.4NM NNE D56) 1367.8FT (379.9FT AGL) U/S 2411041613-2503041613
No
ON CALL
CITY OF MAYVILLE
P O BOX 219
MAYVILLE, ND 58257
Phone: 701-786-4240
LANCE FUGLEBERG
PO BOX 219
MAYVILLE, ND 58257
Phone: 701-361-0330
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT MIRL RWY 18/36 - CTAF.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 18/36

3300 ft. x 60 ft.
ASPH
Good
NONE
MED

4,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 47° 28' 53"N 47° 28' 20"N
Longitude 97° 19' 41"W 97° 19' 41"W
Elevation 977' 977'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 36 2063 FT AGL TWR MKD & LGTD 7.5 NM S OF EXTDD CNTRLN; ADDL 2060 FT AGL TWR MKD & LGTD 11.5 NM S OF EXTDD CNTRLN.
A110-3ARPT HAS NUMEROUS FLIGHT TRAINING OPNS DAILY FROM GRAND FORKS INTL ARPT.
A110-4CFM WINTER CONDS & SN REMOVAL BFR USE CALL 701-786-4240; 701-238-0790.
A110-5MIGRATORY WATERFOWL ON & INVOF ARPT.
A110-7FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MAYVILLE MUNI (IATA: D56) is a public airport located in MAYVILLE, ND.
