E42
MAJOR SAMUEL B CORNELIUS FLD
Public
PUB
1 miles N of SPEARMAN, TX
View on
Map
Status
Operational
Coordinates
36° 13' 16"N
101° 11' 40"W
Elevation
3090' MSL
Pattern Alt
4090' MSL
Mag Variation
09E
Fuel
100LL
FSS
FORT WORTH (FTW)
Sectional
WICHITA
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
11/28/24-12/26/24
KE42
LIFR
6:15 AM CST
RAW
Overcast 400'
Viz
10sm
Temp
32°F
Dew
28°F
Pres
29.99"Hg
Wind
320° 5kts
RMK
AO2 T10021020
KE42 231215Z AUTO 32005KT 10SM OVC004 00/M02 A2999 RMK AO2 T10021020
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
E42 FBOs
Promote Listing
Cornelius Field
Phone: (806) 659-2524
0 Reviews
(
Read
|
Sign In To Write
)
As of
12/20
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
Full Serve
Fuel Notes
Prices include tax
Call ahead for availability and pricing of fuel.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
AWOS-3P
AWOS-3P
806-644-6824
118.925

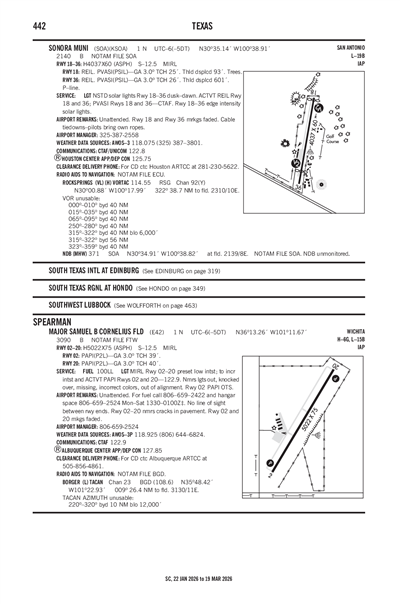

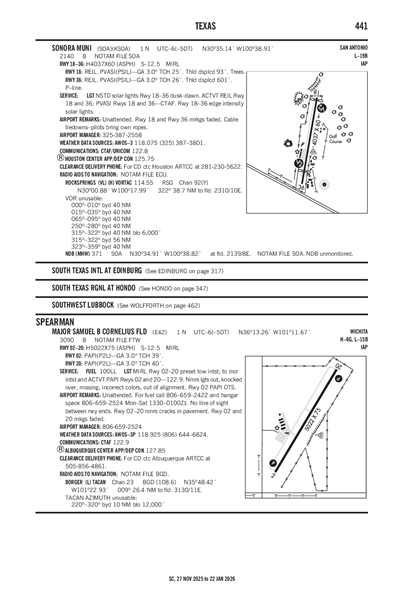

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 02
RNAV (GPS) RWY 20
Terminal Area Forecast
KGUY (32nm)
RAW
Reported
Mon, 12/23 5:20 AM CST
Valid
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 12:00 PM CST
Broken 23,000'
Viz
6sm
Wind
350° 6kts
VFR
12:00 PM CST - 11:00 PM CST
Broken 22,000'
Viz
6sm
Wind
020° 11kts
MVFR
11:00 PM CST - 5:00 AM CST
Broken 2,900'
Viz
6sm
Wind
VRB° 3kts
VFR
5:00 AM CST - 6:00 AM CST
Scattered 7,000'
Viz
6sm
Wind
VRB° 3kts
KGUY 231120Z 2312/2412 35006KT P6SM BKN230
FM231800 02011KT P6SM BKN220
FM240500 VRB03KT P6SM BKN029
FM241100 VRB03KT P6SM SCT070
E42
FDC
6/24/24
2045Z
!FDC 4/2778 E42 IAP MAJOR SAMUEL B CORNELIUS FLD, SPEARMAN, TX.
RNAV (GPS) RWY 2, ORIG...
RNAV (GPS) RWY 20, ORIG...
ALTERNATE MINIMUMS: STANDARD EXCEPT CAT C 800-2 1/4, NA WHEN
LOCAL WEATHER NOT AVAILABLE.
CHANGE NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED,
USE BORGER ALTIMETER SETTING.
2406242045-2606242045EST
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF SPEARMAN
PO BOX 37
SPEARMAN, TX 79081
Phone: 806-659-2524
Manager
JUSTIN PARKER
PO BOX 37
SPEARMAN, TX 79081
Phone: 806-659-2524
FSS
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
NOTAM
FTW
Light Schedule
--
Lights
MIRL RWY 02/20 PRESET LOW INTST; TO INCR INTST & ACTVT PAPI RWYS 02 & 20 - 122.9. NMRS LGTS OUT, KNOCKED OVER, MISSING, INCORRECT COLORS, OUT OF ALIGNMENT. CALL TO CHECK OPR STATUS.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 02/20
Dimensions
5022 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Poor
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 02
Runway 20
True Heading
29°
209°
Traffic Pattern
Markings
NPI
NPI
Markings Condition
POOR
POOR
Latitude
36° 12' 54"N
36° 13' 37"N
Longitude
101° 11' 55"W
101° 11' 25"W
Elevation
3,086'
3,090'
Threshold Crossing Height
39 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
NO LINE OF SIGHT BTN RWY ENDS.
A110-2
FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
MAJOR SAMUEL B CORNELIUS FLD (IATA: E42) is a public airport located in SPEARMAN, TX.
