CITY OF SLATON/LARRY T NEAL MEML - Airport Diagram

F49

CITY OF SLATON/LARRY T NEAL MEML

PublicPUB

2 miles N of SLATON, TX

View on Map

Status

Operational

Coordinates

33° 29' 07"N 101° 39' 42"W

Elevation

3126' MSL

Pattern Alt

4126' MSL

Mag Variation

06E

Fuel

JET A, 100LL

FSS

FORT WORTH (FTW)

Sectional

DALLAS-FT WORTH

ARTCC

FORT WORTH (ZFW)

Data Effective

2/20/25-3/20/25

KLBB (14nm) VFR

9:53 AM CDT RAW

Clear

Viz

10sm

Temp

40°F

Dew

32°F

Pres

30.23"Hg

Wind

300° 12kts

RMK

AO2 SLP237 T00440000 51012

KLBB 091453Z 30012KT 10SM CLR 04/00 A3023 RMK AO2 SLP237 T00440000 51012

Add Your Business

F49 FBOs

Promote Listing

Neal Aircraft

UNICOM: 123.0

Phone: (806) 828-5892

0 Reviews (Read | Sign In To Write)

Avfuel

As of 2/25	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.00		3.90
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 123.0 CTAF 123.0

No communication frequencies available for this airport.

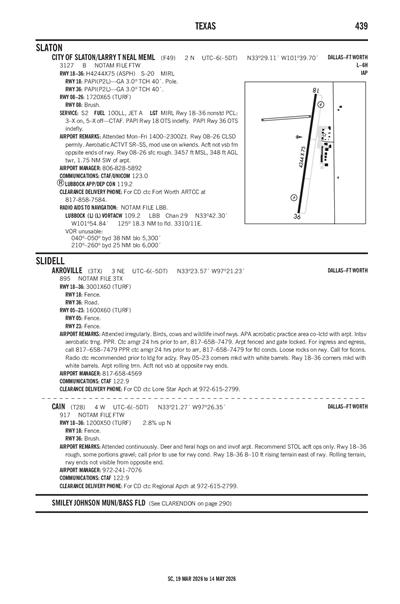

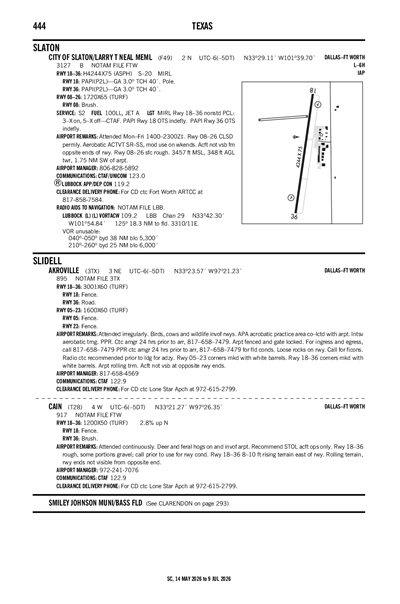

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KLBB (14nm)

RAW

Reported

Sun, 3/9 6:23 AM CDT

Valid

Sun, 3/9 7:00 AM CDT - Mon, 3/10 7:00 AM CDT

VFR

7:00 AM CDT - 8:00 AM CDT

Scattered 2,000'
Few 200'

Viz

6sm

Wind

300° 6kts

LIFR

Temporary 7:00 AM CDT - 8:00 AM CDT

Mist

Broken 200'

Viz

2sm

Wind

Calm

VFR

8:00 AM CDT - 7:00 AM CDT

Sky Clear

Viz

6sm

Wind

330° 11kts

KLBB 091123Z 0912/1012 30006KT P6SM FEW002 SCT020
TEMPO 0912/0913 2SM BR BKN002
FM091300 33011KT P6SM SKC

F49

Domestic
2/8/251112Z	!FTW 02/171 F49 OBST TOWER LGT (ASR 1212995) 334017.90N1013344.50W (12.2NM NNE F49) 3542.0FT (376.0FT AGL) U/S 2502081112-2506081112

ATC Tower

Attendance

MON-FRI 0800-1700

Owner

CITY OF SLATON
130 S 9TH ST
SLATON, TX 79364
Phone: 806-828-2000

Manager

ROBERT NEAL
12106 FM 400
SLATON, TX 79364
Phone: 806-828-5892

FSS

FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF

NOTAM

FTW

Light Schedule

Lights

MIRL RWY 18/36 NONSTD PCL: 3-X ON, 5-X OFF - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Pilot Instruction

Runway 08/26

Dimensions

1720 ft. x 65 ft.

Surface Type

TURF

Surface Cond

Poor

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 08	Runway 26
True Heading	86°	266°
Traffic Pattern
Markings	NONE	NONE
Markings Condition
Latitude	33° 29' 15"N	33° 29' 16"N
Longitude	101° 39' 58"W	101° 39' 38"W
Elevation	3,126'	3,122'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

Dimensions

4244 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

20,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	188°	8°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	33° 29' 24"N	33° 28' 43"N
Longitude	101° 39' 36"W	101° 39' 43"W
Elevation	3,123'	3,113'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	ACFT NOT VSB FM OPPSITE ENDS OF RWY.
A110-3	AEROBATIC ACTVT SR-SS, MOD USE ON WKENDS.
A110-4	FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-5	3457 FT MSL, 348 FT AGL TWR, 1.75 NM SW OF ARPT.
A110-6	RWY 08/26 CLSD PERMLY.

CITY OF SLATON/LARRY T NEAL MEML (IATA: F49) is a public airport located in SLATON, TX.
