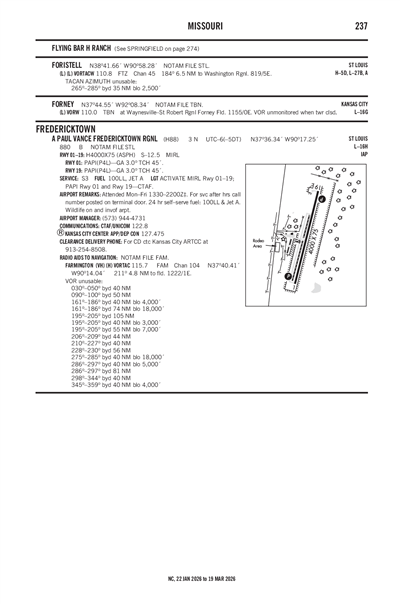

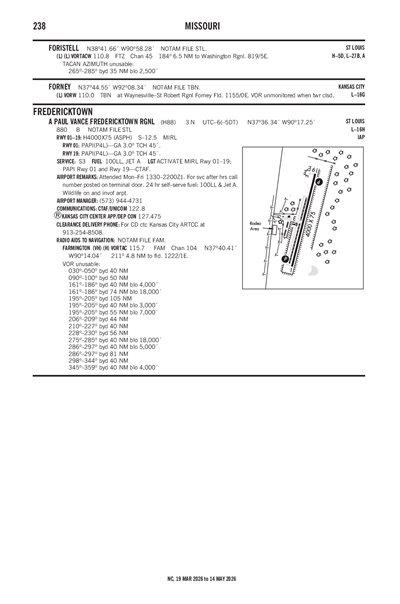

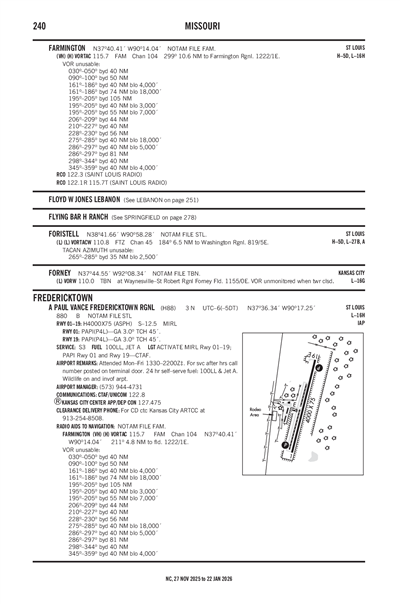

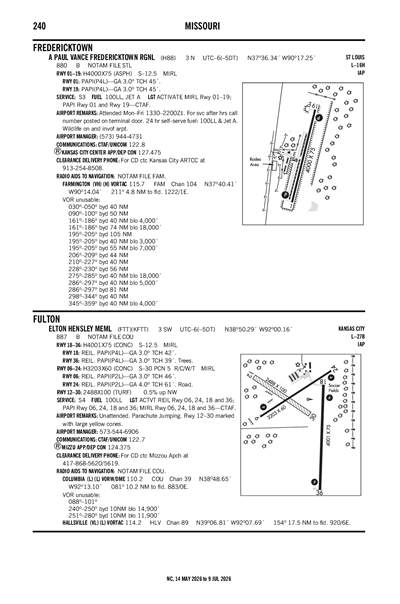

A PAUL VANCE FREDERICKTOWN RGNL - Airport Diagram

H88

A PAUL VANCE FREDERICKTOWN RGNL

PublicPUB

3 miles N of FREDERICKTOWN, MO

View on Map

Status

Operational

Coordinates

37° 36' 20"N 90° 17' 15"W

Elevation

880' MSL

Pattern Alt

1880' MSL

Mag Variation

00E

Fuel

JET A, 100LL

FSS

SAINT LOUIS (STL)

Sectional

ST LOUIS

ARTCC

KANSAS CITY (ZKC)

Data Effective

11/28/24-12/26/24

KFAM (12nm) VFR

5:56 AM CST RAW

Overcast 7,500'
Broken 5,000'
Broken 3,900'

Viz

10sm

Temp

39°F

Dew

27°F

Pres

30.21"Hg

Wind

190° 11kts

RMK

AO2 SLP247 T00391028 10044 20022 55006

KFAM 231156Z AUTO 19011KT 10SM BKN039 BKN050 OVC075 04/M03 A3021 RMK AO2 SLP247 T00391028 10044 20022 55006

Add Your Business

H88 FBOs

Promote Listing

Fredericktown Regional Airport

UNICOM: 122.8

Phone: (573) 783-4040

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 12/17	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.70		4.00
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KCGI (41nm)

RAW

Reported

Mon, 12/23 5:20 AM CST

Valid

Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST

VFR

6:00 AM CST - 4:00 PM CST

Overcast 6,000'

Viz

6sm

Wind

170° 7kts

VFR

4:00 PM CST - 8:00 PM CST

Broken 5,000'

Viz

6sm

Wind

200° 6kts

VFR

8:00 PM CST - 12:00 AM CST

Overcast 4,000'

Viz

6sm

Wind

200° 6kts

MVFR

12:00 AM CST - 6:00 AM CST

Light Rain

Overcast 3,000'

Viz

5sm

Wind

190° 3kts

KCGI 231120Z 2312/2412 17007KT P6SM OVC060
   FM232200 20006KT P6SM BKN050
   FM240200 20006KT P6SM OVC040
   FM240600 19003KT 5SM -RA OVC030

H88

Domestic
12/18/241635Z	!STL 12/289 H88 OBST TOWER LGT (ASR 1269073) 373417.80N0901654.70W (2.1NM S H88) 1054.1FT (241.1FT AGL) U/S 2412181635-2501182300
FDC
10/11/231446Z	!FDC 3/3794 H88 IAP A PAUL VANCE FREDERICKTOWN RGNL, FREDERICKTOWN, MO. VOR RWY 19, AMDT 1C... DISREGARD DESCENT ANGLE 2.91/TCH 40. PROFILE NOTE: VISUAL SEGMENT - OBSTACLES. NOTE: STRAIGHT-IN RWY 19 NA AT NIGHT, CIRCLING RWY 19 NA AT NIGHT. CHANGE NOTE TO READ: RWY 19 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA. 2310111446-2510111439EST

ATC Tower

Attendance

MON-FRI 0730-1600
FOR SVC AFT HRS CALL NUMBER POSTED ON TERMINAL DOOR.

Owner

CITY OF FREDERICKTOWN
PO BOX 549
FREDRICKTOWN, MO 63645
Phone: 573-783-3683

Manager

JOEL KEMP
PO BOX 549
FREDRICKTOWN, MO 63645
Phone: (573) 944-4731

FSS

SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF

NOTAM

STL

Light Schedule

Lights

ACTVT MIRL RY 01/19 & PAPI RYS 01 & 19 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Tie-Down

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 01/19

Dimensions

4000 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 01	Runway 19
True Heading	15°	195°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	37° 36' 01"N	37° 36' 39"N
Longitude	90° 17' 21"W	90° 17' 09"W
Elevation	875'	875'
Threshold Crossing Height	45 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	WILDLIFE ON & INVOF ARPT.
A110-2	24 HR SS FUEL - 100LL AND JET-A
A110-3	FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.

A PAUL VANCE FREDERICKTOWN RGNL (IATA: H88) is a public airport located in FREDERICKTOWN, MO.
