I40

RICHARD DOWNING

PublicPUB

3 miles N of COSHOCTON, OH

View on Map

Status

Operational

Coordinates

40° 18' 37"N 81° 51' 09"W

Elevation

979' MSL

Pattern Alt

1979' MSL

Mag Variation

07W

Fuel

JET A (FSII), 100LL

FSS

CLEVELAND (CLE)

Sectional

DETROIT

ARTCC

INDIANAPOLIS (ZID)

Data Effective

12/26/24-1/23/25

KI40 VFR

11:15 AM EST RAW

Clear

Viz

10sm

Temp

7°F

Dew

-8°F

Pres

30.48"Hg

Wind

190° 5kts

RMK

AO2

KI40 221615Z AUTO 19005KT 10SM CLR M14/M22 A3048 RMK AO2

Add Your Business

I40 FBOs

Promote Listing

Richard Downing Airport

UNICOM: 123.0

Phone: (740) 622-2252

0 Reviews (Read | Sign In To Write)

EPIC

As of 12/23/2024	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.82		4.97

Fuel Notes

Prices include tax
100LL and JET A with Prist (FSII) via fuel trucks.

Fuel Hours

Fuel hours are 9am to 5pm
7 Days a week.
No self service fuel pumps.

Your Information

Business

UNICOM 123.0 CTAF 123.0

AWOS-3

740-295-7370

118.875

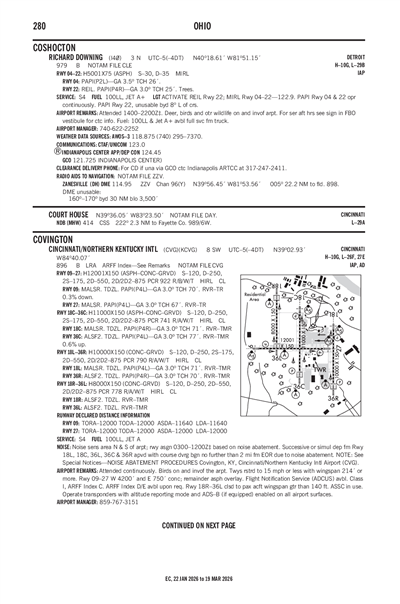

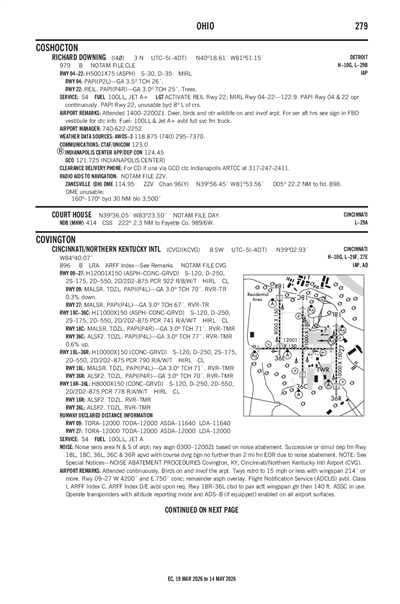

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KZZV (22nm)

RAW

Reported

Wed, 1/22 6:20 AM EST

Valid

Wed, 1/22 7:00 AM EST - Thu, 1/23 7:00 AM EST

VFR

7:00 AM EST - 1:00 PM EST

Sky Clear

Viz

6sm

Wind

Calm

VFR

1:00 PM EST - 7:00 AM EST

Broken 10,000'

Viz

6sm

Wind

180° 8kts

KZZV 221120Z 2212/2312 00000KT P6SM SKC
FM221800 18008KT P6SM BKN100

I40

Domestic
1/22/250619Z	!CLE 01/639 I40 OBST TOWER LGT (ASN 2023-AGL-15453-OE) 401046N0815800W (9.5NM SW I40) 1311FT (264FT AGL) U/S 2501220619-2503080616
12/20/240446Z	!CLE 12/718 I40 OBST TOWER LGT (ASN 2023-AGL-21654-OE) 402214N0814741W (4.5NM NE I40) 1461FT (260FT AGL) U/S 2412200446-2502030445
12/16/241506Z	!CLE 12/625 I40 OBST TOWER LGT (ASN 2020-AGL-850-OE) 401933N0820011W (6.9NM W I40) 1291FT (275FT AGL) U/S 2412161506-2501301506
11/19/242001Z	!CLE 11/425 I40 OBST TOWER LGT (ASR 1230562) 401614.10N0814923.90W (2.7NM SSE I40) 1369.1FT (315.0FT AGL) U/S 2411192001-2503192001
10/2/241559Z	!CLE 10/053 I40 OBST TOWER LGT (ASR 1211438) 402045.00N0820354.00W (9.9NM WNW I40) 1519.0FT (419.9FT AGL) U/S 2410021559-2501301559

ATC Tower

Attendance

0900-1700
FOR SER AFT HRS SEE SIGN IN FBO VESTIBULE FOR CTC INFO.

Owner

COSHOCTON CO RGNL ARPT AUTH
24569 AIRPORT RD
COSHOCTON, OH 43812-9219
Phone: 740-622-2252

Manager

MARTY DOBSON
24569 AIRPORT RD
COSHOCTON, OH 43812-9219
Phone: 740-622-2252

FSS

CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF

NOTAM

CLE

Light Schedule

Lights

ACTVT REIL RWY 22; MIRL RWY 04/22 - 122.9. PAPI RWY 04 & 22 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Ambulance
Pilot Instruction

Runway 04/22

Dimensions

5001 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

35,000lbs

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	37°	217°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	40° 18' 17"N	40° 18' 56"N
Longitude	81° 51' 28"W	81° 50' 49"W
Elevation	973'	979'
Threshold Crossing Height	26 ft. AGL	25 ft. AGL
Visual Glide Path Angle	3.5°	3°
Visual Slope Indicator	P2L	P4R
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	Yes

A110-1	DEER, BIRDS, & OTR WILDLIFE ON & INVOF ARPT.
A110-2	GCO AVBL ON FREQ 121.725 INDIANAPOLIS CENTER.
A110-3	FOR CD IF UNA VIA GCO CTC INDIANAPOLIS ARTCC AT 317-247-2411.

RICHARD DOWNING (IATA: I40) is a public airport located in COSHOCTON, OH.
