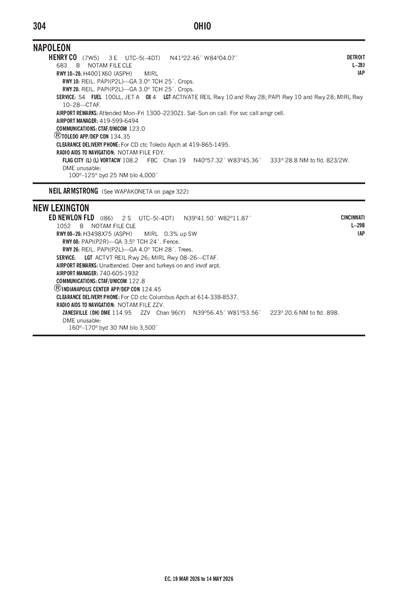

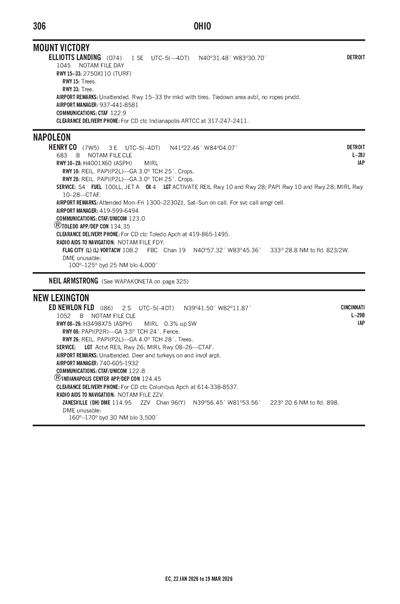

ED NEWLON FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

I86
ED NEWLON FLD
PublicPUB

2 miles S of NEW LEXINGTON, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 41' 30"N 82° 11' 52"W
1052' MSL
2052' MSL
07W
None Listed
CLEVELAND (CLE)
CINCINNATI
INDIANAPOLIS (ZID)
11/28/24-12/26/24
KZZV (21nm) VFR
6:53 AM EST
Few 12,000'
10sm
20°F
12°F
30.39"Hg
130° 4kts
AO2 SLP305 T10671111 11061 21089 56007
KZZV 231153Z AUTO 13004KT 10SM FEW120 M07/M11 A3039 RMK AO2 SLP305 T10671111 11061 21089 56007
Add Your Business

I86 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KZZV (21nm)
Mon, 12/23 6:20 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 11:00 AM EST
Broken 15,000'
6sm
VRB° 3kts
VFR
11:00 AM EST - 9:00 PM EST
Broken 15,000'
6sm
200° 10kts
VFR
9:00 PM EST - 12:00 AM EST
Overcast 4,000'
6sm
190° 10kts
MVFR
12:00 AM EST - 7:00 AM EST
Light Rain
Overcast 1,500'
5sm
210° 8kts
KZZV 231120Z 2312/2412 VRB03KT P6SM BKN150
   FM231600 20010KT P6SM BKN150
   FM240200 19010KT P6SM OVC040
   FM240500 21008KT 5SM -RA OVC015
I86
Domestic
12/21/241140Z !CLE 12/790 I86 OBST TOWER LGT (ASR 1247956) 395138.40N0821354.00W (10.3NM N I86) 1351.7FT (324.8FT AGL) U/S 2412211140-2504201140
12/18/241154Z !CLE 12/661 I86 OBST TOWER LGT (ASR 1015801) 393803.90N0822232.40W (8.9NM WSW I86) 1366.8FT (287.7FT AGL) U/S 2412181154-2501181200
12/5/240655Z !CLE 12/150 I86 OBST TOWER LGT (ASR 1266809) 393953.30N0821346.50W (2.2NM SW I86) 1381.2FT (303.1FT AGL) U/S 2412050655-2504040655
11/30/240526Z !CLE 11/681 I86 OBST TOWER LGT (ASR 1289633) 394402.60N0821219.40W (2.6NM N I86) 1319.9FT (256.9FT AGL) U/S 2411300526-2501140525
11/28/241134Z !CLE 11/627 I86 OBST TOWER LGT (ASR 1261588) 392857.70N0820411.90W (13.8NM SSE I86) 1184.7FT (299.9FT AGL) U/S 2411281134-2501121133
11/22/241508Z !CLE 11/529 I86 OBST TOWER LGT (ASN 2018-AGL-1321-OE) 394417N0820517W (5.8NM ENE I86) 1302FT (307FT AGL) U/S 2411221508-2501061507
11/20/242052Z !CLE 11/460 I86 OBST TOWER LGT (ASR 1247046) 393533.60N0821201.10W (6.0NM S I86) 1406.2FT (350.1FT AGL) U/S 2411202052-2501012359
11/19/240619Z !CLE 11/401 I86 OBST TOWER LGT (ASR 1272195) 395116.80N0820757.10W (10.3NM NNE I86) 1210.0FT (315.0FT AGL) U/S 2411190619-2503190619
10/10/241151Z !CLE 10/210 I86 RWY 26 PAPI U/S 2410101151-2504102111EST
10/10/241149Z !CLE 10/209 I86 RWY 08 PAPI U/S 2410101149-2504102111EST
FDC
12/20/242034Z !FDC 4/9922 I86 IAP ED NEWLON FLD, NEW LEXINGTON, OH.
VOR/DME RWY 26, AMDT 2A...
S-26 MDA 1660/HAT 613 ALL CATS, VIS CATS A/B 1, VIS CAT C 1 3/4. CIRCLING CAT A/B MDA 1660/HAA 608, CAT C MDA 1760/HAA 708. CIRCLING VIS CAT A/B 1, VIS CAT C 2.
2412202034-2612202034EST
9/14/231412Z !FDC 3/0117 I86 IAP PERRY COUNTY, NEW LEXINGTON, OH.
RNAV (GPS) RWY 26, ORIG-B...
APT ELEV 1052. LNAV CAT C VIS 1/5/8. CIRCLING CAT A AND B HAA 568. CIRCLING CAT C 1760 MDA/708 HAA; VIS CAT C 2.
2309141412-2509141411EST
8/22/231623Z !FDC 3/9177 I86 IAP PERRY COUNTY, NEW LEXINGTON, OH.
RNAV (GPS) RWY 26, ORIG-B...
MSA FROM RW26 25 NM: MINIMUM ALTITUDE 2800.
2308221623-2508221623EST
No
UNATNDD
PERRY COUNTY ARPT AUTH
COURTHOUSE, 105 N MAIN ST
NEW LEXINGTON, OH 43764-1262
Phone: 330-687-2160
LAWRENCE NASH
1870 AIRPORT RD
NEW LEXINGTON, OH 43764-9681
Phone: 740-605-1932
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
ACTVT REIL RWY 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 08/26

3498 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 08 Runway 26
True Heading 72°252°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 41' 24"N 39° 41' 35"N
Longitude 82° 12' 13"W 82° 11' 31"W
Elevation 1,052' 1,042'
Threshold Crossing Height 24 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3.5° 4°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1DEER & TURKEYS ON & INVOF ARPT.
A110-4FOR CD CTC COLUMBUS APCH AT 614-338-8537.
ED NEWLON FLD (IATA: I86) is a public airport located in NEW LEXINGTON, OH.
