VINLAND VALLEY AERODROME - Airport Diagram

K64

VINLAND VALLEY AERODROME

PublicPUB

3 miles N of BALDWIN CITY, KS

View on Map

Status

Operational

Coordinates

38° 50' 10"N 95° 10' 55"W

Elevation

890' MSL

Pattern Alt

1890' MSL

Mag Variation

05E

Fuel

100LL

FSS

WICHITA (ICT)

Sectional

KANSAS CITY

ARTCC

KANSAS CITY (ZKC)

Data Effective

5/16/24-6/13/24

KLWC (10nm) VFR

8:52 PM CDT RAW

Light Rain

Overcast 11,000'
Broken 7,000'

Viz

9sm

Temp

65°F

Dew

63°F

Pres

29.99"Hg

Wind

340° 3kts

RMK

AO1 RAB22 SLP151 P0000 T01830172

KLWC 010152Z AUTO 34003KT 9SM -RA BKN070 OVC110 18/17 A2999 RMK AO1 RAB22 SLP151 P0000 T01830172

Add Your Business

K64 FBOs

Promote Listing

Vinland Valley Aerodrome

Phone: (785) 594-2741

0 Reviews (Read | Sign In To Write)

Other

As of 5/24	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.98
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 122.9

No communication frequencies available for this airport.

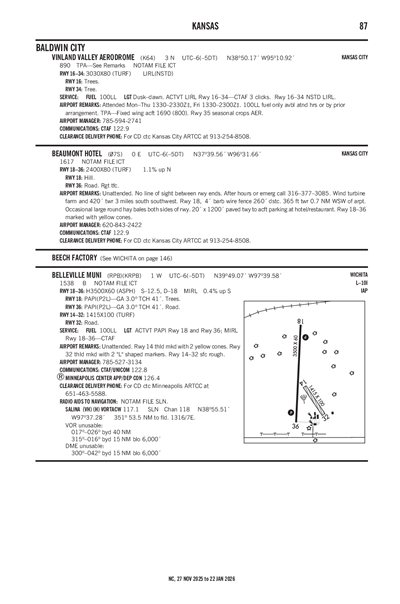

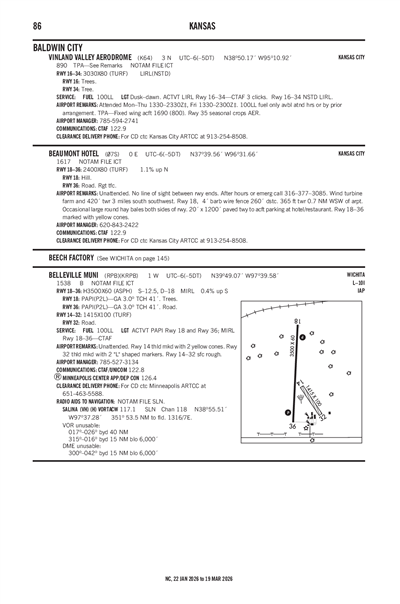

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

No Documents

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KIXD (14nm)

RAW

Reported

Fri, 5/31 6:20 PM CDT

Valid

Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT

VFR

7:00 PM CDT - 9:00 PM CDT

Light Rain

Overcast 5,000'

Viz

6sm

Wind

100° 7kts

MVFR

9:00 PM CDT - 2:00 AM CDT

Mist and Showers in vicinity

Overcast 1,200'

Viz

5sm

Wind

VRB° 5kts

IFR

2:00 AM CDT - 9:00 AM CDT

Mist

Overcast 800'

Viz

1sm

Wind

VRB° 4kts

LIFR

Temporary 4:00 AM CDT - 8:00 AM CDT

Fog

Overcast 300'

Viz

0.5sm

Wind

Calm

MVFR

9:00 AM CDT - 11:00 AM CDT

Overcast 1,500'

Viz

6sm

Wind

330° 6kts

MVFR

11:00 AM CDT - 1:00 PM CDT

Overcast 2,500'

Viz

6sm

Wind

330° 6kts

VFR

1:00 PM CDT - 7:00 PM CDT

Broken 5,000'

Viz

6sm

Wind

320° 6kts

KIXD 312320Z 0100/0124 10007KT P6SM -RA OVC050
   FM010200 VRB05KT 5SM BR VCSH OVC012
   FM010700 VRB04KT 1SM BR OVC008
   TEMPO 0109/0113 1/2SM FG OVC003
   FM011400 33006KT P6SM OVC015
   FM011600 33006KT P6SM OVC025
   FM011800 32006KT P6SM BKN050

K64

No NOTAM Available

ATC Tower

Attendance

MON-THURS 0730-1730
ALL FRIDAY 0730-1700

Owner

K64 LLC
696 E. 1700 RD.
BALDWIN CITY, KS 66006
Phone: 785-594-2741

Manager

DAVID MCFARLANE
696 E. 1700 RD
BALDWIN CITY, KS 66006
Phone: 785-594-2741

FSS

WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF

NOTAM

ICT

Light Schedule

Lights

DUSK-DAWN. ACTVT LIRL RY 16/34 - CTAF 3 CLICKS

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Landing Fee

Parking

Tie-Down

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental

Runway 16/34

Dimensions

3030 ft. x 80 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

NSTD

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 16	Runway 34
True Heading	Not Listed	Not Listed
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	N/A	N/A
Longitude	N/A	N/A
Elevation	--	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	TALL TREES L SIDE AER 16.
A110-4	PATTERN ALTITUDE: FIXED WING AIRCRAFT: 1690 MSL.
A110-5	FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.

VINLAND VALLEY AERODROME (IATA: K64) is a public airport located in BALDWIN CITY, KS.
