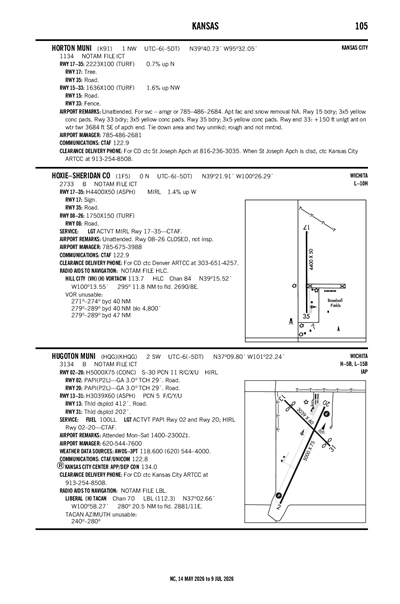

HORTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

K91
HORTON MUNI
PublicPUB

1 miles NW of HORTON, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 40' 44"N 95° 32' 03"W
1134' MSL
2134' MSL
06E
None Listed
WICHITA (ICT)
KANSAS CITY
KANSAS CITY (ZKC)
11/28/24-12/26/24
KK83 (18nm) VFR
5:55 AM CST
Clear
10sm
40°F
33°F
30.04"Hg
280° 5kts
AO2 T00450007 10057 20040
KK83 231155Z AUTO 28005KT 10SM CLR 05/01 A3004 RMK AO2 T00450007 10057 20040
Add Your Business

K91 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KSTJ (29nm)
Mon, 12/23 5:23 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 9:00 AM CST
Broken 2,000'
6sm
220° 12kts
VFR
9:00 AM CST - 2:00 PM CST
Broken 10,000'
Scattered 2,000'
6sm
250° 8kts
VFR
2:00 PM CST - 5:00 PM CST
Broken 12,000'
6sm
320° 7kts
VFR
5:00 PM CST - 6:00 AM CST
Broken 7,000'
6sm
VRB° 4kts
KSTJ 231123Z 2312/2412 22012KT P6SM BKN020
   FM231500 25008KT P6SM SCT020 BKN100
   FM232000 32007KT P6SM BKN120
   FM232300 VRB04KT P6SM BKN070
K91
Domestic
12/19/242331Z !ICT 12/203 K91 OBST TOWER LGT (ASR 1012359) 394032.00N0953602.00W (3.1NM W K91) 1449.8FT (295.9FT AGL) U/S 2412192331-2502022331
12/16/240328Z !ICT 12/156 K91 OBST TOWER LGT (ASR 1032188) 394233.90N0953100.60W (2.0NM NNE K91) 1614.8FT (494.8FT AGL) U/S 2412160328-2504150328
No
UNATNDD
FOR SVC - AMGR OR 785-486-2684.
CITY OF HORTON
PO BOX 30
HORTON, KS 66439
Phone: 785-486-2681
JOHN CALHOON
202 E. 8TH STREET
HORTON, KS 66439
Phone: 785-486-2681
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
--
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 15/33

1636 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 145°325°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 39° 40' 52"N 39° 40' 38"N
Longitude 95° 32' 05"W 95° 31' 53"W
Elevation 1,130' 1,104'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

2223 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 181°1°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 39° 40' 54"N 39° 40' 32"N
Longitude 95° 32' 06"W 95° 32' 06"W
Elevation 1,113' 1,098'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2APT FAC & SNOW REMOVAL NA.
A110-8TIEDOWN AREA & TWY UNMKD; ROUGH & NOT MNTND.
A110-9FOR CD CTC ST JOSEPH APCH AT 816-236-3035. WHEN ST JOSEPH APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
HORTON MUNI (IATA: K91) is a public airport located in HORTON, KS.
