iFlightPlanner



...

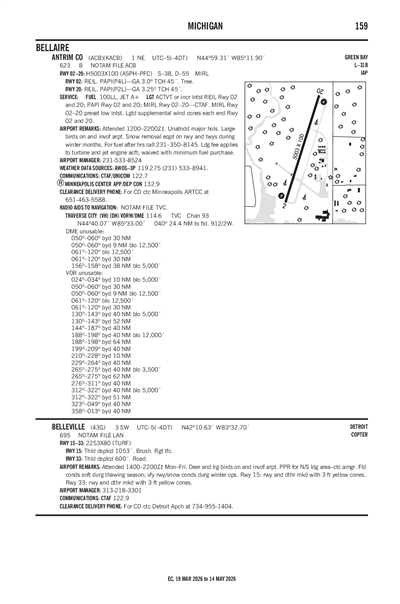

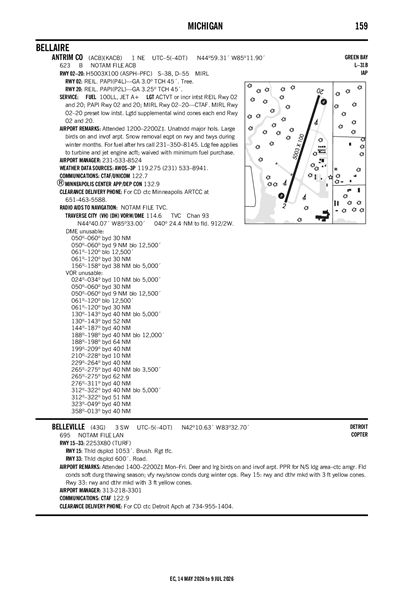

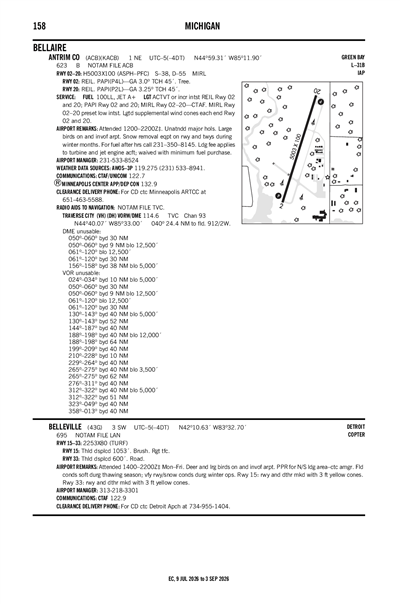

ANTRIM COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KACB
ANTRIM COUNTY
PublicPUB

1 miles NE of BELLAIRE, MI
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 59' 19"N 85° 11' 54"W
623' MSL
1623' MSL
05W
JET A (FSII), 100LL
LANSING (LAN)
GREEN BAY
MINNEAPOLIS (ZMP)
12/26/24-1/23/25
KACB IFR
11:35 AM EST
Light Snow
Overcast 2,800'
2sm
8°F
3°F
30.03"Hg
180° 9kts
Gusts 19kts
AO2 T11321162
KACB 221635Z AUTO 18009G19KT 2SM -SN OVC028 M13/M16 A3003 RMK AO2 T11321162

KACB FBOs

Antrim County Airport
UNICOM: 122.7
Phone: (231) 533-8524
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/29/2024
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.50 6.30
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3P

AWOS-3P
231-533-8941
119.275

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTVC (22nm)
Wed, 1/22 11:09 AM EST
Wed, 1/22 11:00 AM EST - Thu, 1/23 7:00 AM EST
MVFR
11:00 AM EST - 1:00 PM EST
Light Showers and Snow
Overcast 4,000'
5sm
180° 13kts
Gusts 29kts
IFR
Temporary 11:00 AM EST - 1:00 PM EST
Light Snow
Broken 2,000'
2sm
Calm
MVFR
1:00 PM EST - 3:00 AM EST
Light Showers and Snow and Mist
Broken 2,500'
3sm
200° 13kts
Gusts 26kts
MVFR
3:00 AM EST - 7:00 AM EST
Light Showers and Snow
Broken 1,800'
5sm
310° 6kts
KTVC 221609Z 2216/2312 18013G29KT 5SM -SHSN OVC040
   TEMPO 2216/2218 2SM -SN BKN020
   FM221800 20013G26KT 3SM -SHSN BR BKN025
   FM230800 31006KT 5SM -SHSN BKN018
KACB
Domestic
1/21/252040Z !ACB 01/082 ACB APRON TERMINAL RAMP FICON 12IN DRY SN OVER COMPACTED SN 24IN BERMS BA MEDIUM TO POOR OBS AT 2501212040. 2501212040-2501222040
1/21/252035Z !ACB 01/079 ACB APRON EQPT RAMP FICON 12IN DRY SN OVER COMPACTED SN 24IN BERMS BA MEDIUM TO POOR OBS AT 2501212035. 2501212035-2501222035
1/21/252034Z !ACB 01/078 ACB APRON COMMUNITY HANGAR RAMP FICON 12IN DRY SN OVER COMPACTED SN BA MEDIUM TO POOR OBS AT 2501212033. 2501212034-2501222034
1/21/252032Z !ACB 01/077 ACB APRON SOUTH HANGAR RAMP FICON 1/4IN DRY SN OVER COMPACTED SN 3FT BERMS BA POOR OBS AT 2501212032. 2501212032-2501222032
1/21/252031Z !ACB 01/076 ACB APRON NORTH HANGAR RAMP FICON 1/4IN DRY SN OVER COMPACTED SN BA POOR OBS AT 2501212031. 2501212031-2501222031
1/21/252029Z !ACB 01/075 ACB TWY B BTN RWY 02/20 AND TERMINAL RAMP FICON 1/4IN DRY SN OVER COMPACTED SN 3FT BERMS BA POOR OBS AT 2501212029. 2501212029-2501222029
1/21/252028Z !ACB 01/074 ACB TWY C BTN RWY 02/20 AND TERMINAL RAMP FICON 1/4IN DRY SN OVER COMPACTED SN 3FT BERMS BA POOR OBS AT 2501212028. 2501212028-2501222028
12/4/241402Z !ACB 12/023 ACB TWY A1 BTN RWY 02/20 AND TWY A CLSD 2412041402-2504011300
12/2/241417Z !ACB 12/004 ACB TWY A CLSD 2412021417-2504011300
9/26/241528Z !ACB 09/002 ACB RWY 20 RWY END ID LGT U/S 2409261528-2503262111EST
No
0700-1700
UNATNDD MAJOR HOLS.
ANTRIM COUNTY
PO BOX 520, 230 E CAYUGA ST
BELLAIRE, MI 49615-0520
Phone: 231-533-6353
MATTHEW WYMAN
3366A S DERENZY RD
BELLAIRE, MI 49615-9499
Phone: 231-533-8524
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
ACB
--
ACTVT OR INCR INTST REIL RWY 02 & 20; PAPI RWY 02 & 20; MIRL RWY 02/20 - CTAF. MIRL RWY 02/20 PRESET LOW INTST.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 02/20

5003 ft. x 100 ft.
ASPH
Good
PFC
MED

38,000lbs
55,000lbs
--
--
  Runway 02 Runway 20
True Heading 17°197°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 58' 55"N 44° 59' 42"N
Longitude 85° 12' 04"W 85° 11' 44"W
Elevation 622' 618'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3.25°
Visual Slope Indicator P4L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1LRG BIRDS ON & INVOF ARPT.
A110-3SNOW REMOVAL EQPT ON RWY & TWYS DURG WINTER MONTHS.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
ANTRIM COUNTY (ICAO: KACB, IATA: ACB) is a public airport located in BELLAIRE, MI.
