iFlightPlanner



...

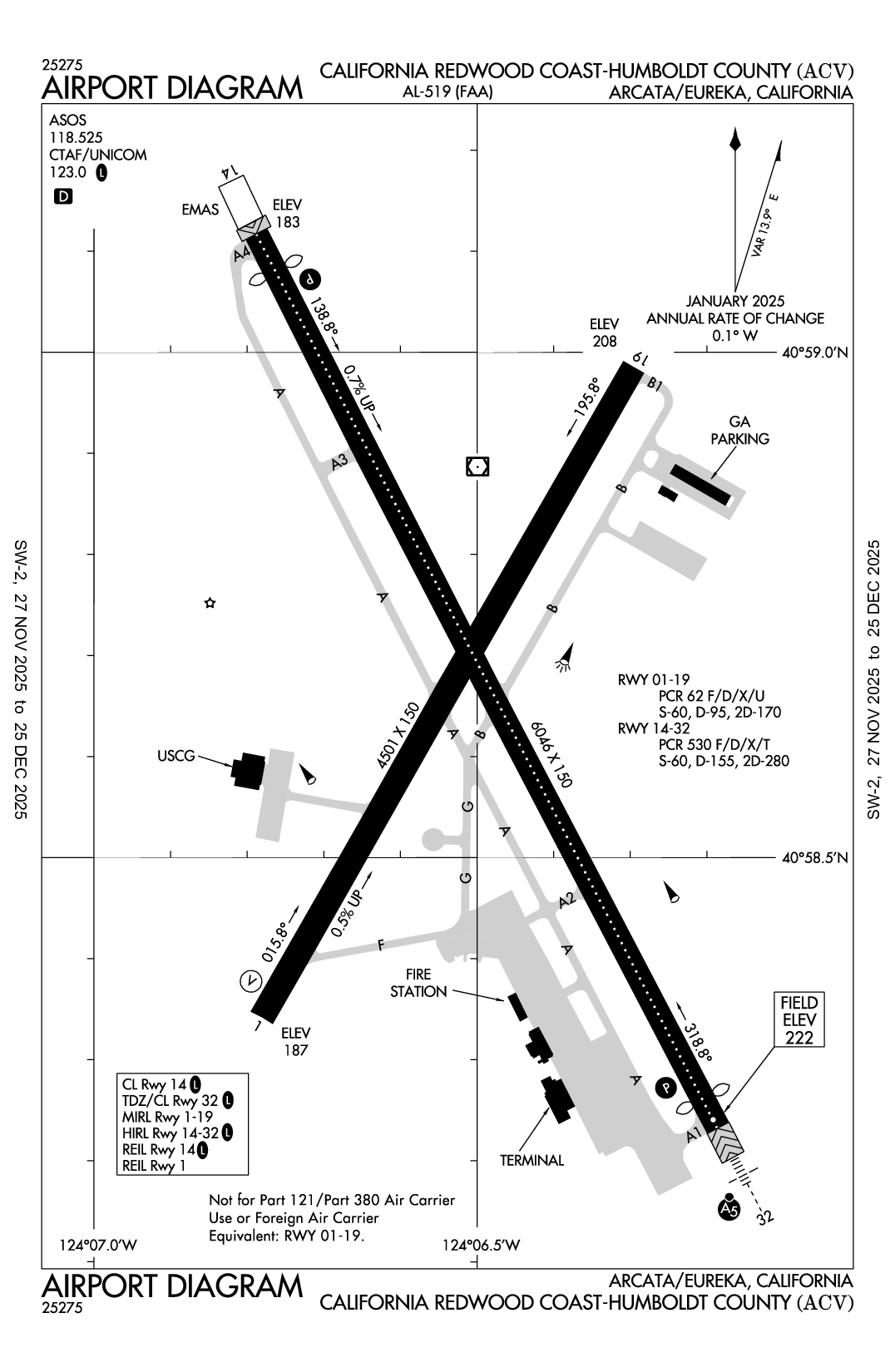

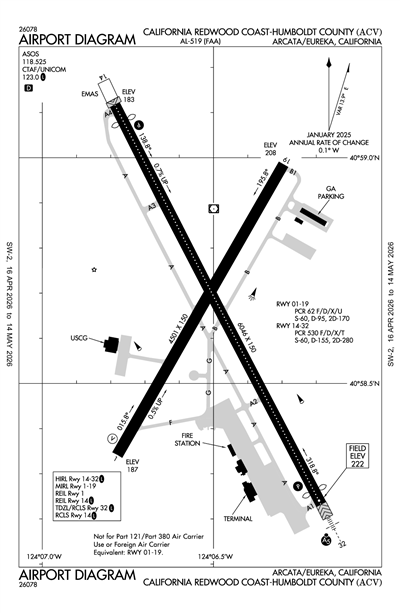

CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KACV
CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY
PublicPUB

7 miles N of ARCATA/EUREKA, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 58' 40"N 124° 06' 30"W
222' MSL
1222' MSL
17E
JET A, 100LL
OAKLAND (OAK)
KLAMATH FALLS
SEATTLE (ZSE)
11/28/24-12/26/24
KACV MVFR
4:11 AM PST
Mist
Clear
3sm
47°F
47°F
30.11"Hg
060° 5kts
AO2 T00830083
KACV 231211Z AUTO 06005KT 3SM BR CLR 08/08 A3011 RMK AO2 T00830083
Add Your Business

KACV FBOs

Promote Listing
Arcata Airport
UNICOM: 123.0
Phone: (707) 839-5401
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 12/19
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.20
Full Serve 7.15 7.19
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
707-839-7429
 118.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KACV
Mon, 12/23 4:10 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
VFR
4:00 AM PST - 6:00 AM PST
Sky Clear
6sm
VRB° 3kts
IFR
Temporary 4:00 AM PST - 6:00 AM PST
Mist
No Clouds
2sm
Calm
VFR
6:00 AM PST - 10:00 AM PST
Overcast 10,000'
Few 1,500'
6sm
VRB° 2kts
VFR
10:00 AM PST - 2:00 PM PST
Light Showers and Rain
Overcast 10,000'
Broken 5,000'
6sm
130° 8kts
Shear 160° 40kts @ 2000'
MVFR
2:00 PM PST - 6:00 PM PST
Light Showers and Rain
Overcast 10,000'
Broken 3,000'
4sm
140° 12kts
Gusts 25kts
MVFR
6:00 PM PST - 8:00 PM PST
Rain and Mist
Scattered 2,500'
4sm
150° 25kts
Gusts 33kts
IFR
6:00 PM PST - 8:00 PM PST
Light Thunderstorm and Rain
Broken 2,500'
2sm
Calm
MVFR
8:00 PM PST - 10:00 PM PST
Rain and Mist
Broken 1,500'
Scattered 700'
3sm
160° 20kts
Gusts 23kts
MVFR
8:00 PM PST - 10:00 PM PST
Light Thunderstorm and Rain
Broken 1,500'
4sm
Calm
IFR
10:00 PM PST - 4:00 AM PST
Light Rain and Mist
Overcast 1,500'
2sm
170° 12kts
KACV 231210Z 2312/2412 VRB03KT P6SM SKC
   TEMPO 2312/2314 2SM BR
   FM231400 VRB02KT P6SM FEW015 OVC100
   FM231800 13008KT P6SM -SHRA BKN050 OVC100 WS020/16040KT
   FM232200 14012G25KT 4SM -SHRA BKN030 OVC100
   FM240200 15025G33KT 4SM RA BR SCT025
   PROB30 2402/2404 2SM -TSRA BKN025CB
   FM240400 16020G23KT 3SM RA BR SCT007 BKN015
   PROB30 2404/2406 4SM -TSRA BKN015CB
   FM240600 17012KT 2SM -RA BR OVC015
KACV
Domestic
10/30/242100Z !ACV 10/010 ACV NAV VOR GND REC CHECKPOINT U/S 2410302100-2504302111EST
7/25/241450Z !ACV 07/032 ACV OBST TOWER LGT (ASR UNKNOWN) 404604N1235234W (16.6NM SE ACV) 735FT (56.4FT AGL) U/S 2407251450-2501022359
FDC
9/12/241845Z !FDC 4/4549 ACV IAP CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY, ARCATA/EUREKA, CA.
ILS OR LOC RWY 32, AMDT 3...
MISSED APPROACH: CLIMB TO 1600 THEN
CLIMBING LEFT TURN TO 3000 DIRECT ACV VOR/DME AND HOLD
NW, RT, 113.00 INBOUND,
FOT VORTAC OUT OF SERVICE. 2409121845-2501151845EST
9/12/241845Z !FDC 4/4546 ACV SID CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY, ARCATA/EUREKA, CA.
HOCUT FIVE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FOT VORTAC OUT OF SERVICE. 2409121845-2501151845EST
6/21/241553Z !FDC 4/1731 ACV ODP CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY, ARCATA/EUREKA, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8...
TAKE-OFF MINIMUMS: RWY 1, 300-1 WITH A MINIMUM CLIMB OF 360 FEET PER NM TO 600 OR 3100-3 FOR VCOA.
RWY 14, 400-2 1/2 WITH A MINIMUM CLIMB OF 382 FEET PER NM TO 600.
VCOA: RWY 1, OBTAIN ATC APPROVAL FOR VCOA WHEN REQUESTING IFR CLEARANCE. CLIMB IN VISUAL CONDITIONS TO CROSS CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY AIRPORT WESTBOUND AT OR ABOVE 3200 TO INTERCEPT ACV R-250 TO HOCUT INT AND CONTINUE CLIMB TO MEA ON V27.
ALL OTHER DATA REMAINS AS PUBLISHED. 2406211553-2606211553EST
6/12/241741Z !FDC 4/7511 ACV IAP CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY, ARCATA/EUREKA, CA.
ILS OR LOC RWY 32, AMDT 3...
S-ILS 32 DA 496/HAT 275.
2406121741-2606121741EST
6/12/241741Z !FDC 4/7509 ACV IAP CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY, ARCATA/EUREKA, CA.
RNAV (GPS) RWY 32, AMDT 2A...
LPV DA 471/HAT 250.
2406121741-2606121741EST
6/12/241741Z !FDC 4/7508 ACV IAP CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY, ARCATA/EUREKA, CA.
RNAV (GPS) RWY 14, AMDT 1B...
LPV DA 481/HAT 276; LNAV/VNAV DA 637/HAT 432.
2406121741-2606121741EST
6/15/231945Z !FDC 3/1807 ACV IAP CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY, ARCATA/EUREKA, CA.
RNAV (GPS) RWY 1, AMDT 2B...
LPV DA NA; LNAV/VNAV DA NA.
2306151945-2506151945EST
No
ALL 0400-2359
HUMBOLDT COUNTY
1106 SECOND ST
EUREKA, CA 95501
Phone: (707) 496-0102
CODY ROGGATZ
3561 BOEING AVE.
MCKINLEYVILLE, CA 95519
Phone: 707-839-5401
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
ACV
--
ACTVT MALSR RWY 32; TDZL RWY 32; C/L LGTS RWY 14 & 32; REIL RWY 14; PAPI RWY 14 & 32; HIRL RWY 14/32 - CTAF. MIRL RWY 01/19, REIL RWY 01, AND VASI RWY 01 PPR CTC 707-382-2551 OR 707-496-0102.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 01/19

4501 ft. x 150 ft.
ASPH
Fair
GRVD
MED

60,000lbs
95,000lbs
170,000lbs
--
  Runway 01 Runway 19
True Heading 30°210°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 58' 20"N 40° 58' 59"N
Longitude 124° 06' 47"W 124° 06' 18"W
Elevation 187' 208'
Threshold Crossing Height 48 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 14/32

6046 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

60,000lbs
155,000lbs
280,000lbs
--
  Runway 14 Runway 32
True Heading 153°333°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 59' 07"N 40° 58' 14"N
Longitude 124° 06' 47"W 124° 06' 11"W
Elevation 183' 222'
Threshold Crossing Height 50 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes No
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC SEATTLE ARTCC AT 253-351-3694.
CALIFORNIA REDWOOD COAST-HUMBOLDT COUNTY (ICAO: KACV, IATA: ACV) is a public airport located in ARCATA/EUREKA, CA.
