iFlightPlanner



...
ANDERSON RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAND
ANDERSON RGNL
PublicPUB

3 miles SW of ANDERSON, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 29' 41"N 82° 42' 34"W
782' MSL
1782' MSL
05W
JET A, 100LL
ANDERSON (AND)
ATLANTA
ATLANTA (ZTL)
11/28/24-12/26/24
KAND VFR
6:56 AM EST
Clear
10sm
28°F
18°F
30.50"Hg
040° 5kts
AO2 SLP333 T10221078 10000 21033 53007
KAND 231156Z AUTO 04005KT 10SM CLR M02/M08 A3050 RMK AO2 SLP333 T10221078 10000 21033 53007
Add Your Business

KAND FBOs

Promote Listing
Anderson Regional Airport
UNICOM: 123.6
Phone: (864) 964-5656
Other: (864) 260-4163
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 12/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.09
Full Serve 7.09 6.21
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.6

ASOS

ASOS
864-226-9522
 120.675

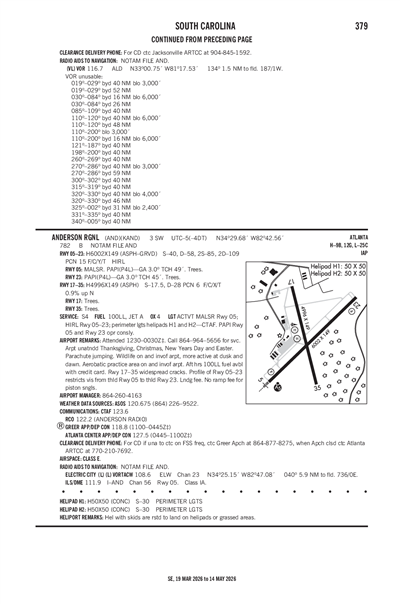

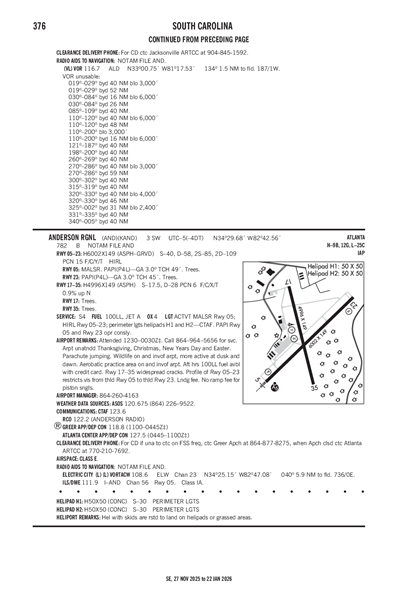

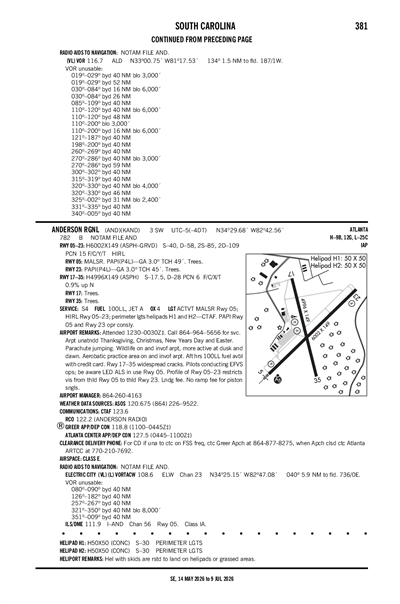

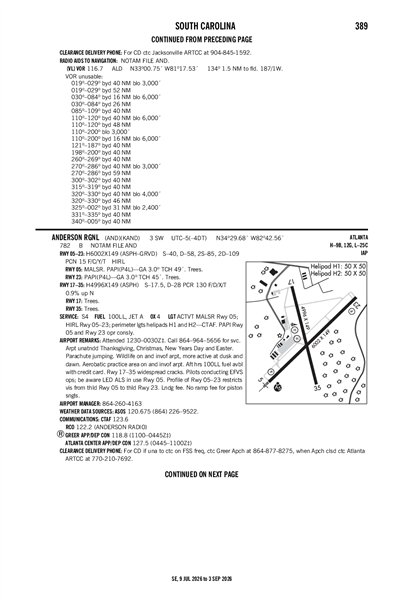

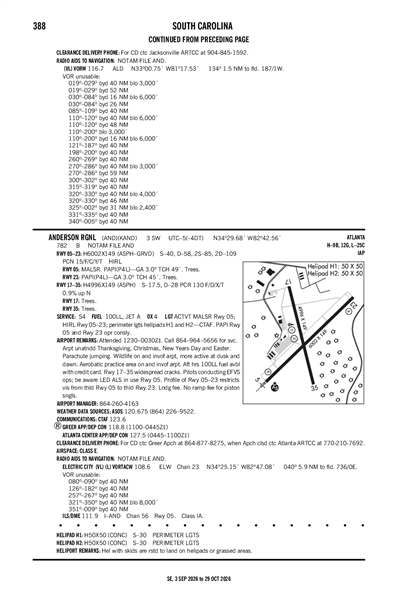

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAND
Mon, 12/23 6:27 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 10:00 AM EST
Sky Clear
6sm
050° 4kts
VFR
10:00 AM EST - 8:00 PM EST
Sky Clear
6sm
060° 7kts
VFR
8:00 PM EST - 7:00 AM EST
Scattered 23,000'
6sm
050° 3kts
KAND 231127Z 2312/2412 05004KT P6SM SKC
   FM231500 06007KT P6SM SKC
   FM240100 05003KT P6SM SCT230
KAND
Domestic
12/17/240641Z !AND 12/214 AND OBST TOWER LGT (ASR 1047952) 343036.00N0825259.40W (8.6NM W AND) 1041.0FT (254.9FT AGL) U/S 2412170641-2501010541
12/12/240809Z !AND 12/160 AND OBST TOWER LGT (ASR 1001563) 343614.60N0823822.20W (7.5NM NNE AND) 1063.0FT (308.1FT AGL) U/S 2412120809-2412270500
11/25/242148Z !AND 11/309 AND OBST TOWER LGT (ASR 1049560) 341947.20N0822826.20W (15.1NM SE AND) 997.0FT (295.9FT AGL) U/S 2411252148-2501092147
10/31/241504Z !AND 10/451 AND OBST TOWER LGT (ASR 1246964) 342214.70N0824815.60W (8.9NM SSW AND) 976.0FT (311.0FT AGL) U/S 2410311504-2501290400
FDC
9/15/231637Z !FDC 3/0779 AND IAP ANDERSON RGNL, ANDERSON, SC.
RNAV (GPS) RWY 35, AMDT 1B...
LP MDA 1200/HAT 438 ALL CATS. LNAV MDA 1200/HAT 438 ALL CATS.
2309151637-2509151637EST
No
0730-1930
CALL 864-964-5656 FOR SVC.
ARPT UNATNDD THANKSGIVING, CHRISTMAS, NEW YEARS DAY, AND EASTER.
COUNTY OF ANDERSON
5805 AIRPORT ROAD
ANDERSON, SC 29626
Phone: 864-260-4163
BRETT GARRISON
5805 AIRPORT RD.
ANDERSON, SC 29626
Phone: 864-260-4163
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
--
ACTVT MALSR RWY 05; HIRL RWY 05/23; PERIMETER LGTS HELIPADS H1 & H2 - CTAF. PAPI RWY 05 & 23 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
None
Air Freight
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

6002 ft. x 149 ft.
ASPH
Good
GRVD
HIGH
15 /F/C/Y/T
40,000lbs
58,000lbs
109,000lbs
--
  Runway 05 Runway 23
True Heading 46°226°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 29' 19"N 34° 30' 00"N
Longitude 82° 42' 57"W 82° 42' 06"W
Elevation 751' 747'
Threshold Crossing Height 49 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4996 ft. x 149 ft.
ASPH
Poor
NONE

6 /F/C/X/T
18,000lbs
28,000lbs
--
--
  Runway 17 Runway 35
True Heading 166°346°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 30' 06"N 34° 29' 18"N
Longitude 82° 42' 44"W 82° 42' 29"W
Elevation 782' 736'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

50 ft. x 50 ft.
CONC
Good
NONE
PERI

30,000lbs
--
--
--
  Runway H1 Runway
True Heading 94°274°
Traffic Pattern
Markings NSTD
Markings Condition
Latitude 34° 29' 42"N N/A
Longitude 82° 42' 42"W N/A
Elevation 756' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

50 ft. x 50 ft.
CONC
Good
NONE
PERI

30,000lbs
--
--
--
  Runway H2 Runway
True Heading 94°274°
Traffic Pattern
Markings NSTD
Markings Condition
Latitude 34° 29' 40"N N/A
Longitude 82° 42' 42"W N/A
Elevation 756' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HEL WITH SKIDS ARE RSTRD TO LAND ON HELIPADS OR GRASSED AREAS.
A110-2PROFILE OF RWY 05/23 RESTRICTS VIS FROM THLD RWY 05 TO THLD RWY 23.
A110-3WILDLIFE ON & INVOF ARPT; MORE ACTIVE AT DUSK & DAWN.
A110-4AEROBATIC PRACTICE AREA ON & INVOF ARPT.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC GREER APCH AT 864-877-8275, WHEN APCH CLSD CTC ATLANTA ARTCC AT 770-210-7692.
ANDERSON RGNL (ICAO: KAND, IATA: AND) is a public airport located in ANDERSON, SC.
