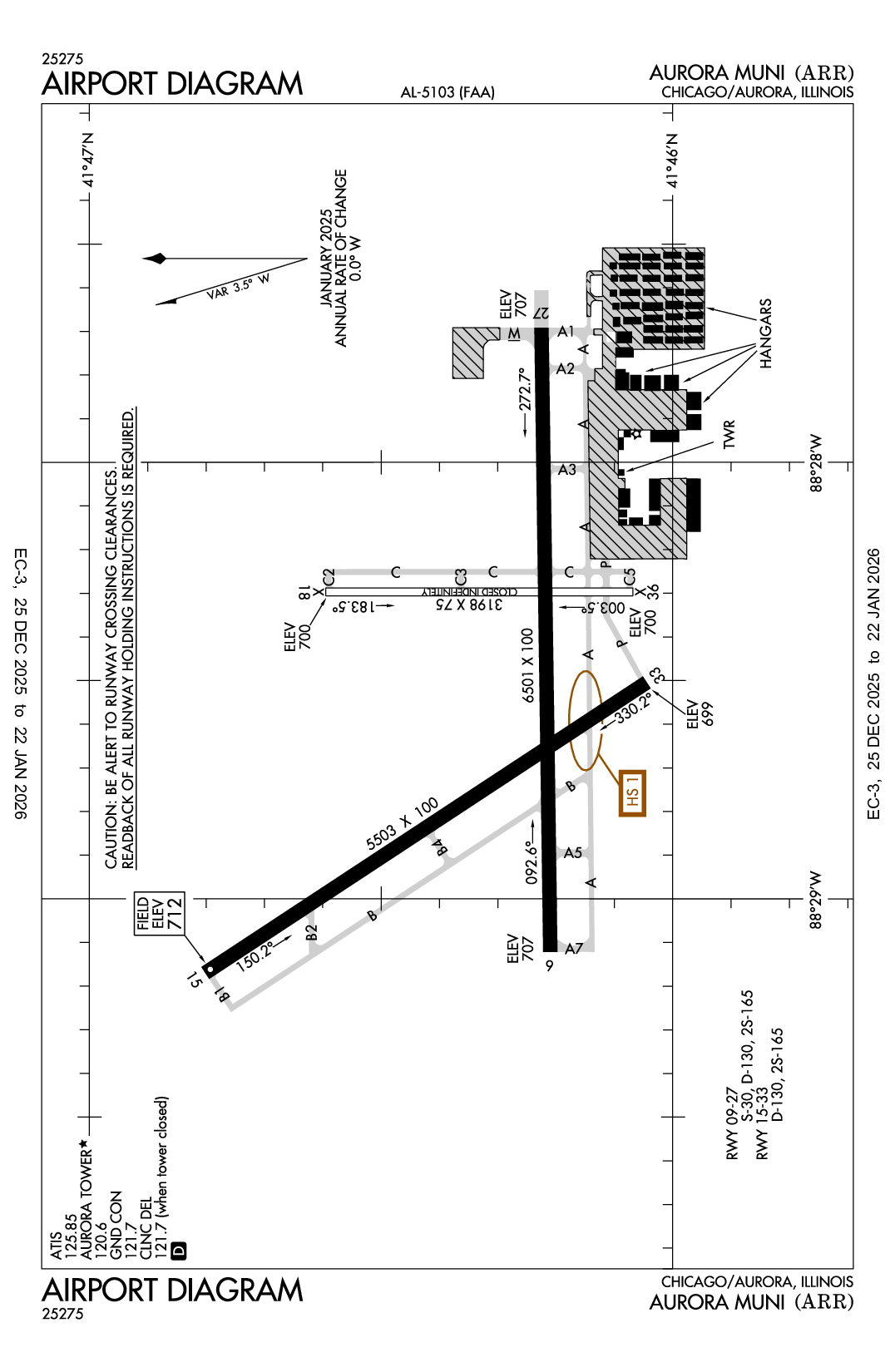

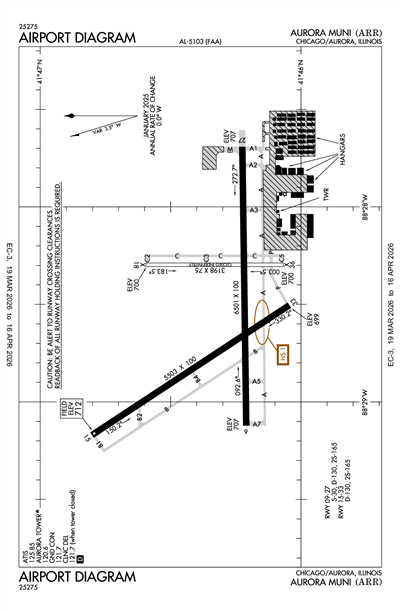

AURORA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KARR
AURORA MUNI
PublicPUB

38 miles W of CHICAGO/AURORA, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 46' 19"N 88° 28' 32"W
712' MSL
1712' MSL
01W
JET A-1, 100
KANKAKEE (IKK)
CHICAGO
CHICAGO (ZAU)
11/28/24-12/26/24
KARR MVFR
6:27 AM CST
Overcast 4,900'
Broken 2,700'
9sm
34°F
26°F
30.07"Hg
170° 9kts
AO2 T00111033
KARR 231227Z AUTO 17009KT 9SM BKN027 OVC049 01/M03 A3007 RMK AO2 T00111033
Add Your Business

KARR FBOs

J.A. Air Center
UNICOM: 122.95
Phone: (630) 584-3200
Fax: (866) 284-4031
Other: (630) 549-2106
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66, World Fuel
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.48 5.72
Fuel Notes
Prices include tax
Promote Listing
Revv Aviation
UNICOM: 123.5
Phone: (630) 466-4866
Other: (630) 466-4866
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/9
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.55 5.44 5.47
Fuel Notes
Prices include tax

KARR Aircraft Service & Maintenance

Promote Listing
Chicago Jet Group LLC
Phone: (630) 466-3600
Fax: (630) 466-3601
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.6

ATIS

ATIS
 125.85

Ground

GND/P
 121.7

Tower

LCL/P
 120.6

Terminal Area Forecast

KDPA (13nm)
Mon, 12/23 5:20 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 9:00 AM CST
Overcast 3,500'
Scattered 2,000'
6sm
190° 14kts
Gusts 22kts
MVFR
6:00 AM CST - 8:00 AM CST
Light Freezing Drizzle
Broken 2,000'
6sm
Calm
MVFR
9:00 AM CST - 4:00 PM CST
Overcast 2,000'
Scattered 1,500'
6sm
210° 11kts
Gusts 17kts
MVFR
4:00 PM CST - 6:00 PM CST
Overcast 2,500'
Scattered 1,500'
6sm
230° 9kts
MVFR
6:00 PM CST - 2:00 AM CST
Overcast 1,500'
Scattered 900'
6sm
280° 8kts
IFR
2:00 AM CST - 6:00 AM CST
Overcast 900'
6sm
360° 6kts
KDPA 231120Z 2312/2412 19014G22KT P6SM SCT020 OVC035
   PROB30 2312/2314 6SM -FZDZ BKN020
   FM231500 21011G17KT P6SM SCT015 OVC020
   FM232200 23009KT P6SM SCT015 OVC025
   FM240000 28008KT P6SM SCT009 OVC015
   FM240800 36006KT P6SM OVC009
KARR
Domestic
12/21/240150Z !ARR 12/015 ARR RWY 33 PAPI U/S 2412210150-2501242330
12/19/241914Z !ARR 12/008 ARR RWY 09 PAPI U/S 2412191914-2504012359
12/19/241912Z !ARR 12/007 ARR TWY C SOUTH OF TWY P CLSD 2412191912-2504012359
12/19/241912Z !ARR 12/006 ARR TWY C NORTH OF RWY 09/27 CLSD 2412191912-2504012359
12/19/241911Z !ARR 12/005 ARR RWY 18/36 CLSD 2412191911-2504012359
10/2/241400Z !ARR 10/001 ARR RWY 09 PAPI U/S 2410021400-2412312359
1/2/241915Z !ARR 01/002 ARR RWY 18 PAPI U/S 2401021915-2412312359
1/2/241913Z !ARR 01/001 ARR RWY 36 VASI U/S 2401021913-2412312359
FDC
6/14/242007Z !FDC 4/9141 ARR IAP AURORA MUNI, CHICAGO/AURORA, IL.
ILS OR LOC RWY 9, AMDT 4A...
RNAV (GPS) RWY 15, AMDT 1A...
RNAV (GPS) RWY 33, AMDT 1B...
RNAV (GPS) RWY 9, AMDT 2A...
CIRCLING CAT A/B MDA 1280/HAA 568. WATER TOWER 918 MSL 1.58 NM SE OF ARR AIRPORT (2024-AGL-4557-OE PERMANENT).
2406142007-2606142007EST
6/14/241959Z !FDC 4/9139 ARR IAP AURORA MUNI, CHICAGO/AURORA, IL.
RNAV (GPS) RWY 27, AMDT 1C...
LNAV/VNAV DA 1058/HAT 351 ALL CATS. LNAV MDA 1160/HAT 453 ALL CATS, VIS CAT C/D 1 3/8. CIRCLING CAT A/B MDA 1280/HAA 568. WATER TOWER 918 MSL 1.02 NM SE OF RWY 27 (2024-AGL-4557-OE PERMANENT).
2406141959-2606141959EST
6/14/241949Z !FDC 4/9137 ARR IAP AURORA MUNI, CHICAGO/AURORA, IL.
LOC RWY 33, AMDT 1A...
EPABE FIX MINIMUMS (DUAL VOR RECEIVERS OR DME REQUIRED) CIRCLING CAT A/B MDA 1280/HAA 568. WATER TOWER 918 MSL 1.44 NM SE OF RWY 33 (2024-AGL-4557-OE PERMANENT).
2406141949-2606141949EST
6/14/241933Z !FDC 4/9134 ARR IAP AURORA MUNI, CHICAGO/AURORA, IL.
VOR RWY 36, AMDT 3B...
COAST FIX MINIMUMS (DUAL VOR RECEIVERS OR DME REQUIRED) S-36 MDA 1220/HAT 517 ALL CATS, VIS CAT C/D 1 3/8. CIRCLING CAT A/B MDA 1280/HAA 568. WATER TOWER 918 MSL 1.31 NM SE OF RWY 36 (2024-AGL-4557-OE PERMANENT).
2406141933-2606141933EST
Yes
0600-2400
CITY OF AURORA
44 E. DOWNER PLACE
AURORA, IL 60507
Phone: (630) 256-3120
STEVE ANDRAS
43W 636 US30
SUGAR GROVE, IL 60554
Phone: (630) 256-3120
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
ARR
--
ACTVT MALSR RWY 09, 33; REIL RWY 18, 36,15, 27; TWY LGTS - CTAF. WHEN ATCT CLSD HIRL RWY 15/33, 09/27; MIRL RWY 18/36 PRESET LOW INTST, TO INCR INTST & ACTVT - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

6501 ft. x 100 ft.
CONC
Good
GRVD
HIGH

30,000lbs
130,000lbs
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 46' 13"N 41° 46' 14"N
Longitude 88° 29' 07"W 88° 27' 42"W
Elevation 707' 707'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 15/33

5503 ft. x 100 ft.
CONC
Good
GRVD
HIGH

--
130,000lbs
--
--
  Runway 15 Runway 33
True Heading 147°327°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 46' 48"N 41° 46' 03"N
Longitude 88° 29' 10"W 88° 28' 30"W
Elevation 712' 698'
Threshold Crossing Height 34 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 18/36

3198 ft. x 75 ft.
ASPH
Poor
NONE
MED

30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left
Markings BSC NPI
Markings Condition FAIR FAIR
Latitude 41° 46' 36"N 41° 46' 04"N
Longitude 88° 28' 18"W 88° 28' 18"W
Elevation 700' 700'
Threshold Crossing Height 30 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1SEASONAL CROPS IN PART 77 SURFACES RUNWAY 9/27 & 15/33
AURORA MUNI (ICAO: KARR, IATA: ARR) is a public airport located in CHICAGO/AURORA, IL.
