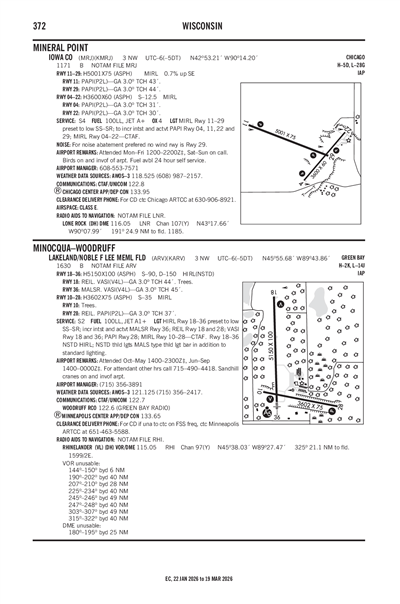

LAKELAND/NOBLE F LEE MEML FLD - Airport Diagram

KARV

LAKELAND/NOBLE F LEE MEML FLD

PublicPUB

3 miles NW of MINOCQUA-WOODRUFF, WI

View on Map

Status

Operational

Coordinates

45° 55' 41"N 89° 43' 51"W

Elevation

1630' MSL

Pattern Alt

2630' MSL

Mag Variation

02W

Fuel

JET A-1+, 100LL

FSS

GREEN BAY (GRB)

Sectional

GREEN BAY

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

11/28/24-12/26/24

KARV IFR

6:35 AM CST RAW

Overcast 1,700'
Broken 900'

Viz

10sm

Temp

27°F

Dew

25°F

Pres

29.95"Hg

Wind

Calm

RMK

AO2 T10261041

KARV 231235Z AUTO 00000KT 10SM BKN009 OVC017 M03/M04 A2995 RMK AO2 T10261041

Add Your Business

KARV FBOs

Promote Listing

Lakeland Aviation

UNICOM: 122.7

Phone: (715) 356-3891

0 Reviews (Read | Sign In To Write)

Titan

As of 12/17	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	5.29		5.49

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.7 CTAF 122.7

AWOS-3

715-356-2417

121.125

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KRHI (21nm)

RAW

Reported

Mon, 12/23 5:40 AM CST

Valid

Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST

MVFR

6:00 AM CST - 7:00 AM CST

Light Snow

Overcast 2,500'

Viz

3sm

Wind

VRB° 3kts

IFR

Temporary 6:00 AM CST - 7:00 AM CST

Light Snow

Overcast 1,500'

Viz

1.5sm

Wind

Calm

MVFR

7:00 AM CST - 8:00 AM CST

Light Snow

Overcast 1,100'

Viz

4sm

Wind

VRB° 3kts

IFR

Temporary 7:00 AM CST - 8:00 AM CST

Light Snow

Broken 800'

Viz

2sm

Wind

Calm

IFR

8:00 AM CST - 11:00 AM CST

Light Snow

Overcast 900'

Viz

2sm

Wind

VRB° 3kts

MVFR

11:00 AM CST - 8:00 PM CST

Overcast 1,200'

Viz

6sm

Wind

010° 4kts

IFR

8:00 PM CST - 2:00 AM CST

Overcast 900'

Viz

6sm

Wind

010° 2kts

MVFR

2:00 AM CST - 6:00 AM CST

Broken 1,200'

Viz

6sm

Wind

VRB° 3kts

KRHI 231140Z 2312/2412 VRB03KT 3SM -SN OVC025
   TEMPO 2312/2313 1 1/2SM -SN OVC015
   FM231300 VRB03KT 4SM -SN OVC011
   TEMPO 2313/2314 2SM -SN BKN008
   FM231400 VRB03KT 2SM -SN OVC009
   FM231700 01004KT P6SM OVC012
   FM240200 01002KT P6SM OVC009
   FM240800 VRB03KT P6SM BKN012

KARV

Domestic
9/16/241504Z	!ARV 09/003 ARV RWY 28 PAPI U/S 2409161504-2503172111EST
9/13/241216Z	!ARV 09/002 ARV RWY 28 RWY END ID LGT U/S 2409131216-2503132111EST

ATC Tower

Attendance

OCT-MAY 0800-1700
JUN-SEP 0800-1800
FOR ATTENDANT OTHER HRS CALL 715-490-4418.

Owner

LAKELAND AIRPORT COMMISSION
1545 N. FARMING RD.
WOODRUFF, WI 54568
Phone: (715) 356-4340

Manager

JON SCHMITZ
1545 N. FARMING RD
WOODRUFF, WI 54568
Phone: (715) 356-3891

FSS

GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF

NOTAM

ARV

Light Schedule

Lights

HIRL RWY 18/36 PRESET TO LOW SS-SR; INCR INTST AND ACTVT MALSR RWY 36; REIL RWY 18 & 28; VASI RWY 18 & 36; PAPI RWY 28; MIRL RWY 10/28 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Charter Service
Pilot Instruction
Aircraft Rental

Runway 10/28

Dimensions

3602 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

35,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 10	Runway 28
True Heading	101°	281°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	45° 55' 30"N	45° 55' 23"N
Longitude	89° 44' 07"W	89° 43' 17"W
Elevation	1,622'	1,623'
Threshold Crossing Height	--	37 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	Yes

Runway 18/36

Dimensions

5150 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

90,000lbs

Double Wheel

150,000lbs

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	179°	359°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	45° 56' 16"N	45° 55' 25"N
Longitude	89° 43' 59"W	89° 43' 58"W
Elevation	1,630'	1,624'
Threshold Crossing Height	44 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	V4L	V4L
Approach Lights		MALSR
Centerline Lights	No	No
Runway End Identifier Lights	Yes	No

A110-1	SANDHILL CRANES ON & INVOF ARPT.
A110-2	FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.

LAKELAND/NOBLE F LEE MEML FLD (ICAO: KARV, IATA: ARV) is a public airport located in MINOCQUA-WOODRUFF, WI.
