iFlightPlanner



...

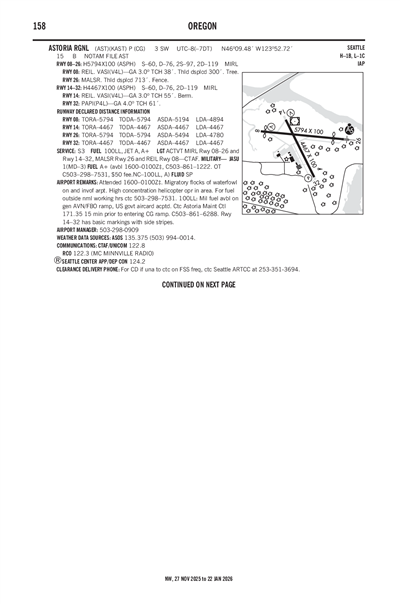

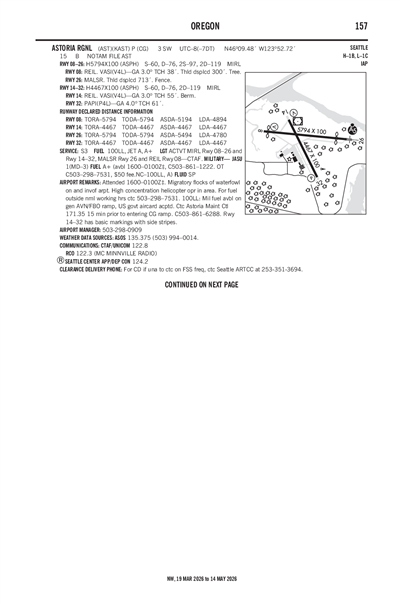

ASTORIA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAST
ASTORIA RGNL
PublicPUB

3 miles SW of ASTORIA, OR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 09' 29"N 123° 52' 43"W
15' MSL
1015' MSL
15E
JET A, 100LL
MC MINNVILLE (MMV)
SEATTLE
SEATTLE (ZSE)
11/28/24-12/26/24
KAST MVFR
3:16 AM PST
Mist
Overcast 2,800'
5sm
54°F
48°F
30.10"Hg
180° 7kts
KAST 231116Z 18007KT 5SM BR OVC028 12/09 A3010
Add Your Business

KAST FBOs

Promote Listing
Astoria Regional Airport
UNICOM: 122.8
Phone: (503) 861-1222
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.39
Full Serve 4.79 4.89
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
503-861-1371
 135.375

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAST
Mon, 12/23 3:37 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
MVFR
4:00 AM PST - 7:00 AM PST
Broken 3,000'
6sm
200° 7kts
VFR
7:00 AM PST - 9:00 AM PST
Broken 4,000'
Scattered 2,500'
6sm
140° 4kts
VFR
9:00 AM PST - 7:00 PM PST
Broken 25,000'
Scattered 5,000'
6sm
100° 9kts
VFR
7:00 PM PST - 4:00 AM PST
Light Rain
Overcast 5,000'
6sm
160° 10kts
Gusts 20kts
KAST 231137Z 2312/2412 20007KT P6SM BKN030
   FM231500 14004KT P6SM SCT025 BKN040
   FM231700 10009KT P6SM SCT050 BKN250
   FM240300 16010G20KT P6SM -RA OVC050 AMD NOT SKED
KAST
Domestic
12/22/241340Z !AST 12/015 AST OBST TOWER LGT (ASR 1056060) 460959.10N1235451.20W (1.6NM WNW AST) 114.8FT (106.0FT AGL) U/S 2412221340-2503220500
12/18/242054Z !AST 12/013 AST RWY 08 VASI U/S 2412182054-2412262000EST
12/2/242114Z !AST 12/001 AST OBST TOWER LGT (ASR 1223622) 461040.60N1232616.00W (18.2NM E AST) 1022.0FT (222.1FT AGL) U/S 2412022114-2504012114
FDC
12/18/242103Z !FDC 4/8546 AST ODP ASTORIA RGNL, Astoria, OR.
ASTORIA THREE DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AST VOR OUT OF SERVICE. 2412182103-2501182103EST
12/18/242103Z !FDC 4/8544 AST IAP ASTORIA RGNL, ASTORIA, OR.
COPTER LOC RWY 26, AMDT 2...
ILS RWY 26, AMDT 3C...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AST VOR OUT OF SERVICE. 2412182103-2501182103EST
12/18/242103Z !FDC 4/8543 AST IAP ASTORIA RGNL, ASTORIA, OR.
COPTER LOC RWY 26, AMDT 2...
ILS RWY 26, AMDT 3C...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AST VOR/DME OUT OF SERVICE. 2412182103-2501182103EST
12/18/242100Z !FDC 4/8542 AST ODP ASTORIA RGNL, ASTORIA, OR.
ASTORIA THREE DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AST VOR/DME OUT OF SERVICE. 2412182100-2501182100EST
12/18/240825Z !FDC 4/8260 AST IAP ASTORIA RGNL, ASTORIA, OR.
ILS RWY 26, AMDT 3C...
VOR RWY 8, AMDT 12C...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AST VOR/DME UNMONITORED. 2412180825-2501170825EST
1/12/241431Z !FDC 4/3225 AST IAP ASTORIA RGNL, ASTORIA, OR.
RNAV (GPS) RWY 8, AMDT 1A...
LP MDA 440/HAT 426 ALL CATS.
CIRCLING CAT B MDA 820/HAA 806.
2401121431-2601121431EST
11/28/232150Z !FDC 3/6842 AST IAP ASTORIA RGNL, ASTORIA, OR.
VOR RWY 8, AMDT 12C...
S-8, CIRCLING: CAT A MDA 1140,1 1/4 VIS, HAT/HAA 1126, CAT B MDA 1140, VIS 1 1/2 HAT/HAA 1126.
MISSED APPROACH: CLIMB TO 1400 THEN CLIMBING LEFT TURN TO 4800 IN AST VOR/DME HOLDING PATTERN, CONTINUE CLIMB-IN-HOLD TO 4800.
PROCEDURE NA CAT C AND D.
MAX HOLDING 175 KIAS.
VDP 3.74 DME AST VOR/DME.
2311282150-2511282150EST
No
0800-1700
FOR FUEL OUTSIDE NML WORKING HRS CTC FBO 503-298-7531.
PORT OF ASTORIA
422 GATEWAY AVENUE, SUITE 100, SUITE 103
ASTORIA, OR 97103
Phone: 503-741-3300
MATT MCGRATH
422 GATEWAY AVENUE, SUITE 100
ASTORIA, OR 97103
Phone: 503-298-0909
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
AST
--
ACTVT MIRL RWY 08/26 & RY 14/32, MALSR RWY 26 AND REIL RWY 08 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Minor
None
None
Air Freight
Cargo Handling

Runway 08/26

5794 ft. x 100 ft.

ASPH
NONE
MED

60,000lbs
76,000lbs
119,000lbs
--
  Runway 08 Runway 26
True Heading 95°275°
Traffic Pattern Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 46° 09' 35"N 46° 09' 30"N
Longitude 123° 53' 23"W 123° 52' 01"W
Elevation 12' 11'
Threshold Crossing Height 38 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 14/32

4467 ft. x 100 ft.
ASPH
Excellent
NONE
MED

60,000lbs
76,000lbs
119,000lbs
--
  Runway 14 Runway 32
True Heading 154°334°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 46° 09' 43"N 46° 09' 04"N
Longitude 123° 52' 58"W 123° 52' 30"W
Elevation 12' 14'
Threshold Crossing Height 55 ft. AGL 61 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-10SERVICE FUEL: PORT OF ASTORIA, AVBL 1600-0100Z-, C503-861-1222. OT C503-298-7531, $50 FEE
A110-2MIGRATORY FLOCKS OF WATERFOWL ON & INVOF ARPT.
A110-3HIGH CONCENTRATION HEL OPNS IN AREA.
A110-6(E94) SAWRS.
A110-7RWY 14/32 HAS BASIC MARKINGS WITH SIDE STRIPES.
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC SEATTLE ARTCC AT 253-351-3694.
A110-9USCG ASTORIA AIR 345.0.
ASTORIA RGNL (ICAO: KAST, IATA: AST) is a public airport located in ASTORIA, OR.
