ALEXANDRIA RGNL/CHANDLER FLD - Airport Diagram

KAXN

ALEXANDRIA RGNL/CHANDLER FLD

PublicPUB

2 miles SW of ALEXANDRIA, MN

View on Map

Status

Operational

Coordinates

45° 51' 59"N 95° 23' 41"W

Elevation

1425' MSL

Pattern Alt

2425' MSL

Mag Variation

04E

Fuel

JET A, 100LL

FSS

PRINCETON (PNM)

Sectional

TWIN CITIES

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

11/28/24-12/26/24

KAXN VFR

5:53 AM CST RAW

Few 8,000'

Viz

7sm

Temp

23°F

Dew

20°F

Pres

29.98"Hg

Wind

340° 5kts

RMK

AO2 SLP176 T10501067 11033 21050 53013

KAXN 231153Z AUTO 34005KT 7SM FEW080 M05/M07 A2998 RMK AO2 SLP176 T10501067 11033 21050 53013

Add Your Business

KAXN FBOs

Promote Listing

Alexandria Aviation

UNICOM: 123.0

Phone: (320) 762-2111

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 12/22	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.65
Full Serve	5.95		5.75

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 123.0 CTAF 123.0

ASOS

320-763-7174

118.375

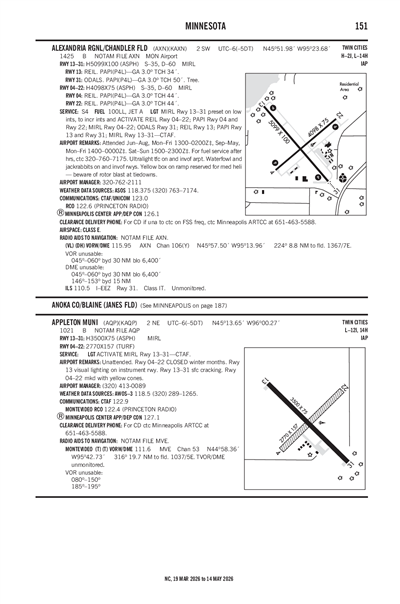

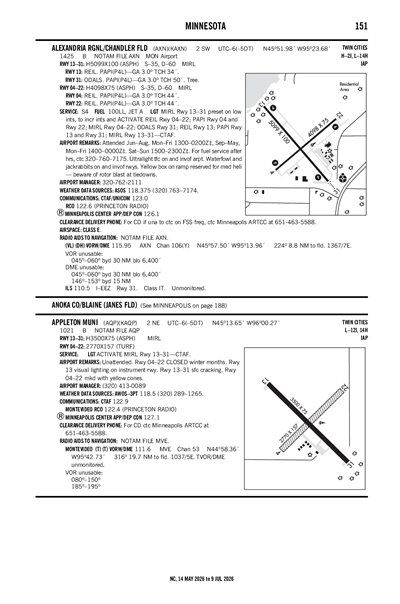

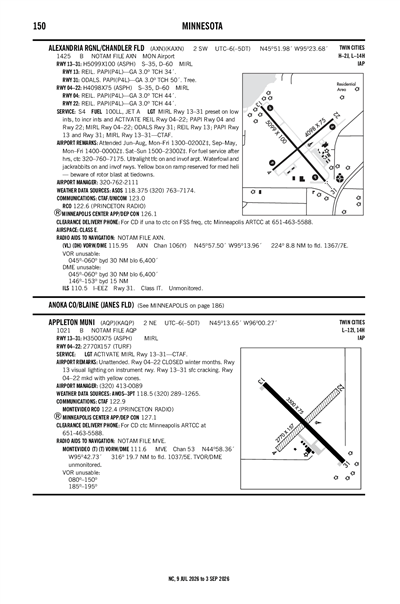

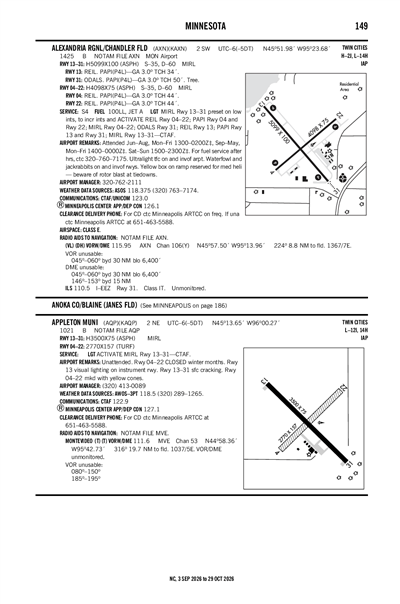

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KAXN

RAW

Reported

Mon, 12/23 5:20 AM CST

Valid

Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST

VFR

6:00 AM CST - 11:00 AM CST

Overcast 10,000'
Scattered 1,500'

Viz

6sm

Wind

340° 5kts

IFR

11:00 AM CST - 7:00 PM CST

Broken 800'

Viz

6sm

Wind

350° 7kts

IFR

7:00 PM CST - 10:00 PM CST

Broken 500'

Viz

6sm

Wind

Calm

LIFR

10:00 PM CST - 6:00 AM CST

Mist

Overcast 300'

Viz

2sm

Wind

Calm

KAXN 231120Z 2312/2412 34005KT P6SM SCT015 OVC100
   FM231700 35007KT P6SM BKN008
   FM240100 00000KT P6SM BKN005
   FM240400 00000KT 2SM BR OVC003

KAXN

Domestic
12/21/240201Z	!AXN 12/039 AXN RWY 04/22 CLSD 2412210201-2412262300
12/4/241418Z	!AXN 12/006 AXN OBST TOWER LGT (ASN 2023-AGL-7119-OE) 454741N0952048W (4.7NM SSE AXN) 1658FT (254FT AGL) U/S 2412041418-2501181417
11/13/242257Z	!AXN 11/003 AXN OBST TOWER LGT (ASR 1221923) 455233.90N0952806.30W (3.1NM W AXN) 1637.1FT (250.0FT AGL) U/S 2411132257-2503132257
7/29/241448Z	!AXN 07/010 AXN RWY 22 RWY END ID LGT U/S 2407291448-2501292111EST
FDC
8/19/241256Z	!FDC 4/1570 AXN IAP ALEXANDRIA RGNL/CHANDLER FLD, ALEXANDRIA, MN. VOR RWY 22, AMDT 15B... S-22 AND CIRCLING CAT C VISIBILITY 1 5/8. 2408191256-2608191256EST

ATC Tower

Attendance

JUN-AUG MON-FRI 0700-2000
SEP-MAY MON-FRI 0800-1800
SAT-SUN 0900-1700

Owner

CITY OF ALEXANDRIA
704 BROADWAY
ALEXANDRIA, MN 56308
Phone: 320-763-6678

Manager

KREG ANDERSON
2604 AGA DRIVE
ALEXANDRIA, MN 56308
Phone: 320-762-2111

FSS

PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF

NOTAM

AXN

Light Schedule

Lights

MIRL RY 13/31 PRESET ON LOW INTST; TO INCR INTST & ACTVT REIL RY 04/22; PAPI RY 04/22; MIRL RY 04/22; ODALS RY31; REIL RY 13; PAPI RY 13/31; MIRL RY 13/31 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

Dimensions

4098 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

35,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	49°	229°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	45° 51' 45"N	45° 52' 12"N
Longitude	95° 23' 59"W	95° 23' 15"W
Elevation	1,425'	1,418'
Threshold Crossing Height	44 ft. AGL	44 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 13/31

Dimensions

5099 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

35,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	139°	319°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	45° 52' 18"N	45° 51' 40"N
Longitude	95° 24' 07"W	95° 23' 21"W
Elevation	1,412'	1,422'
Threshold Crossing Height	34 ft. AGL	50 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		ODALS
Centerline Lights
Runway End Identifier Lights	Yes

A110-2	WATERFOWL & JACKRABBITS ON & INVOF RY.
A110-3	ULTRALIGHT TRAFFIC ON & INVOF ARPT.
A110-4	YELLOW BOX ON RAMP RESD FOR MED HEL - BEWARE OF ROTOR BLAST AT TIEDOWNS.
A110-5	FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.

ALEXANDRIA RGNL/CHANDLER FLD (ICAO: KAXN, IATA: AXN) is a public airport located in ALEXANDRIA, MN.
