KAXX

ANGEL FIRE

PublicPUB

1 miles N of ANGEL FIRE, NM

View on Map

Status

Operational

Coordinates

36° 25' 19"N 105° 17' 24"W

Elevation

8380' MSL

Pattern Alt

9380' MSL

Mag Variation

10E

Fuel

JET A (FSII), 100LL

FSS

ALBUQUERQUE (ABQ)

Sectional

DENVER

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

1/23/25-2/20/25

KAXX VFR

4:35 PM MST RAW

Clear

Viz

10sm

Temp

53°F

Dew

18°F

Pres

30.15"Hg

Wind

250° 6kts

RMK

AO2 T01151077

KAXX 042335Z AUTO 25006KT 10SM CLR 12/M08 A3015 RMK AO2 T01151077

Add Your Business

KAXX FBOs

Promote Listing

Angel Fire Airport

UNICOM: 122.8

Phone: (575) 643-8066

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 1/27	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.75		7.00
Full Serve	7.00		7.00

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

575-377-0526

118.025

FAA A/FD Pages

FAA A/FD Page

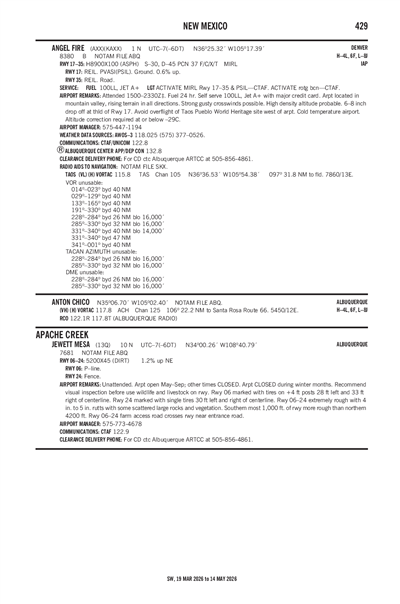

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

ANEKE TWO (OBSTACLE) (RNAV)

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

RNAV (GPS) RWY 17

Terminal Area Forecast

KLVS (47nm)

RAW

Reported

Wed, 2/5 4:21 AM MST

Valid

Wed, 2/5 5:00 AM MST - Thu, 2/6 5:00 AM MST

VFR

5:00 AM MST - 10:00 AM MST

Sky Clear

Viz

6sm

Wind

220° 11kts

Shear 270° 35kts @ 2000'

VFR

10:00 AM MST - 12:00 PM MST

Sky Clear

Viz

6sm

Wind

250° 19kts

Gusts 29kts

VFR

12:00 PM MST - 6:00 PM MST

Sky Clear

Viz

6sm

Wind

260° 28kts

Gusts 40kts

VFR

6:00 PM MST - 8:00 PM MST

Sky Clear

Viz

6sm

Wind

250° 17kts

Gusts 27kts

VFR

8:00 PM MST - 12:00 AM MST

Few 25,000'

Viz

6sm

Wind

240° 12kts

VFR

12:00 AM MST - 5:00 AM MST

Few 25,000'

Viz

6sm

Wind

220° 8kts

KLVS 051121Z 0512/0612 22011KT P6SM SKC WS020/27035KT
   FM051700 25019G29KT P6SM SKC
   FM051900 26028G40KT P6SM SKC
   FM060100 25017G27KT P6SM SKC
   FM060300 24012KT P6SM FEW250
   FM060700 22008KT P6SM FEW250

KAXX

Domestic
1/30/250652Z	!ABQ 01/287 AXX OBST TOWER LGT (ASR 1248835) 362252.80N1051420.80W (3.5NM SE AXX) 10771.0FT (149.9FT AGL) U/S 2501300652-2502140552

ATC Tower

Attendance

0800-1630

Owner

COLFAX COUNTY
PO BOX 1498
RATON, NM 88740
Phone: 575-445-9661

Manager

SCOTT MATTHEWS
3570 HWY 434
ANGEL FIRE, NM 87710
Phone: (575) 377-3171

FSS

ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF

NOTAM

ABQ

Light Schedule

Lights

ACTVT MIRL RY 17/35 & PSIL - CTAF.
ACTVT ROTG BCN - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 17/35

Dimensions

8900 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

37 /F/C/X/T

Single Wheel

30,000lbs

Double Wheel

45,000lbs

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	182°	2°
Traffic Pattern	Left	Left
Markings	NPI	BSC
Markings Condition	FAIR	FAIR
Latitude	36° 26' 03"N	36° 24' 35"N
Longitude	105° 17' 22"W	105° 17' 25"W
Elevation	8,322'	8,380'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	PSIL	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	ARPT LCTD IN MOUNTAIN VALLEY; RISING TERRAIN IN ALL DIRECTIONS. STRONG GUSTY CROSSWINDS POSSIBLE. HIGH DENSITY ALTITUDE PROBABLE.
A110-10	FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-7	6-8 INCH DROP OFF AT THLD OF RWY 17.
A110-8	AVOID OVERFLIGHT OF TAOS PUEBLO WORLD HERITGE SITE WEST OF ARPT.
A110-9	COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -30C.

ANGEL FIRE (ICAO: KAXX, IATA: AXX) is a public airport located in ANGEL FIRE, NM.
