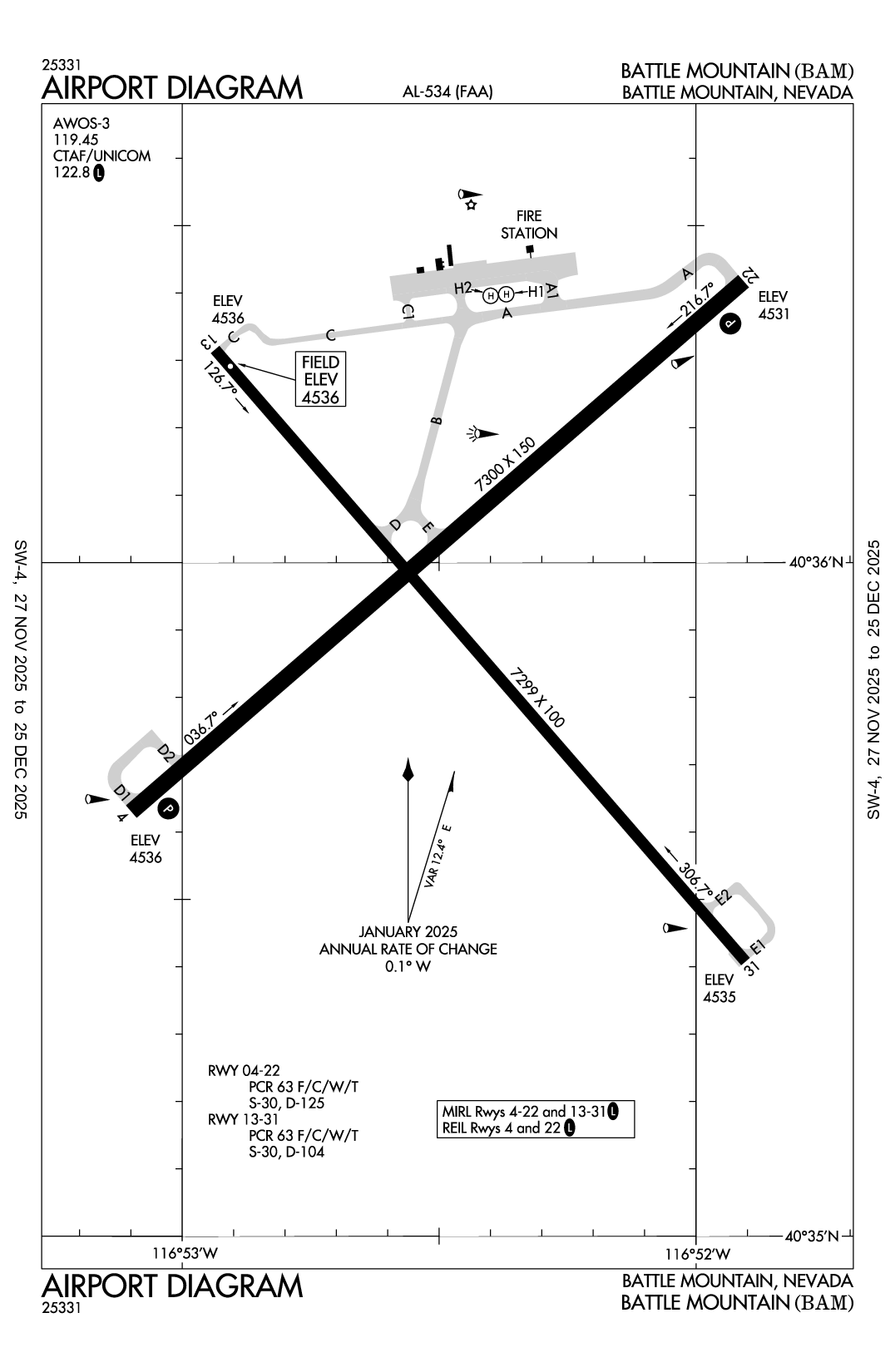

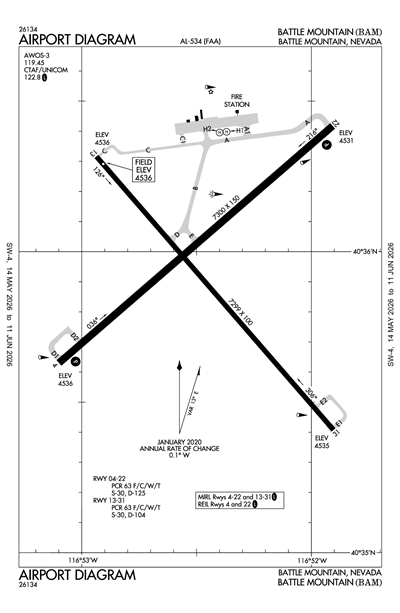

BATTLE MOUNTAIN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBAM
BATTLE MOUNTAIN
PublicPUB

3 miles SE of BATTLE MOUNTAIN, NV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 35' 57"N 116° 52' 28"W
4536' MSL
5536' MSL
13E
JET A, 100LL
RENO (RNO)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
2/20/25-3/20/25
KBAM VFR
7:35 AM PDT
Clear
10sm
27°F
25°F
30.26"Hg
210° 3kts
AO1
KBAM 091435Z AUTO 21003KT 10SM CLR M03/M04 A3026 RMK AO1
Add Your Business

KBAM FBOs

Promote Listing
Fallon Airmotive
UNICOM: 122.8
Phone: (775) 635-2245
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
775-635-8419
 119.45

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KWMC (46nm)
Sun, 3/9 4:20 AM PDT
Sun, 3/9 5:00 AM PDT - Mon, 3/10 5:00 AM PDT
VFR
5:00 AM PDT - 5:00 AM PDT
Sky Clear
6sm
VRB° 6kts
KWMC 091120Z 0912/1012 VRB06KT P6SM SKC AMD NOT SKED
KBAM
Domestic
1/24/251309Z !RNO 01/108 BAM RWY 22 RWY END ID LGT COMMISSIONED 2501241309-PERM
1/24/251307Z !RNO 01/107 BAM RWY 04 RWY END ID LGT COMMISSIONED 2501241307-PERM
1/24/251305Z !RNO 01/109 BAM RWY 04 PAPI GPA 3.2DEG COMMISSIONED 2501241305-PERM
1/24/251255Z !RNO 01/106 BAM RWY 04 PAPI COMMISSIONED 2501241255-PERM
12/2/241926Z !RNO 12/001 BAM RWY 04 VASI DECOMMISSIONED 2412021926-PERM
FDC
3/2/251255Z !FDC 5/8280 BAM IAP BATTLE MOUNTAIN, BATTLE MOUNTAIN, NV.
VOR RWY 4, AMDT 8...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BAM TACAN OUT OF SERVICE. 2503021255-2504021255EST
2/28/252148Z !FDC 5/8053 BAM IAP BATTLE MOUNTAIN, BATTLE MOUNTAIN, NV.
RNAV (GPS) RWY 22, ORIG...
RNAV (GPS) RWY 4, AMDT 2...
DISREGARD PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT.
2502282148-2701272148EST
No
OCT-MAY 0700-1700
JUN-SEP 0700-1800
AFT HRS CALL (775) 635-2245.
LANDER COUNTY
50 STATE ROUTE 305
BATTLE MOUNTAIN, NV 89820
Phone: 775-635-2885
BERT RAMOS
50 STATE ROUTE 305
BATTLE MOUNTAIN, NV 89820
Phone: 775-455-6860
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
ACTVT PAPI RWY 22; MIRL RWYS 04/22 & 13/31; PERI LGTS H1 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Crop Dusting
Air Ambulance
Annual Surveying

Runway 04/22

7300 ft. x 150 ft.
ASPH
Good
NONE
MED

30,000lbs
125,000lbs
--
--
  Runway 04 Runway 22
True Heading 49°229°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 35' 38"N 40° 36' 25"N
Longitude 116° 53' 06"W 116° 51' 54"W
Elevation 4,536' 4,531'
Threshold Crossing Height 26 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

7299 ft. x 100 ft.
ASPH
Poor
NONE
MED

30,000lbs
104,000lbs
--
--
  Runway 13 Runway 31
True Heading 139°319°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 40° 36' 19"N 40° 35' 24"N
Longitude 116° 52' 56"W 116° 51' 54"W
Elevation 4,536' 4,535'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

60 ft. x 60 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 72°252°
Traffic Pattern
Markings BSC
Markings Condition POOR
Latitude 40° 36' 24"N N/A
Longitude 116° 52' 22"W N/A
Elevation 4,528' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

60 ft. x 60 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H2 Runway
True Heading 72°252°
Traffic Pattern
Markings BSC
Markings Condition POOR
Latitude 40° 36' 24"N N/A
Longitude 116° 52' 24"W N/A
Elevation 4,528' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1(E81) EDGE REFLECTORS ON TWYS AND RAMP.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
BATTLE MOUNTAIN (ICAO: KBAM, IATA: BAM) is a public airport located in BATTLE MOUNTAIN, NV.
