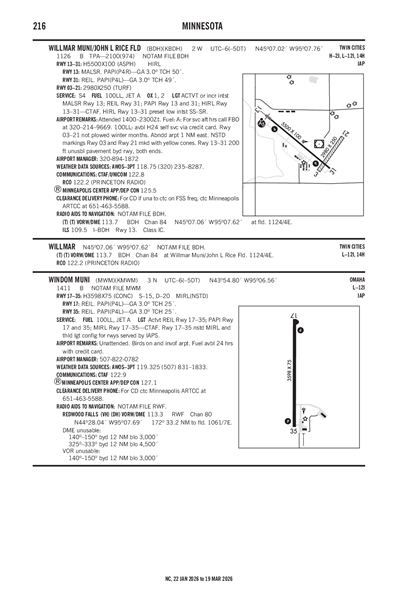

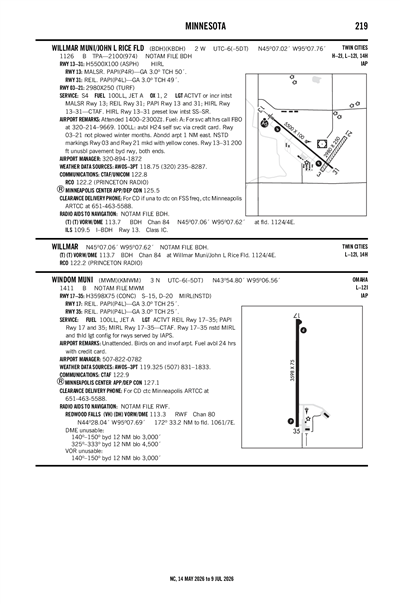

WILLMAR MUNI/JOHN L RICE FLD - Airport Diagram

KBDH

WILLMAR MUNI/JOHN L RICE FLD

PublicPUB

2 miles W of WILLMAR, MN

View on Map

Status

Operational

Coordinates

45° 07' 01"N 95° 07' 46"W

Elevation

1126' MSL

Pattern Alt

2100' MSL

Mag Variation

04E

Fuel

JET A, 100LL

FSS

PRINCETON (PNM)

Sectional

TWIN CITIES

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

5/16/24-6/13/24

KBDH VFR

11:15 PM CDT RAW

Broken 6,500'

Viz

10sm

Temp

59°F

Dew

57°F

Pres

30.01"Hg

Wind

120° 5kts

RMK

AO2

KBDH 010415Z AUTO 12005KT 10SM BKN065 15/14 A3001 RMK AO2

Add Your Business

KBDH FBOs

Promote Listing

Oasis Aero

UNICOM: 122.8

Phone: (320) 214-9669

Other: (320) 894-1872

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 5/30	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.27
Full Serve		5.48

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3PT

320-235-8287

118.75

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KRWF (34nm)

RAW

Reported

Fri, 5/31 9:16 PM CDT

Valid

Fri, 5/31 9:00 PM CDT - Sat, 6/1 7:00 PM CDT

VFR

9:00 PM CDT - 1:00 AM CDT

Light Showers and Rain

Overcast 3,500'

Viz

6sm

Wind

160° 5kts

MVFR

1:00 AM CDT - 8:00 AM CDT

Overcast 1,500'

Viz

6sm

Wind

VRB° 3kts

VFR

8:00 AM CDT - 7:00 PM CDT

Broken 3,500'

Viz

6sm

Wind

270° 4kts

KRWF 010216Z 0102/0124 16005KT P6SM -SHRA OVC035
FM010600 VRB03KT P6SM OVC015
FM011300 27004KT P6SM BKN035

KBDH

FDC
1/25/241419Z	!FDC 4/7881 BDH IAP WILLMAR MUNI/JOHN L RICE FLD, WILLMAR, MN. ILS OR LOC RWY 13, AMDT 1... DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, MVE VOR OUT OF SERVICE. 2401251419-2409051418EST

ATC Tower

Attendance

0800-1700

Owner

CITY OF WILLMAR
PO BOX 755
WILLMAR, MN 56201-0755
Phone: 320-235-4913

Manager

ERIC RUDNINGEN
PO BOX 755, 6600 HIGHWAY 40 W
WILLMAR, MN 56201-0755
Phone: 320-894-1872

FSS

PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF

NOTAM

BDH

Light Schedule

Lights

ACTVT OR INCR INTST MALSR RWY 13; REIL RWY 31; PAPI RWY 13 & 31; HIRL RWY 13/31 - CTAF. HIRL RWY 13/31 PRESET LOW INTST SS-SR.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High & Low Pressure

Other Services

Pilot Instruction
Aircraft Sales

Runway 03/21

Dimensions

2980 ft. x 250 ft.

Surface Type

TURF

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	35°	215°
Traffic Pattern
Markings
Markings Condition
Latitude	45° 06' 45"N	45° 07' 09"N
Longitude	95° 07' 38"W	95° 07' 14"W
Elevation	1,126'	1,123'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

Dimensions

5500 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	130°	310°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	45° 07' 21"N	45° 06' 46"N
Longitude	95° 08' 26"W	95° 07' 27"W
Elevation	1,124'	1,126'
Threshold Crossing Height	50 ft. AGL	49 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4L
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights		Yes

A110-2	ABNDD ARPT 1 NM EAST.
A110-3	FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.

WILLMAR MUNI/JOHN L RICE FLD (ICAO: KBDH, IATA: BDH) is a public airport located in WILLMAR, MN.
