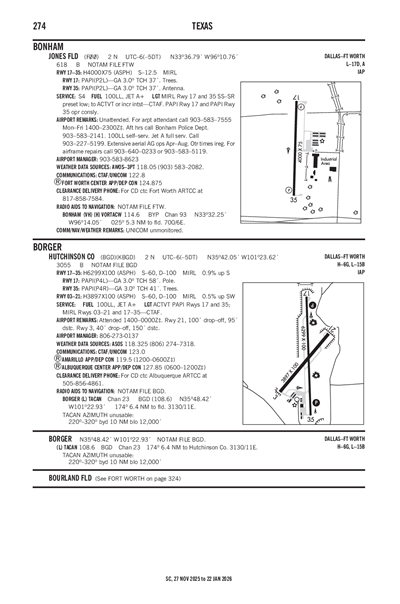

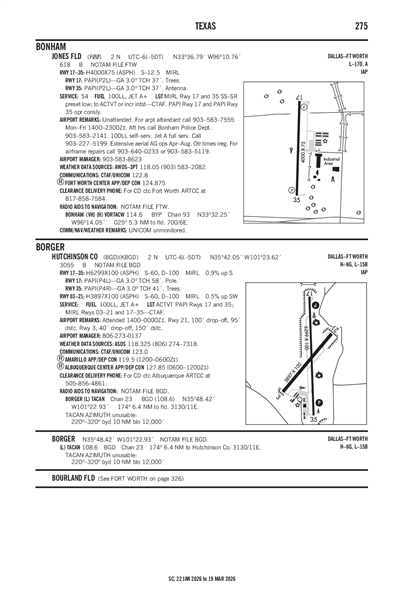

HUTCHINSON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBGD
HUTCHINSON COUNTY
PublicPUB

2 miles N of BORGER, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 42' 03"N 101° 23' 37"W
3055' MSL
4055' MSL
07E
JET A (FSII), 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
ALBUQUERQUE (ZAB)
1/23/25-2/20/25
KBGD VFR
1:51 AM CST
Clear
10sm
39°F
18°F
29.91"Hg
310° 3kts
AO2 SLP111 T00391078
KBGD 020751Z AUTO 31003KT 10SM CLR 04/M08 A2991 RMK AO2 SLP111 T00391078
Add Your Business

KBGD FBOs

Promote Listing
Hutchinson County Airport
UNICOM: 123.0
Phone: (806) 273-0137
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 1/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 4.59 3.69
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
806-274-7318
 118.325

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAMA (33nm)
Sat, 2/1 11:20 PM CST
Sun, 2/2 12:00 AM CST - Mon, 2/3 12:00 AM CST
VFR
12:00 AM CST - 3:00 AM CST
Broken 25,000'
6sm
230° 15kts
VFR
3:00 AM CST - 11:00 AM CST
Scattered 25,000'
6sm
300° 10kts
VFR
11:00 AM CST - 12:00 AM CST
Sky Clear
6sm
220° 12kts
KAMA 020520Z 0206/0306 23015KT P6SM BKN250
   FM020900 30010KT P6SM SCT250
   FM021700 22012KT P6SM SKC
KBGD
Domestic
1/29/251506Z !BGD 01/009 BGD OBST TOWER LGT (ASR 1217779) 354037.20N1012249.10W (1.6NM SSE BGD) 3246.1FT (166.0FT AGL) U/S 2501291506-2505291506
1/16/252111Z !BGD 01/003 BGD RWY 35 PAPI U/S 2501162111-2507162111EST
10/22/240150Z !BGD 10/005 BGD OBST TOWER LGT (ASR 1047583) 354105.00N1012314.00W (1.0NM SSE BGD) 3295.9FT (234.9FT AGL) U/S 2410220150-2502222359
No
0800-1800
HUTCHINSON COUNTY
COUNTY COURTHOUSE
STINNETT, TX 79083
Phone: 806-878-4000
BATHAZAR MEDRANO
BOX 3470
BORGER, TX 79008
Phone: 806-273-0137
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
BGD
--
ACTVT PAPI RWYS 17 & 35; MIRL RWYS 03/21 & 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 03/21

3897 ft. x 100 ft.
ASPH
Excellent
NONE
MED

60,000lbs
100,000lbs
--
--
  Runway 03 Runway 21
True Heading 40°220°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 41' 46"N 35° 42' 15"N
Longitude 101° 23' 54"W 101° 23' 23"W
Elevation 3,035' 3,017'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

6299 ft. x 100 ft.
ASPH
Excellent
NONE
MED

60,000lbs
100,000lbs
--
--
  Runway 17 Runway 35
True Heading 178°358°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 42' 36"N 35° 41' 34"N
Longitude 101° 23' 37"W 101° 23' 35"W
Elevation 2,998' 3,055'
Threshold Crossing Height 58 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-2RWY 21, 100 FT DROP-OFF, 95 FT DSTC.
A110-3RWY 3, 40 FT DROP-OFF, 150 FT DSTC.
HUTCHINSON COUNTY (ICAO: KBGD, IATA: BGD) is a public airport located in BORGER, TX.
