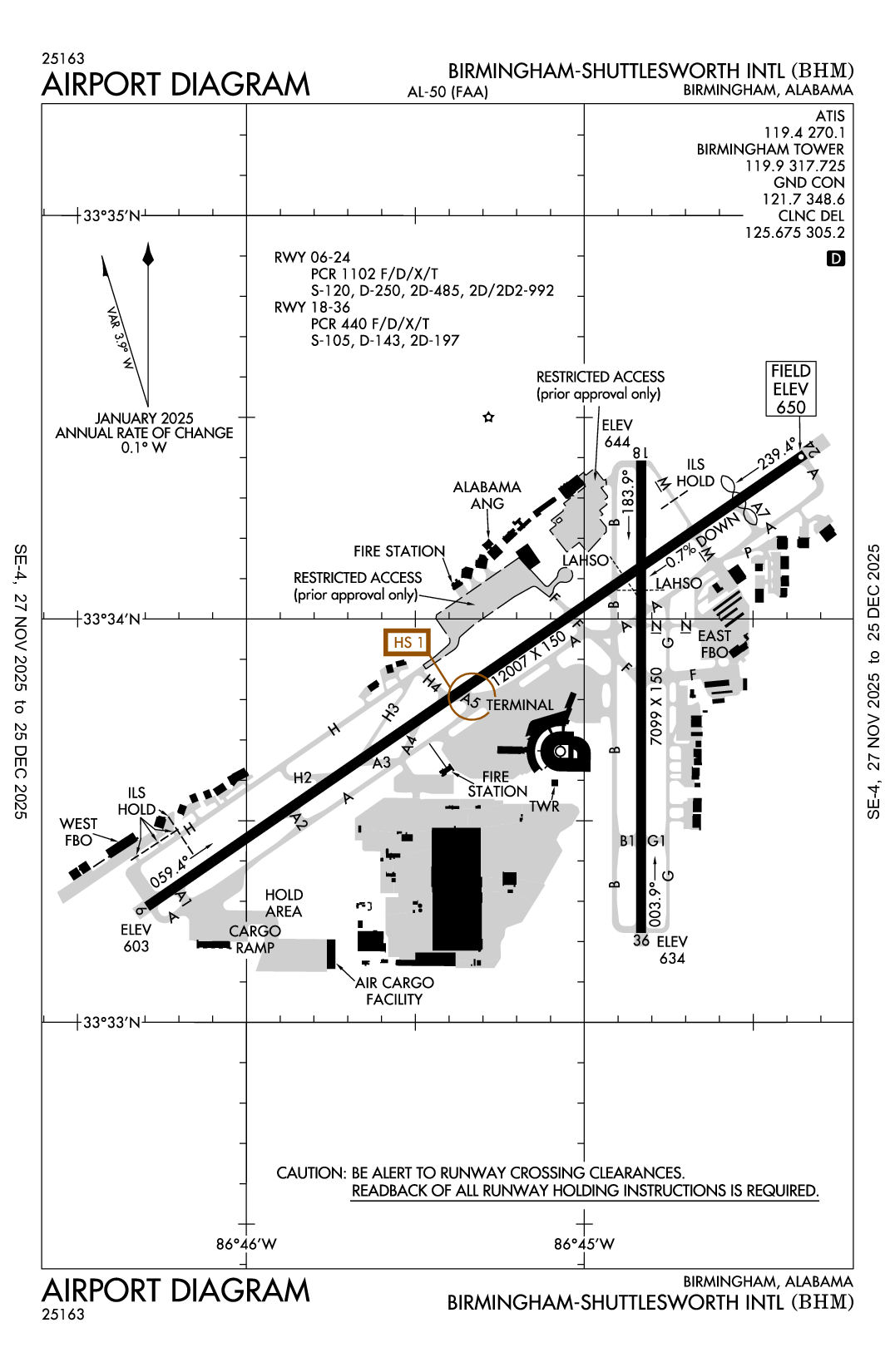

BIRMINGHAM-SHUTTLESWORTH INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBHM
BIRMINGHAM-SHUTTLESWORTH INTL
PublicPUB

4 miles NE of BIRMINGHAM, AL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 33' 50"N 86° 45' 08"W
650' MSL
1650' MSL
03W
JET A, 100LL
ANNISTON (ANB)
ATLANTA
ATLANTA (ZTL)
11/28/24-12/26/24
KBHM VFR
5:53 AM CST
Clear
10sm
36°F
25°F
30.43"Hg
060° 4kts
AO2 SLP307 T00221039 10033 20006 53005
KBHM 231153Z 06004KT 10SM CLR 02/M04 A3043 RMK AO2 SLP307 T00221039 10033 20006 53005

KBHM FBOs

Atlantic Aviation
UNICOM: 131.975
Phone: (205) 849-5520
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/16
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.30 6.77
Fuel Notes
Prices include tax
Million Air
UNICOM: 130.3
Phone: (659) 223-3660
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/18
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.04 7.17 7.32
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
119.4

Approach/Departure

APCH/P DEP/P
231-049
127.675
APCH/P DEP/P IC
050-230
123.8

Clearance Delivery

CD PRE TAXI CLNC
125.675

Emergency

EMERG
121.5

Ground

GND/P
121.7

Tower

LCL/P
119.9
LCL/S
118.25

Other

CLASS C
050-230
123.8
CLASS C
231-049
127.675

Terminal Area Forecast

KBHM
Mon, 12/23 5:36 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 9:00 AM CST
Sky Clear
6sm
VRB° 3kts
VFR
9:00 AM CST - 5:00 PM CST
Sky Clear
6sm
130° 7kts
VFR
5:00 PM CST - 6:00 AM CST
Sky Clear
6sm
VRB° 3kts
KBHM 231136Z 2312/2412 VRB03KT P6SM SKC
   FM231500 13007KT P6SM SKC
   FM232300 VRB03KT P6SM SKC
KBHM
Domestic
12/21/241701Z !BHM 12/144 BHM OBST TOWER LGT (ASN 2021-ASO-44068-OE) 333520N0870007W (12.6NM W BHM) 832FT (260FT AGL) U/S 2412211701-2502041701
12/19/240654Z !BHM 12/135 BHM OBST TOWER LGT (ASN 2024-ASO-5136-OE) 333628N0865522W (8.9NM WNW BHM) 826FT (265FT AGL) U/S 2412190654-2502020645
12/19/240523Z !BHM 12/134 BHM OBST TOWER LGT (ASR 1040161) 334114.00N0864922.30W (8.1NM NNW BHM) 1081.7FT (447.8FT AGL) U/S 2412190523-2501030423
12/17/240042Z !BHM 12/119 BHM OBST TOWER LGT (ASR 1300774) 333058.30N0864504.70W (2.9NM S BHM) 1122.0FT (160.1FT AGL) U/S 2412170042-2412312342
12/13/241636Z !BHM 12/088 BHM RWY 36 RWY END ID LGT U/S 2412131636-2501242000EST
12/11/240711Z !BHM 12/060 BHM OBST TOWER LGT (ASR 1270325) 334022.60N0870419.60W (17.2NM WNW BHM) 781.2FT (310.0FT AGL) U/S 2412110711-2412260611
12/5/241701Z !BHM 12/021 BHM OBST TOWER LGT (ASR 1294524) 333600.50N0864322.00W (2.6NM NE BHM) 944.6FT (199.1FT AGL) U/S 2412051701-2501191701
12/2/241534Z !BHM 12/001 BHM OBST TOWER LGT (ASR 1293685) 333213.90N0864254.10W (2.4NM SE BHM) 982.3FT (199.1FT AGL) U/S 2412021534-2504022359
11/29/241320Z !BHM 11/151 BHM OBST TOWER LGT (ASR 1010002) 335216.60N0865025.90W (18.9NM NNW BHM) 1135.2FT (264.1FT AGL) U/S 2411291320-2502270500
11/5/240335Z !BHM 11/021 BHM OBST TOWER LGT (ASR 1009818) 334028.00N0865739.00W (12.3NM WNW BHM) 669.9FT (254.9FT AGL) U/S 2411050335-2502020500
10/24/241049Z !BHM 10/142 BHM RWY 24 PAPI HIGH INTST U/S 2410241049-2505292000EST
8/1/242002Z !BHM 08/002 BHM TWY H2 CLSD TO ACFT WINGSPAN MORE THAN 105FT 2408012002-2412312300
8/1/241953Z !BHM 08/003 BHM TWY H3 CLSD TO ACFT WINGSPAN MORE THAN 105FT 2408011953-2412312300
7/31/242213Z !BHM 07/145 BHM TWY H BTN TWY H4 AND APCH END RWY 06 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2407312213-2412312359
FDC
12/10/240646Z !FDC 4/3980 BHM ODP BIRMINGHAM-SHUTTLESWORTH INTL, BIRMINGHAM, AL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8...
ADD TAKEOFF OBSTACLE NOTE: RWY 36, TEMPORARY EQUIPMENT 1438FT FROM DER, 687FT LEFT OF CENTERLINE, 21FT AGL/ 746FT MSL (2020-ASO-3334-NRA), TEMPORARY EQUIPMENT 1438FT FROM DER, 653FT LEFT OF CENTERLINE, 21FT AGL/ 746FT MSL (2020-ASO-3335-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2412100646-2502140646EST
6/26/241612Z !FDC 4/3969 BHM IAP BIRMINGHAM-SHUTTLESWORTH INTL, BIRMINGHAM, AL.
LOC RWY 18, AMDT 2C...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OKW VOR OUT OF SERVICE. 2406261612-2502051612EST
Yes
ALL
BIRMINGHAM AIRPORT AUTHORITY
5900 MESSER AIRPORT HWY
BIRMINGHAM, AL 35212
Phone: (205) 599-0505
RONALD MATHIEU
BIRMINGHAM AIRPORT AUTHORITY, 5900 MESSER AIRPORT HWY
BIRMINGHAM, AL 35212
Phone: (205) 599-0505
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
BHM
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 06/24

12007 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
65 /F/C/X/T
175,000lbs
205,000lbs
350,000lbs
--
  Runway 06 Runway 24
True Heading 55°235°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 33° 33' 17"N 33° 34' 25"N
Longitude 86° 46' 18"W 86° 44' 21"W
Elevation 603' 650'
Threshold Crossing Height 68 ft. AGL 69 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18/36

7099 ft. x 150 ft.
ASPH
Good
GRVD
MED
45 /F/C/X/T
75,000lbs
170,000lbs
240,000lbs
--
  Runway 18 Runway 36
True Heading 180°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 34' 24"N 33° 33' 13"N
Longitude 86° 44' 50"W 86° 44' 50"W
Elevation 644' 634'
Threshold Crossing Height 51 ft. AGL --
Visual Glide Path Angle 3.2° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-15TWY F BTN RWY 18/36 & TWY G RSTRD TO ACFT 100000 LBS OR LESS.
A110-16ANG: PPR RQR FOR ANG RAMP. NML OPR HRS 1300-2330Z++ TUE-FRI, CLSD WKNDS & HOL. NO SVC AVBL OUTSIDE THESE HRS WITHOUT PRIOR APVL. NO LCL OR ROUND-ROBIN FLT BY TRAN ACFT. CALL AIRFIELD OPS DSN 778-2555, C205-714-2555 FOR PPR 72 HR PRIOR (96 HRS FOR CARGO MSN). ALL INBD ACFT CTC ANG COMD POST "VULCN CONTROL" NO LATER THAN 15 MIN PRIOR TO LDG WITH PPR NR AND SUPPORT REQ. SPACE-A CAPABILITIES EXTREMELY LTD, PAX SVC LTD AVAILABILITY.
A110-17TWY H S OF TWY H4 RSTRD TO ACFT WITH WINGSPAN LESS THAN 118 FT.
A110-18TWY A BTN TWY A HLDG BAY AND TWY A3 RSTRD TO ACFT WITH WINGSPAN LESS THAN 150 FT.
A110-19TWY H2 RSTRD TO ACFT WITH WINGSPAN LESS THAN 105 FT.
A110-2TWY G RSTRD TO ACFT 65000 LBS OR LESS.
A110-20TWY H3 RSTRD TO ACFT WITH WINGSPAN LESS THAN 105 FT.
A110-3TWY M N OF RWY 6/24 RSTRD TO ACFT 75000 LBS OR LESS.
A110-6TWY N RSTRD TO ACFT 204000 LBS OR LESS.
A110-7BIRD ACTV INVOF RWYS.
BIRMINGHAM-SHUTTLESWORTH INTL (ICAO: KBHM, IATA: BHM) is a public airport located in BIRMINGHAM, AL.
