iFlightPlanner



...

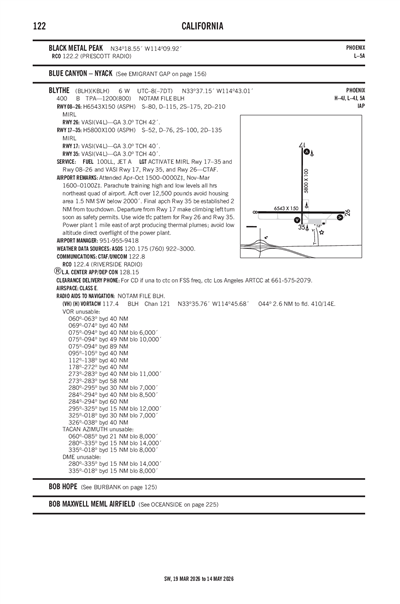

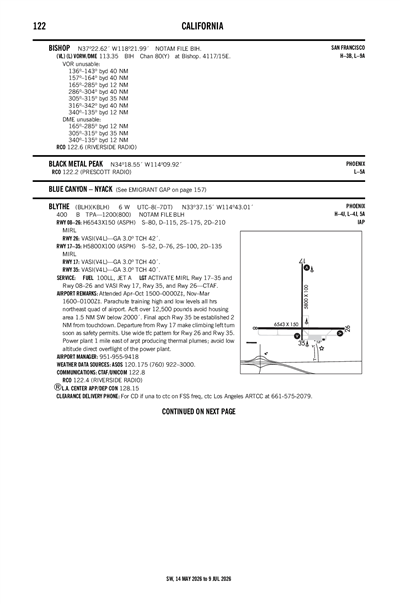

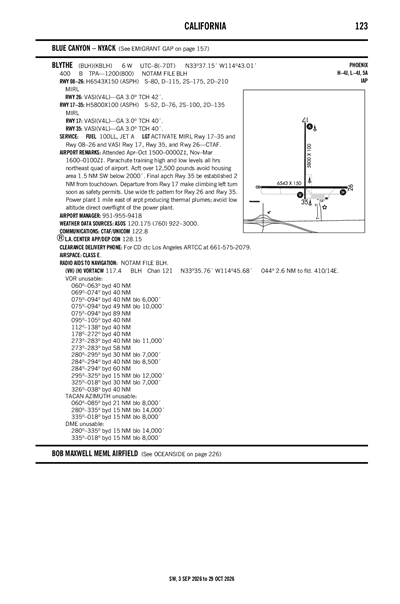

BLYTHE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBLH
BLYTHE
PublicPUB

6 miles W of BLYTHE, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 37' 09"N 114° 43' 01"W
400' MSL
1200' MSL
13E
JET A, 100LL
RIVERSIDE (RAL)
PHOENIX
LOS ANGELES (ZLA)
11/28/24-12/26/24
KBLH VFR
3:52 AM PST
Clear
10sm
46°F
17°F
30.05"Hg
300° 4kts
AO2 SLP174 T00781083 10133 20078 56002 $
KBLH 231152Z AUTO 30004KT 10SM CLR 08/M08 A3005 RMK AO2 SLP174 T00781083 10133 20078 56002 $
Add Your Business

KBLH FBOs

Promote Listing
Patton Aviation
UNICOM: 122.8
Phone: (760) 922-6125
Other: (760) 265-1365
No Rating Available
1 Review (Read | Sign In To Write)
1 out of 1 Recommend
Independent
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.73 6.92 6.97
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
760-922-3000
 120.175

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBLH
Mon, 12/23 3:20 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
VFR
4:00 AM PST - 8:00 PM PST
Scattered 25,000'
6sm
VRB° 4kts
VFR
8:00 PM PST - 4:00 AM PST
Scattered 25,000'
6sm
330° 5kts
KBLH 231120Z 2312/2412 VRB04KT P6SM SCT250
   FM240400 33005KT P6SM SCT250
KBLH
Domestic
12/6/240104Z !BLH 12/004 BLH OBST TOWER LGT (ASR 1252114) 331728.20N1144346.80W (19.7NM S BLH) 470.5FT (202.8FT AGL) U/S 2412060104-2503052359
2/29/242220Z !BLH 02/011 BLH OBST TOWER LGT (ASR 1012219) 333650.00N1144610.00W (2.6NM W BLH) 891.1FT (120.1FT AGL) U/S 2402292220-2502282359
FDC
9/5/231420Z !FDC 3/5580 BLH IAP BLYTHE, BLYTHE, CA.
VOR/DME RWY 26, AMDT 6...
PROCEDURE NA.
2309051420-2509051419EST
No
APR-OCT 0700-1600
NOV-MAR 0800-1700
COUNTY OF RIVERSIDE
4080 LEMON STREET, 14TH FLOOR
RIVERSIDE, CA 90501
Phone: 951-955-9418
ANGELA JAMISON
4080 LEMON STREET, 14TH FLOOR
RIVERSIDE, CA 92501
Phone: 951-955-9418
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
BLH
--
ACTVT VASI RWY 17, 35 & 26; MIRL RWY 17/35 & 08/26 - CTAF
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Air Ambulance
Cargo Handling
Parachute Jump Activity

Runway 08/26

6543 ft. x 150 ft.
ASPH
Fair
NONE
MED

80,000lbs
115,000lbs
210,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 33° 36' 60"N 33° 36' 60"N
Longitude 114° 43' 40"W 114° 42' 22"W
Elevation 397' 396'
Threshold Crossing Height -- 42 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

5800 ft. x 100 ft.
ASPH
Fair
NONE
MED

52,000lbs
76,000lbs
135,000lbs
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 33° 37' 48"N 33° 36' 51"N
Longitude 114° 43' 00"W 114° 43' 01"W
Elevation 399' 394'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1ACFT OVER 12500 LBS AVOID HOUSING AREA 1.5 NM SW BLO 2000' FINAL APCH RWY 35 BE ESTABD 2 NM FM TOUCHDOWN.
A110-2DEP FM RY 17 MAKE CLIMBING LEFT TURN SOON AS SAFETY PERMITS. USE WIDE TFC PATTERN FOR RYS 26 & 35.
A110-3POWER PLANT 1 MILE EAST OF ARPT PRODUCING THERMAL PLUMES; AVOID LOW ALTITUDE DIRECT OVERFLIGHT OF THE POWER PLANT.
A110-4PAJA. PRCHT TRNG HIGH AND LOW LVLS ALL HRS NE QUAD OF ARPT
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC LOS ANGELES ARTCC AT 661-575-2079.
BLYTHE (ICAO: KBLH, IATA: BLH) is a public airport located in BLYTHE, CA.
