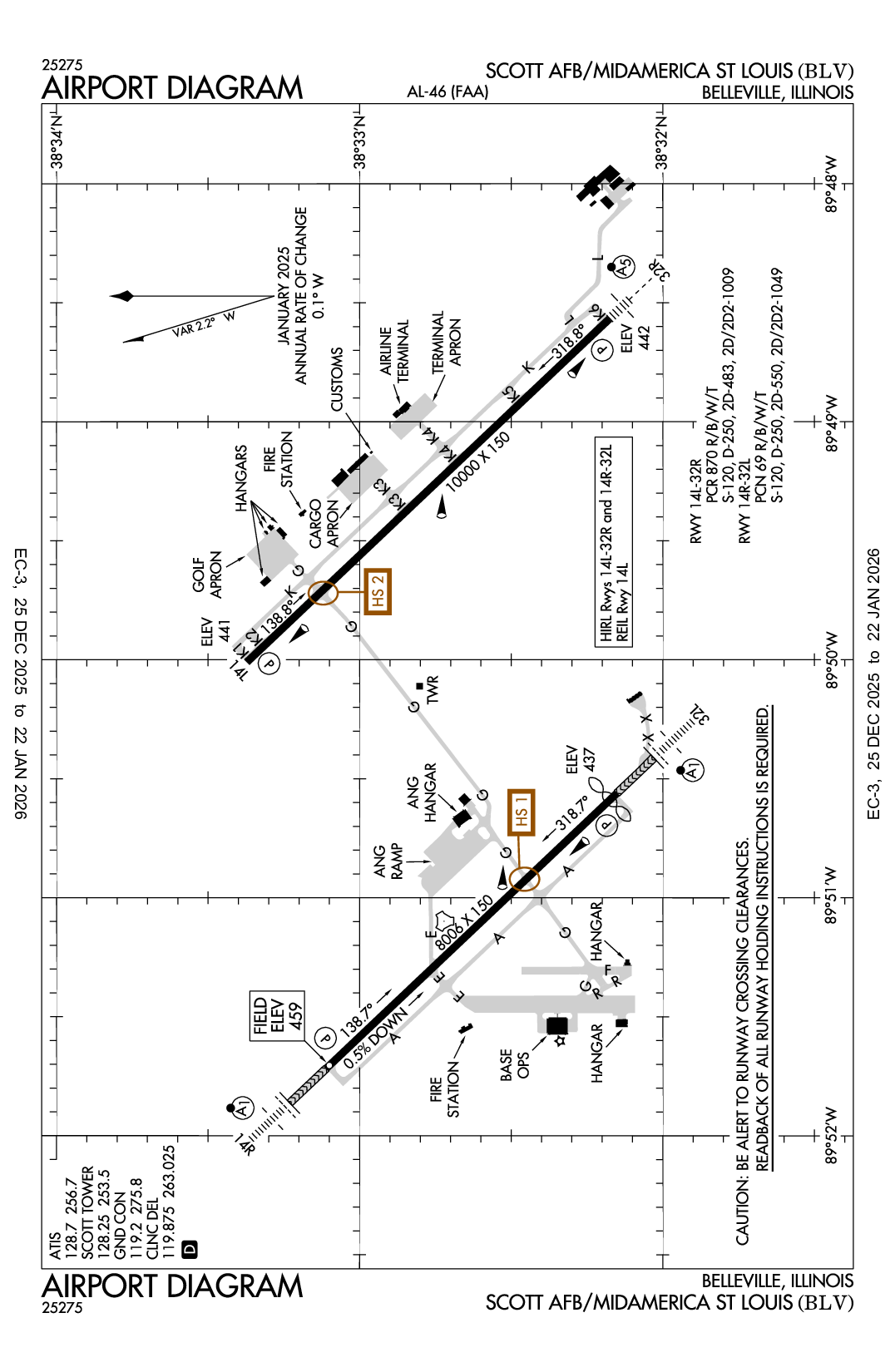

SCOTT AFB/MIDAMERICA ST LOUIS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBLV
SCOTT AFB/MIDAMERICA ST LOUIS
PublicPUB

14 miles E of BELLEVILLE, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 32' 43"N 89° 50' 07"W
459' MSL
1459' MSL
02W
JET A (FSII), 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
11/28/24-12/26/24
KBLV VFR
5:55 AM CST
Overcast 7,500'
Broken 5,000'
10sm
42°F
27°F
30.17"Hg
210° 9kts
AO2 SLP223 T00551028 10056 20007 56013
KBLV 231155Z AUTO 21009KT 10SM BKN050 OVC075 06/M03 A3017 RMK AO2 SLP223 T00551028 10056 20007 56013
Add Your Business

KBLV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
Hours: 1200-0600Z++
 128.7

Clearance Delivery

CD/P
 119.875

Ground

GND/P
 119.2

Tower

LCL/P
 128.25

Other

AR OPS
 49.95
COMD POST
126 ARW
 138.55
COMD POST
375 AMW
 139.9
PTD
 142.3

Terminal Area Forecast

KBLV
Mon, 12/23 2:00 AM CST
Mon, 12/23 2:00 AM CST - Tue, 12/24 8:00 AM CST
VFR
2:00 AM CST - 8:00 AM CST
Scattered 15,000'
Few 5,000'
6sm
30.18"Hg
180° 9kts
Shear 190° 35kts @ 2000'
MVFR
Becoming 8:00 AM CST - 12:00 PM CST
Overcast 4,000'
Broken 3,000'
6sm
30.18"Hg
190° 12kts
Gusts 25kts
Shear 190° 35kts @ 2000'
MVFR
Becoming 12:00 PM CST - 6:00 PM CST
Overcast 3,500'
Broken 2,000'
Few 1,500'
6sm
30.15"Hg
190° 12kts
Gusts 20kts
Shear 190° 35kts @ 2000'
MVFR
Becoming 6:00 PM CST - 2:00 AM CST
Broken 1,500'
6sm
30.15"Hg
190° 6kts
MVFR
Becoming 2:00 AM CST - 8:00 AM CST
Overcast 1,000'
6sm
30.21"Hg
030° 6kts
TAF KBLV 230800Z 2308/2414 18009KT 9999 FEW050 SCT150 WS020/19035KT QNH3019INS
   BECMG 2314/2315 19012G25KT 9999 BKN030 OVC040 WS020/19035KT QNH3019INS
   BECMG 2318/2319 19012G20KT 9999 FEW015 BKN020 OVC035 WS020/19035KT QNH3014INS
   BECMG 2400/2401 19006KT 9999 BKN015 QNH3016INS
   BECMG 2408/2409 03006KT 9999 OVC010 QNH3021INS TX08/2322Z TN02/2308Z
KBLV
Domestic
12/9/242157Z !BLV 12/039 BLV TWY L TWY DIRECTION SIGN SOUTHWEST SIDE LGT U/S 2412092157-2501081930
FDC
7/15/241313Z !FDC 4/2117 BLV SID SCOTT AFB/MIDAMERICA ST LOUIS, BELLEVILLE, IL.
PLESS FIVE DEPARTURE...
NASHVILLE TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BNA VOR OUT OF SERVICE. 2407151313-2502241313EST
6/4/241730Z !FDC 4/3218 BLV SID SCOTT AFB/MIDAMERICA ST LOUIS, BELLEVILLE, IL.
LINDBERGH EIGHT DEPARTURE...
TAKEOFF MINIMUMS: RWY 32L, 300-2 OR STANDARD WITH MINIMUM CLIMB OF
250 FT/NM TO 800.
ALL OTHER DATA REMAINS AS PUBLISHED. 2406041730-2606041730EST
6/4/241729Z !FDC 4/3217 BLV ODP SCOTT AFB/MIDAMERICA ST LOUIS, BELLEVILLE, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF MINIMUMS: RWY 32L, 300-2 OR STANDARD WITH MINIMUM CLIMB OF 250 FT/NM TO 800.
TAKEOFF OBSTACLE NOTES: RWY 32L: TREE 1730 FT FROM DER, 951 FT RIGHT OF CENTERLINE, 530 FT MSL. TREES BEGINNING 1867 FT FROM DER, 66 FT RIGHT OF CENTERLINE, UP TO 548 FT MSL. TREE 3540 FT FROM DER, 77 FT RIGHT OF CENTERLINE, 549 FT MSL. TREE 3814 FT FROM DER, 278 FT RIGHT OF CENTERLINE, 562 FT MSL. TREE 4623 FT FROM DER, 1403 FT RIGHT OF CENTERLINE, 585 FT MSL. TREES BEGINNING 4786 FT FROM DER, 1539 FT RIGHT OF CENTERLINE, UP TO 595 FT MSL. TREE 5475 FT FROM DER, 912 FT LEFT OF CENTERLINE, 596 FT MSL. TREES BEGINNING 1 NM FROM DER, 1543 FT LEFT OF CENTERLINE, UP TO 647 FT MSL. TREES BEGINNING 1.2 NM FROM DER, 2266 FT LEFT OF CENTERLINE, UP TO 668 FT MSL. TREES BEGINNING 1.3 NM FROM DER, 2112 FT LEFT OF CENTERLINE, UP TO 699 FT MSL. TREES BEGINNING 1.4 NM FROM DER, 2629 FT LEFT OF CENTERLINE, UP TO 701 FT MSL. TREE 1.6 NM FROM DER, 2943 FT LEFT OF CENTERLINE, 707 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2406041729-2606041729EST
3/20/241206Z !FDC 4/9016 BLV IAP SCOTT AFB/MIDAMERICA ST LOUIS, BELLEVILLE, IL.
ILS OR LOC RWY 32L, AMDT 2B...
TACAN REQUIRED..
2403201206-2603201206EST
11/7/232136Z !FDC 3/8620 BLV IAP SCOTT AFB/MIDAMERICA ST LOUIS, BELLEVILLE, IL.
ILS OR LOC RWY 32R, ORIG-K...
FOR INOP ALS, INCREASE S-ILS 32R CAT E VISIBILITY TO RVR 4000 AND INCREASE S-LOC CAT E VISIBILITY TO RVR 5000.
2311072136-2511072136EST
Military
10/30/241555Z AERODROME RWY 14R/32L SFL'S OTS
10/22/241909Z AERODROME KBLV TACAN UNMONITORED
10/16/242215Z AERODROME AERODROME CRANE 200' AGL 644' MSL LOCATED 38-32-27.26N 89-52-04.88W DAILY
10/8/241901Z AERODROME LIMITED FLIGHT SERVICES AVAILABLE, OFFICIAL BUSINESS ONLY, VFR PATTERN UNAVAILABLE 2200Z - 1200Z (1700L-0700L) PRACTICE RADAR APPROACHES AVAILABLE 24/7, 1 OCT 24 - 30 APR 25
Yes
ALL
ST CLAIR COUNTY & USAF
10 PUBLIC SQUARE
BELLEVILLE, IL 62220
Phone: 618-825-2203
DARREN V. JAMES
9656 AIR TERMINAL DR, STE 250
MASCOUTAH, IL 62258-5501
Phone: 618-566-5240
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
BLV
--
--
N/A
Yes
No
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Air Freight
Cargo Handling

Runway 14L/32R

10000 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
483,000lbs
1,009,000lbs
  Runway 14L Runway 32R
True Heading 137°317°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 33' 22"N 38° 32' 11"N
Longitude 89° 50' 01"W 89° 48' 34"W
Elevation 441' 442'
Threshold Crossing Height 71 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 14R/32L

8006 ft. x 150 ft.
ASPH
CONC
GRVD
HIGH
69 /R/B/W/T
120,000lbs
250,000lbs
550,000lbs
1,049,000lbs
  Runway 14R Runway 32L
True Heading 137°317°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 33' 07"N 38° 32' 09"N
Longitude 89° 51' 43"W 89° 50' 34"W
Elevation 459' 437'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-17TRANSIENT MIL ACFT PARKING ON CIVILLIAN RAMPS CONTACT MIDAMERICA ON 618-566-5265 OR 618-566-5227 FOR AVBL SVCS & PARKING INFO.
A110-21DEER, BIRDS & WATERFOWL ON & INVOF ARPT.
A110-3SAFB IS UNSUITABLE FOR HAZARDOUS CARGO WITHOUT PRIOR COORDINATION AND SHOULD NOT BE CONSIDERED A ROUTINE LOCATION FOR MISSIONS CARRYING HAZARDOUS CARGO.
A110-31JASU: SCOTT AFB 6(A/M32A-86) 3(AM32-95). MIDAMERICA 2 (A/M 32A-60B) 1 (AM32-95) 2 (A/M 32A-86) 1 (MD-4).
A110-32CIV ACFT FUEL: A+ 100LL (ARPT TRML SVC, AVBL 1400-0200Z++, C618-566-5265.)
A110-33FLUID: SCOTT AFB SP(MIL) PRESAIR(MIL) LHOX(MIL) LOX(MIL).
A110-34OIL: SCOTT AFB O-133-148(MIL) SOAP(MIL)
A110-35TRAN ALERT SCOTT AFB: OPR 1200-0400Z++ WKD; 1400-2300Z++ WKEND; CLSD FEDERAL HOL. MILITARY SVC AT MIDAMERICA (CIVILIAN SIDE) OPR 1400-0200Z++, 24 HR PPR OT. FBO MILITARY SVC LTD TO REFUELING (DLA CONTRACT) AND DE-ICING. CTC FBO AT C618-566-5265 FOR SPECIFIC PRK AND SVC.
A110-36MILITARY USE: SEE FLIP AP/1 SUPPLEMENTARY REMARKS.
A110-37SAFB PPR DSN 576-1861, C618-256-1861, FAX EXTN 6718. ALL INBD PAX/CARGO ACFT MUST CTC 375 COMD POST NO LATER THAN 30 MIN PRIOR TO LDG. AMC ACFT RSTD DUR BASH PHASEII AND WHEN ARPT ENTERS BIRD WATCH CONDITIONS MODERATE OR SEVERE.
A110-38SCOTT AFB RSTD: WHEN ARPT IS CODE MODERATE OR SEVER NO LCL IFR/VFR PAT. WHEN ARPT CODE SEVER, TKOF/LDG PROH WO 375 OG/CC APVL. DUR PHASEII, DLY BASH WINDOWS ARE ESTIMATED AS SR+1-SR-1 AND SS+1, SS-1.
A110-39SCOTT AFB RSTD: DUR BASH WINDOW (WHEN CODE LOW) NO TRANS PAT PERMS; INITIAL TKOF/FULL STOP LDG ARE AT AC DISCRETION. CTC ATIS, PTD, 375 AW COMD POST OR TWR FOR CURRENT CODE.
A110-41DENSE CIV AIR TFC ALL QUAD, ALL ALT. USE CAUTION WHEN UTILIZING TWY G, 0.25 NM E OF RY 14R-32L INT, GRAD CHG OF 3 DEG AND A 70 DEG TURN PRESENT, ON COMING TFC MAY NOT BE VIS DUE TO TERRAIN.
A110-44RSTD; SCOTT AFB IS PPR. THE 375 MIL FLIGHT SVC SECTION IS THE SOLE AGENT FOR ISSUING PPR NRS TO MIL ACFT OPRG ON OR FM THE SCOTT AFB SIDE.
A110-46MIL RAMPS CLSD TO CIVIL ACFT WITHOUTPRIOR COORDINATION AND A LANDING PERMIT NR ON FILE.
A110-47PARKING AT THE 126 ARW RAMP IS OFFICIAL BUSINESS ONLY REQUIRING 48 HRS PPR. PPR CALL DSN 760-4275, C 618-222-4275, OR 126TH CP EXTN 4255.
A110-48ALL INBOUND ACFT ARRIVING SCOTT AFB MUST CTC 375 COMD POST OR 126TH ANG COMD POST NO LATER THAN 30 MIN PRIOR TO LDG.
A110-49ACFT ARRIVING SCOTT AFB WITH MORE THAN 30 PSGR AFTER HRS CTC BASE OPS 24 HRS IN ADVANCE C618-256-1861.
A110-50MIL SUPPORT FROM SAFB MAY NOT BE AVBL ON MIDAMERICA SIDE OF FLD WO PRIOR COORD THRU SCOTT AFB. PPR ISSUED UP TO 7 DAYS PRIOR TO ARR.
A110-51RSTD: FULL WX SVC AVBL H24. COMBAT WX FLIGHT DSN 576-3663, C618-256-3663. BLDG OBST MAY IMPACT PREVAILING VIS 200-320 DEG. ATC WILL ENHANCE SFC OBSN WHEN TWR IS LESS THAN 4 SM AND DIFFERENT THAN RPT VIS.REMOTE BRIEFING SVC AVBL FROM 15 OPERATIONAL SQUADRON, DSN 576-9755, C618-256-9755.
A110-53CIVILIAN FBO AVBL 1400-0200Z++, C618-566-5265 (ATS). OTR TIMES AVBL WITH PRIOR NOTICE.
A110-55LTD DEICING CPBLTY. ACFT CMDRS MUS COORD WITH SAFB COMD POST DSN 576-5891, C618-256-5891 FOR AVAIL AT LEAST 24 HR PRIOR TO DEP.
A110-6SAFB AIRFIELD OPERATIONS OPEN 24/7.
A110-60SERVICE-FUEL: A++(MIL). SCOTT AFB FUEL SVC AVBL 1100Z-0500Z, OT RQR 1 HR PN.
A110-62MISC: EACH RWY HAS DIFFERENT LEVELS OF ARFF SUPPORT. CONSIDER RWY 14L-32R A CIV AIRPORT PROVIDING FAA INDEX B SUPPORT FOR CIV ACFT. ALL MIL ACFT TO EITHER RWY ARE PROVIDED A USAF REDUCED LVL OF SCV FOR CAT LEVELS IAW AFI 32-1001.
A110-63TWY H CLSD.
A110-64H24 WX SVC AVBL AT DSN 576-5905, C618-256-5905. AN/FMQ-19 AUTOMATED OBSERVING SYS IN USE; AUGMENTED BY HUMAN OBSN WHEN NEC. IF WX FLT UNAVBL, REMOTE SVC AVBL FR 15 OPR WX SQUADRON DSN 576-9755, C618-256-9755.
A110-65CAUTION: UNEXP BUMPS OCCURRING ON TWY G BTN RWYS WHEN CROS BRIDGES AND TUNNELS. USE MIN SPEEDS WHEN OPR IN THE AREA.
A110-66MISC: ACARS AVBL.
A110-67SERVICE-TRAN ALERT: HOT PIT REFUL AVBL TO CERTAIN ACFT WITH 3 HR PN AND MAX OF 2 AT A TIME.
A110-68CTC 375 AMW COMD POST 20 MIN PRIOR TO ARR FOR HOT PIT REQ.
A110-69ACFT WITH WINGSPANS MORE THAN 170' ARE PROHIBITED FM TXG ON SCOTT MAIN RAMP TAXI LANE WO AFLD MGMT APVL.
A110-70CUST/AG/IMG - CUST AVBL. CTC BASE OPS 72 HRS PRIOR TO EXP ARR TO COORD. CIV ACFT MUST BE CLEARED BY US CUST IF GIVEN A MIN 72 HR NTC PRIOR TO ACFT ARR.
A110-71MISC: RWY 14L WINDS EST.
A110-72REMARKS: O/S UFN. CTC TWR OR WX FOR MORE INFO.
A110-73TRAIN TRACK LCTD APRX 1650 FT FROM DTHR OF RWY 32L; RWY 32L APCH LGT INTERRUPTED BY PASSING TRAIN.
A110-74SMALL UAS (SUAS) OPR CLASS D AIRSPACE SFC TO 400 FT AGL.
SCOTT AFB/MIDAMERICA ST LOUIS (ICAO: KBLV, IATA: BLV) is a public airport located in BELLEVILLE, IL.
