KBNL
BARNWELL RGNL
PublicPUB

1 miles NW of BARNWELL, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 15' 28"N 81° 23' 18"W
246' MSL
1246' MSL
05W
JET A, 100LL, MOGAS
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KBNL VFR
12:35 AM EDT
Clear
10sm
66°F
48°F
30.24"Hg
Calm
AO2
KBNL 010435Z AUTO 00000KT 10SM CLR 19/09 A3024 RMK AO2
Add Your Business

KBNL FBOs

Promote Listing
Barnwell Regional Airport
UNICOM: 122.8
Phone: (803) 259-1090
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.76 5.60 4.89
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
803-259-4536
 119.775

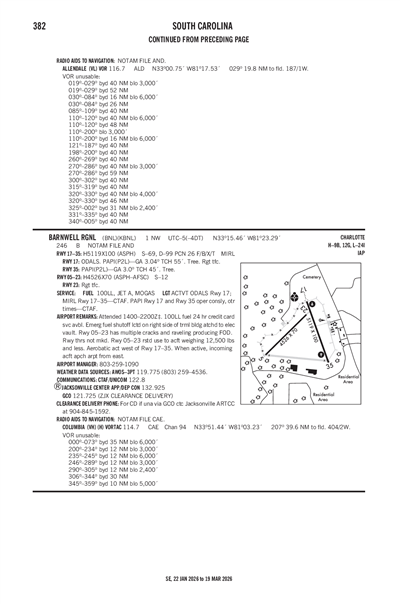

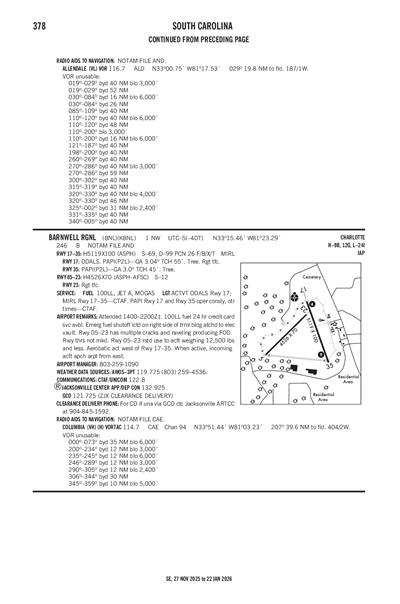

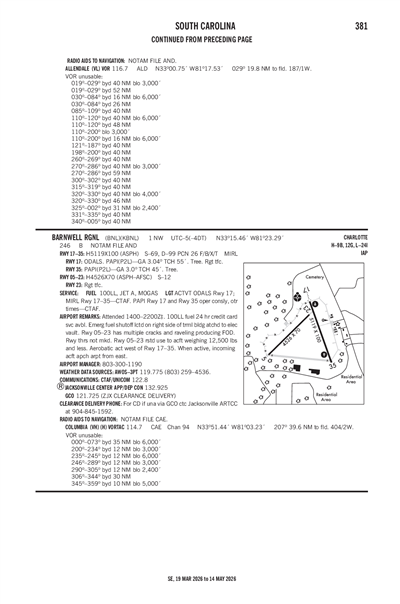

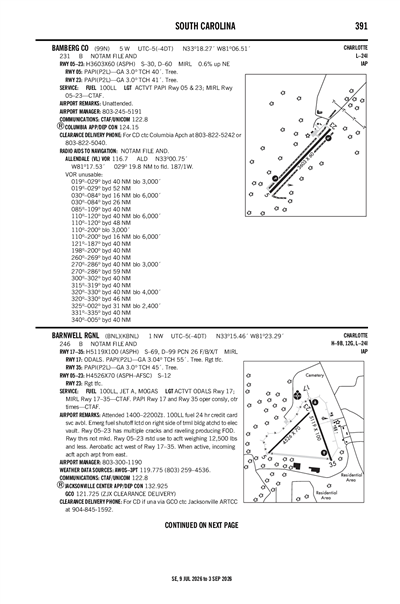

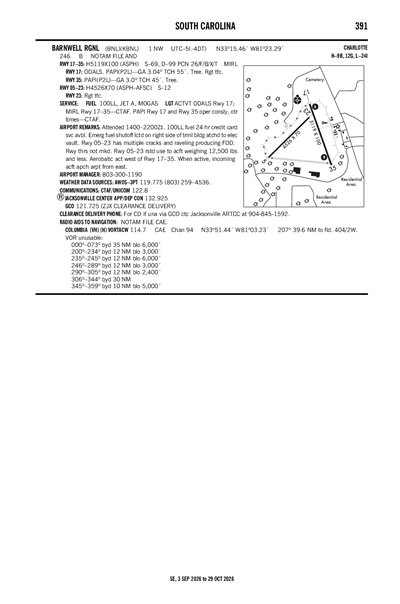

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KOGB (30nm)
Fri, 5/31 10:43 PM EDT
Fri, 5/31 11:00 PM EDT - Sat, 6/1 8:00 PM EDT
VFR
11:00 PM EDT - 10:00 AM EDT
Scattered 20,000'
6sm
VRB° 3kts
VFR
10:00 AM EDT - 8:00 PM EDT
Scattered 5,000'
6sm
130° 7kts
KOGB 010243Z 0103/0124 VRB03KT P6SM SCT200
   FM011400 13007KT P6SM SCT050
KBNL
Domestic
5/14/240912Z !AND 05/237 BNL OBST TOWER LGT (ASR 1019915) 332022.00N0812337.00W (4.9NM N BNL) 806.1FT (502.0FT AGL) U/S 2405140912-2406130001
5/3/241253Z !AND 05/036 BNL RWY 17 RWY END ID LGT U/S 2405031253-2411042111EST
4/20/241840Z !AND 04/297 BNL OBST TOWER LGT (ASN 2018-ASO-46-OE) 330921N0812116W (6.3NM SSE BNL) 568FT (312FT AGL) U/S 2404201840-2406041839
FDC
12/6/232109Z !FDC 3/1977 BNL IAP BARNWELL RGNL, BARNWELL, SC.
RNAV (GPS) RWY 35, ORIG-A...
CIRCLING RWY 5, 23 NA AT NIGHT.
2312062109-2512062109EST
No
0900-1700
BARNWELL COUNTY
COUNTY COURTHOUSE
BARNWELL, SC 29812
Phone: 803-541-1000
BRANDON CHAVIS
155 AIRPORT ROAD, PO BOX 899
BARNWELL, SC 29812
Phone: 803-259-1090
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
--
ACTVT ODALS RY 17, MIRL RY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
30
0
0
0
0
0
None
None
None
None
None

Runway 05/23

4526 ft. x 70 ft.
ASPH
Poor
AFSC


12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 33° 15' 11"N 33° 15' 42"N
Longitude 81° 23' 52"W 81° 23' 14"W
Elevation 242' 240'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

5119 ft. x 100 ft.
ASPH
Good
NONE
MED
26 /F/B/X/T
69,000lbs
99,000lbs
--
--
  Runway 17 Runway 35
True Heading 160°340°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 15' 52"N 33° 15' 05"N
Longitude 81° 23' 14"W 81° 22' 54"W
Elevation 237' 245'
Threshold Crossing Height 52 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights ODALS
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1GCO AVBL ON FREQ 121.725 THRU ZJX CLEARANCE DELIVERY.
A110-2AEROBATIC ACTIVTY WEST OF RY 17/35. WHEN ACTIVE, INCOMING ACFT APPROACH ARPT FROM EAST.
A110-3FOR CD IF UNA VIA GCO CTC JACKSONVILLE ARTCC AT 904-845-1592.
BARNWELL RGNL (ICAO: KBNL, IATA: BNL) is a public airport located in BARNWELL, SC.
