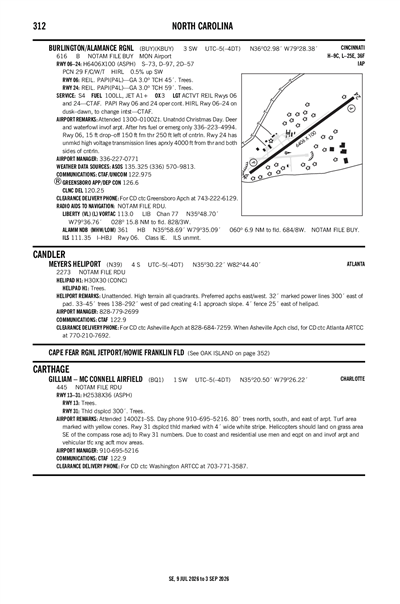

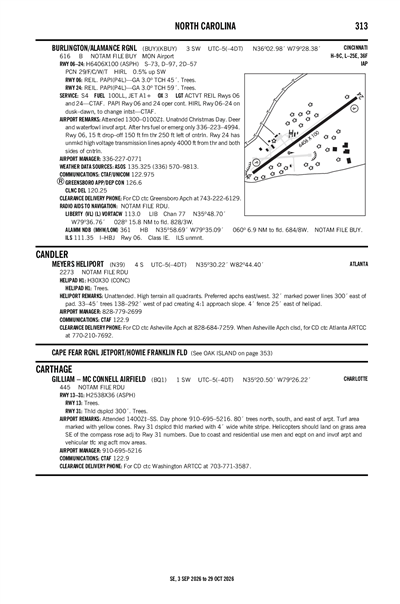

BURLINGTON/ALAMANCE RGNL - Airport Diagram

KBUY

BURLINGTON/ALAMANCE RGNL

PublicPUB

3 miles SW of BURLINGTON, NC

View on Map

Status

Operational

Coordinates

36° 02' 59"N 79° 28' 23"W

Elevation

616' MSL

Pattern Alt

1616' MSL

Mag Variation

08W

Fuel

JET A-1+, 100LL

FSS

RALEIGH (RDU)

Sectional

CINCINNATI

ARTCC

WASHINGTON (ZDC)

Data Effective

2/20/25-3/20/25

KBUY VFR

9:54 AM EDT RAW

Clear

Viz

10sm

Temp

46°F

Dew

22°F

Pres

30.14"Hg

Wind

340° 4kts

RMK

AO2 SLP205 T00781056

KBUY 091354Z AUTO 34004KT 10SM CLR 08/M06 A3014 RMK AO2 SLP205 T00781056

Add Your Business

KBUY FBOs

SkySouth Aviation

UNICOM: 122.975

Phone: (336) 226-3330

0 Reviews (Read | Sign In To Write)

Titan

As of 2/16	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.09		6.40

Fuel Notes

Prices include tax

Promote Listing

Triad Aviation

UNICOM: 122.975

Phone: (336) 227-1467

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 2/25	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	5.84

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.975 CTAF 122.975

ASOS

336-570-9813

135.325

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KGSO (23nm)

RAW

Reported

Sun, 3/9 7:20 AM EDT

Valid

Sun, 3/9 8:00 AM EDT - Mon, 3/10 8:00 AM EDT

VFR

8:00 AM EDT - 8:00 AM EDT

Broken 20,000'

Viz

6sm

Wind

250° 6kts

KGSO 091120Z 0912/1012 25006KT P6SM BKN200

KBUY

Domestic
2/21/251855Z	!BUY 02/008 BUY OBST TOWER LGT (ASR 1000863) 360335.90N0793123.10W (2.5NM WNW BUY) 885.8FT (250.0FT AGL) U/S 2502211855-2505220500
FDC
11/12/230255Z	!FDC 3/0004 BUY IAP BURLINGTON/ALAMANCE RGNL, BURLINGTON, NC. RNAV (GPS) RWY 24, ORIG-A... LNAV/VNAV DA 1065/HAT 465 ALL CATS. LNAV MDA 1140/HAT 543 ALL CATS. CIRCLING CATS A AND B MDA 1140/HAA 524. DISREGARD PROFILE VIEW NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 59). 2311120255-2511110254EST

ATC Tower

Attendance

0800-2000
UNATNDD CHRISTMAS DAY.

Owner

BURLINGTON-ALAMANCE AIRPORT AUTHORI
3441 N. AVIATION DR.
BURLINGTON, NC 27215
Phone: 336-227-0771

Manager

DAN DANIELEY
3441. N AVIATION DRIVE
BURLINGTON, NC 27215-6374
Phone: 336-227-0771

FSS

RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF

NOTAM

BUY

Light Schedule

Lights

ACTVT REIL RWY 06 & 24 - CTAF. PAPI RWY 06 & 24 OPER CONT. HIRL RWY 06/24 ON DUSK-DAWN, TO CHANGE INTST - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High Pressure

Bulk Oxygen

None

Other Services

Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

Dimensions

6406 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

29 /F/C/W/T

Single Wheel

73,000lbs

Double Wheel

97,000lbs

Double Tandem

57,000lbs

Dual Dbl Tand

	Runway 06	Runway 24
True Heading	52°	232°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	36° 02' 40"N	36° 03' 18"N
Longitude	79° 28' 54"W	79° 27' 52"W
Elevation	616'	587'
Threshold Crossing Height	45 ft. AGL	59 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-4	DEER AND WATERFOWL INVOF ARPT.
A110-5	RWY 06, 15 FT DROP-OFF 150 FT FM THR 250 FT LEFT OF CNTRLN.
A110-6	AFTER HRS FUEL OR EMERG ONLY 336-223-4994.
A110-7	FOR CD CTC GREENSBORO APCH AT 743-222-6129.
A110-8	RWY 24 HAS UNMKD HIGH VOLTAGE TRANSMISSION LINES APRXLY 4000 FT FROM THR AND BOTH SIDES OF CNTRLN.

BURLINGTON/ALAMANCE RGNL (ICAO: KBUY, IATA: BUY) is a public airport located in BURLINGTON, NC.
