iFlightPlanner



...

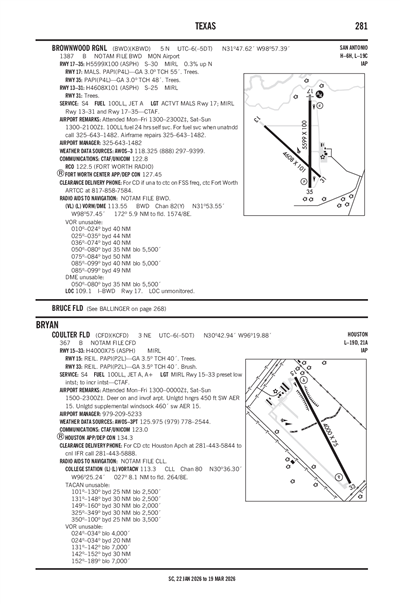

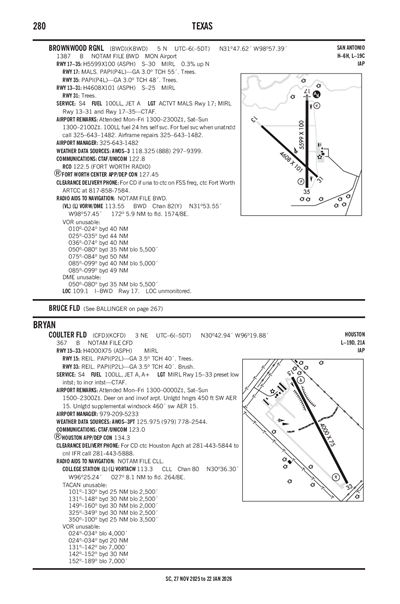

BROWNWOOD RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBWD
BROWNWOOD RGNL
PublicPUB

5 miles N of BROWNWOOD, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 47' 37"N 98° 57' 23"W
1387' MSL
2387' MSL
04E
JET A, 100LL
FORT WORTH (FTW)
SAN ANTONIO
FORT WORTH (ZFW)
11/28/24-12/26/24
KBWD MVFR
6:35 AM CST
Overcast 2,700'
10sm
58°F
54°F
30.08"Hg
150° 7kts
AO2 CIG 022V033 T01460122 $
KBWD 231235Z AUTO 15007KT 10SM OVC027 15/12 A3008 RMK AO2 CIG 022V033 T01460122 $
Add Your Business

KBWD FBOs

Promote Listing
Brownwood Regional Airport
UNICOM: 122.8
Phone: (325) 643-1482
Other: (325) 642-0868
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/19
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.30 4.80
Full Serve 4.80 5.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
888-297-9399
 118.325

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBBD (42nm)
Mon, 12/23 5:20 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 11:00 AM CST
Overcast 1,500'
6sm
170° 10kts
Gusts 18kts
MVFR
11:00 AM CST - 1:00 PM CST
Broken 2,500'
6sm
200° 15kts
Gusts 23kts
VFR
1:00 PM CST - 6:00 PM CST
Scattered 3,500'
6sm
200° 15kts
Gusts 23kts
VFR
6:00 PM CST - 2:00 AM CST
Few 15,000'
6sm
170° 7kts
MVFR
2:00 AM CST - 6:00 AM CST
Broken 1,500'
6sm
160° 8kts
KBBD 231120Z 2312/2412 17010G18KT P6SM OVC015
   FM231700 20015G23KT P6SM BKN025
   FM231900 20015G23KT P6SM SCT035
   FM240000 17007KT P6SM FEW150
   FM240800 16008KT P6SM BKN015
KBWD
Domestic
12/16/240026Z !BWD 12/006 BWD OBST TOWER LGT (ASN 2018-ASW-8696-OE) 315751N0985801W (10.2NM N BWD) 1898FT (350FT AGL) U/S 2412160026-2501300026
10/15/241744Z !BWD 10/002 BWD OBST TOWER LGT (ASR 1053998) 314346.00N0990113.00W (5.0NM SW BWD) 2097.8FT (599.4FT AGL) U/S 2410151744-2501152359
FDC
11/5/241828Z !FDC 4/9324 BWD IAP BROWNWOOD RGNL, BROWNWOOD, TX.
VOR RWY 17 ORIG ...
FOR INOPERATIVE ALS, INCREASE S-17 CAT C AND D VISIBILITY TO 1 7/8 SM. 2411051828-2611051828EST
10/31/241221Z !FDC 4/6848 BWD IAP BROWNWOOD RGNL, BROWNWOOD, TX.
LOC RWY 17, AMDT 5...
CHANGED MISSED APPROACH INSTRUCTIONS TO READ: CLIMBING RIGHT TURN TO 4000 ON HEADING 021 AND ON BWD VOR/DME R-352 TO ELISE INT/BWD 10 DME AND HOLD.
2410311221-2610311221EST
10/31/240901Z !FDC 4/6124 BWD IAP BROWNWOOD RGNL, BROWNWOOD, TX.
LOC RWY 17, AMDT 5...
PROCEDURE NA.
2410310901-2610311426EST
No
MON-FRI 0700-1700
SAT-SUN 0700-1500
CITY OF BROWNWOOD
BOX 1389
BROWNWOOD, TX 76801
Phone: (325) 646-5775
KYLE WHITLEY
BOX 1389
BROWNWOOD, TX 76801
Phone: 325-643-1482
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
BWD
--
ACTVT MALS RWY 17; MIRL RWY 13/31 & 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Cargo Handling
Pilot Instruction

Runway 13/31

4608 ft. x 101 ft.
ASPH
Good
NONE
MED

25,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 134°314°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 47' 50"N 31° 47' 19"N
Longitude 98° 57' 49"W 98° 57' 11"W
Elevation 1,381' 1,372'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5599 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 48' 07"N 31° 47' 11"N
Longitude 98° 57' 18"W 98° 57' 18"W
Elevation 1,384' 1,370'
Threshold Crossing Height 55 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
BROWNWOOD RGNL (ICAO: KBWD, IATA: BWD) is a public airport located in BROWNWOOD, TX.
