iFlightPlanner



...

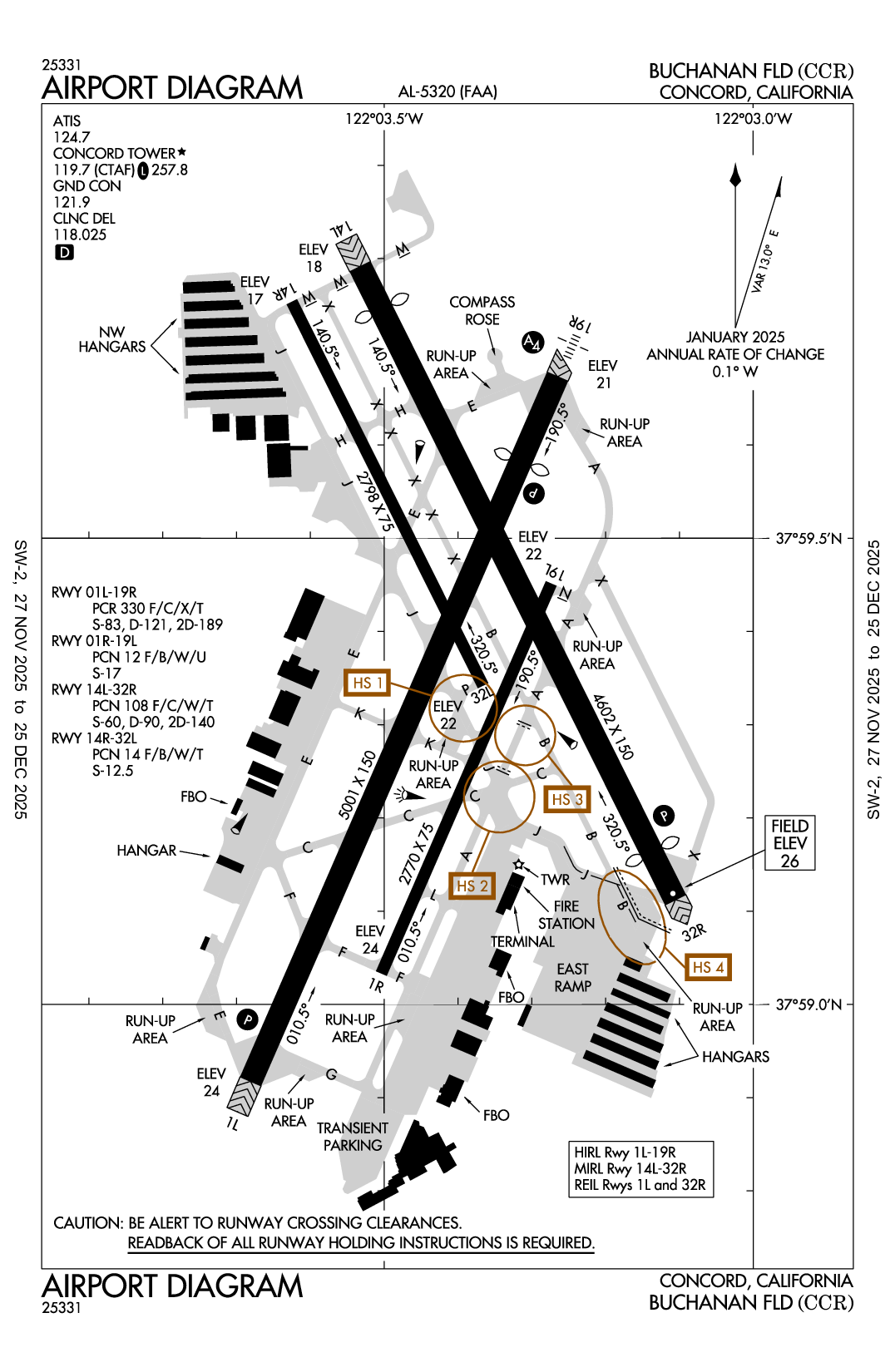

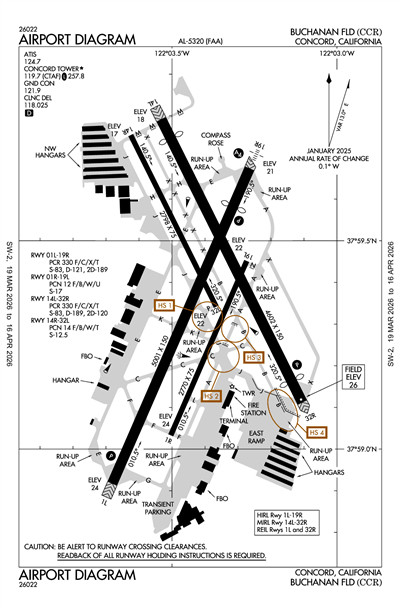

BUCHANAN FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCCR
BUCHANAN FLD
PublicPUB

1 miles W of CONCORD, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 59' 23"N 122° 03' 25"W
26' MSL
1026' MSL
13E
JET A-1+, 100LL
OAKLAND (OAK)
SAN FRANCISCO
OAKLAND (ZOA)
11/28/24-12/26/24
KCCR LIFR
4:53 AM PST
Mist
Overcast 300'
1.25sm
54°F
54°F
30.16"Hg
Calm
AO2 SLP198 T01220122
KCCR 231253Z AUTO 00000KT 1 1/4SM BR OVC003 12/12 A3016 RMK AO2 SLP198 T01220122
Add Your Business

KCCR FBOs

Promote Listing
Pacific States Aviation
UNICOM: 122.95
Phone: (925) 685-4400
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.50 4.36 4.42
Fuel Notes
Prices include tax
Promote Listing
Sterling Aviation
UNICOM: 122.95
Phone: (925) 676-2100
No Rating Available
0 Reviews (Read | Sign In To Write)
Concord Jet Center
UNICOM: 122.95
Phone: (925) 825-2980
Fax: (925) 825-2996
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 4.33 4.38
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.7

ATIS

ATIS
925-685-4567
 124.7

Clearance Delivery

CD/P
 118.75

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 123.9
LCL/P IC
 119.7

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KSUU (17nm)
Mon, 12/23 2:55 AM PST
Mon, 12/23 3:00 AM PST - Tue, 12/24 9:00 AM PST
LIFR
3:00 AM PST - 9:00 AM PST
Light Showers and Rain and Mist
Broken 700'
Broken 200'
1.99sm
30.15"Hg
VRB° 6kts
LIFR
Temporary 6:00 AM PST - 10:00 AM PST
Fog
Obscured
0.5sm
Calm
VFR
Becoming 9:00 AM PST - 4:00 PM PST
Scattered 1,000'
6sm
30.09"Hg
VRB° 6kts
IFR
Temporary 10:00 AM PST - 5:00 PM PST
Mist
Broken 2,000'
Broken 1,000'
2.98sm
Calm
MVFR
Becoming 4:00 PM PST - 11:00 PM PST
Broken 2,000'
6sm
30.00"Hg
VRB° 6kts
MVFR
Temporary 6:00 PM PST - 12:00 AM PST
Light Showers and Rain and Mist
No Clouds
3.73sm
Calm
MVFR
Becoming 11:00 PM PST - 9:00 AM PST
Rain and Mist
Broken 2,000'
Scattered 1,000'
3.73sm
29.91"Hg
230° 15kts
Gusts 25kts
MVFR
Temporary 3:00 AM PST - 6:00 AM PST
Heavy Showers and Rain
Broken 1,000'
N/A
280° 25kts
Gusts 35kts
Light Turbulence: up to 3,000'
MVFR
Temporary 6:00 AM PST - 9:00 AM PST
Showers and Rain
Broken 1,000'
N/A
Calm
TAF KSUU 231055Z 2311/2417 VRB06KT 3200 -SHRA BR BKN002 BKN007 QNH3014INS
   TEMPO 2314/2318 0800 FG VV002
   BECMG 2317/2318 VRB06KT 9999 NSW SCT010 QNH3009INS
   TEMPO 2318/2401 4800 BR BKN010 BKN020
   BECMG 2400/2401 VRB06KT 9999 BKN020 QNH3001INS
   TEMPO 2402/2408 6000 -SHRA BR
   BECMG 2407/2408 23015G25KT 6000 RA BR SCT010 BKN020 QNH2992INS
   TEMPO 2411/2414 28025G35KT +SHRA BKN010 510003
   TEMPO 2414/2417 SHRA BKN010 TX15/2323Z TN11/2316Z
KCCR
Domestic
12/22/240000Z !CCR 12/020 CCR AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
380312.10N1221404.90W (9.3NM WNW CCR) SFC-400FT AGL DLY 0000-2359
2412220000-2512052359
12/19/242120Z !CCR 12/019 CCR OBST TOWER LGT (ASR 1216691) 380041.00N1220222.00W (1.5NM NNE CCR) 138.8FT (98.8FT AGL) U/S 2412192120-2412272359
12/13/241700Z !CCR 12/012 CCR AIRSPACE UAS WI AN AREA DEFINED AS 375817N1220624W
(2.6NM SW CCR) TO 375800N1220707W (3.2NM SW CCR) TO 375746N1220647W
(3.1NM SW CCR) TO 375802N1220559W (2.4NM SW CCR) TO POINT OF ORIGIN
SFC-250FT AGL FRI MON TUE WED THU 1700-0600 2412131700-2503010600
12/12/240744Z !CCR 12/011 CCR OBST TOWER LGT (ASR 1014626) 375254.20N1215508.80W (9.3NM SE CCR) 3900.9FT (299.9FT AGL) U/S 2412120744-2501260730
12/9/241727Z !CCR 12/010 CCR RWY 32R RWY END ID LGT U/S 2412091727-2412302359EST
12/6/240000Z !CCR 12/007 CCR AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
375957.50N1214659.40W (12.2NM S O88) SFC-400FT AGL DLY 0000-2359
2412060000-2512052359
12/3/241759Z !CCR 12/001 CCR COM CLR DELIVERY 118.75 U/S 2412031759-2501312359EST
9/25/241955Z !CCR 09/017 CCR TWY J BTN TWY B AND EAST RAMP WIP IRREGULAR SFC ADJ EAST SIDE LGTD AND BARRICADED 2409251955-2501020100
9/11/241216Z !CCR 09/011 CCR OBST POWER LINE LGT (ASR UNKNOWN) 380524N1214457W (7.5NM SSW O88) 437FT (106FT AGL) U/S 2409111216-2509112359
3/1/240200Z !CCR 03/002 CCR OBST TOWER LGT (ASR UNKNOWN) 380524.15N1214457.14W (7.5NM SSW O88) 106FT (437FT AGL) U/S 2403010200-2503012359
12/24/230312Z !CCR 12/006 CCR OBST STACK (ASN UNKNOWN) 380209N1220610W (3.2NM NW CCR) 347FT (335FT AGL) NOT LGTD 2312240312-2412312359
FDC
11/25/241628Z !FDC 4/8610 CCR SID BUCHANAN FLD, CONCORD, CA.
BUCHANAN TWO DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CCR VOR OUT OF SERVICE. 2411251628-2507071628EST
11/25/241628Z !FDC 4/8609 CCR ODP BUCHANAN FLD, CONCORD, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CCR VOR OUT OF SERVICE. 2411251628-2507071628EST
Yes
0700-1700
CONTRA COSTA COUNTY
181 JOHN GLENN DR, SUITE 100
CONCORD, CA 94520
Phone: 925-608-8000
GREG BAER
181 JOHN GLENN DR, SUITE 100
CONCORD, CA 94520
Phone: 925-608-8000
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
CCR
--
ACTVT MALS RWY 19R 2200-0600; PAPI RWY 01L, 19R, & 32R - 119.7. REIL RWY 01L OFF WHEN ATCT CLSD.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01L/19R

5001 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
124/F/C/W/T
60,000lbs
90,000lbs
140,000lbs
--
  Runway 01L Runway 19R
True Heading 24°204°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 58' 55"N 37° 59' 40"N
Longitude 122° 03' 41"W 122° 03' 16"W
Elevation 24' 21'
Threshold Crossing Height 40 ft. AGL 22 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 01R/19L

2770 ft. x 75 ft.
ASPH
Poor
NONE

12 /F/B/W/U
17,000lbs
--
--
--
  Runway 01R Runway 19L
True Heading 24°204°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 59' 02"N 37° 59' 27"N
Longitude 122° 03' 30"W 122° 03' 16"W
Elevation 24' 22'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 14L/32R

4602 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
MED
108/F/C/W/T
60,000lbs
90,000lbs
140,000lbs
--
  Runway 14L Runway 32R
True Heading 154°334°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 59' 47"N 37° 59' 07"N
Longitude 122° 03' 32"W 122° 03' 06"W
Elevation 18' 26'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 14R/32L

2798 ft. x 75 ft.
ASPH
Fair
NONE

14 /F/B/W/T
12,000lbs
--
--
--
  Runway 14R Runway 32L
True Heading 154°334°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 59' 45"N 37° 59' 20"N
Longitude 122° 03' 37"W 122° 03' 22"W
Elevation 17' 22'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-12ARPT HAS NOISE ABATEMENT PROCEDURES CTC AMGR PRIOR TO ARR (925) 681-4200.
A110-15BIRDS ON & INVOF ARPT HEAVIEST CONCENTRATION NOV-MAR AND AFTER RAINSTORMS.
A110-16WHEN ATCT CLSD RYS 14L/32R; 14R/32L & 01R/19L CLSD.
A110-17NO TRAINING OPERATIONS MON-FRI 2200-0700; SAT SUN & HOL 2200-0800.
A110-18ARFF SVC AVBL UPON REQ WITH 24 HR NTC.
A110-19WHEN ATCT CLSD CALL TRAVIS APCH CTL (SUU) CLNC DEL 707-424-5111.
A110-2NOISE SENSITIVE AREA PRACTICE NOISE ABATEMENT (FLY QUIET) PROCS.
A110-20ARPT SFC CONDS NOT MNT 2200-0700.
A110-21MICHAEL VITALICH, 925-348-4014 (CELL) AND BIKRAMJIT BHULLAR, 925-405-7881 (CELL), CONTRA COSTA COUNTY, SUPERVISORS OF AIRPORT OPERATIONS, BUCHANAN FIELD AND BYRON ARPTS. OFC CTC NR IS 925-681-4200.
A110-6LNDG FEE FOR COML OPNS & TIE DOWN FEE FOR OVERNIGHT PARKING.
A110-9+8 FT FENCE 110 FT BYD RY 01L TODA DSTC OF 5010 AND +7 FT FENCE 210 FT BYD RY 14L TODA DSTC OF 4601 FT ALONG THE EXTDD RY CNTRL.
BUCHANAN FLD (ICAO: KCCR, IATA: CCR) is a public airport located in CONCORD, CA.
