KCDC
CEDAR CITY RGNL
Public
PUB
2 miles NW of CEDAR CITY, UT
View on
Map
Status
Operational
Coordinates
37° 42' 03"N
113° 05' 56"W
Elevation
5622' MSL
Pattern Alt
6399' MSL
Mag Variation
14E
Fuel
JET A, 100LL
FSS
CEDAR CITY (CDC)
Sectional
LAS VEGAS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
11/28/24-12/26/24
KCDC
VFR
4:53 AM MST
RAW
Clear
Viz
10sm
Temp
31°F
Dew
23°F
Pres
30.20"Hg
Wind
140° 3kts
RMK
AO2 SLP212 T10061050 10067 21017 50001
KCDC 231153Z AUTO 14003KT 10SM CLR M01/M05 A3020 RMK AO2 SLP212 T10061050 10067 21017 50001
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KCDC FBOs
GateOne
UNICOM: 122.85
Phone: (435) 586-4504
Fax: (435) 586-4501
0 Reviews
(
Read
|
Sign In To Write
)
Avfuel
As of
12/17
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
6.54
Full Serve
7.43
7.45
7.50
Fuel Notes
Prices include tax
KCDC Flight Schools & Aircraft Rental
Promote Listing
Southern Utah University
Phone: (801) 661-7797
0 Reviews
(
Read
|
Sign In To Write
)
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
123.0
CTAF
123.0
ASOS
ASOS
435-867-0278
119.025
FAA A/FD Pages
FAA A/FD Page

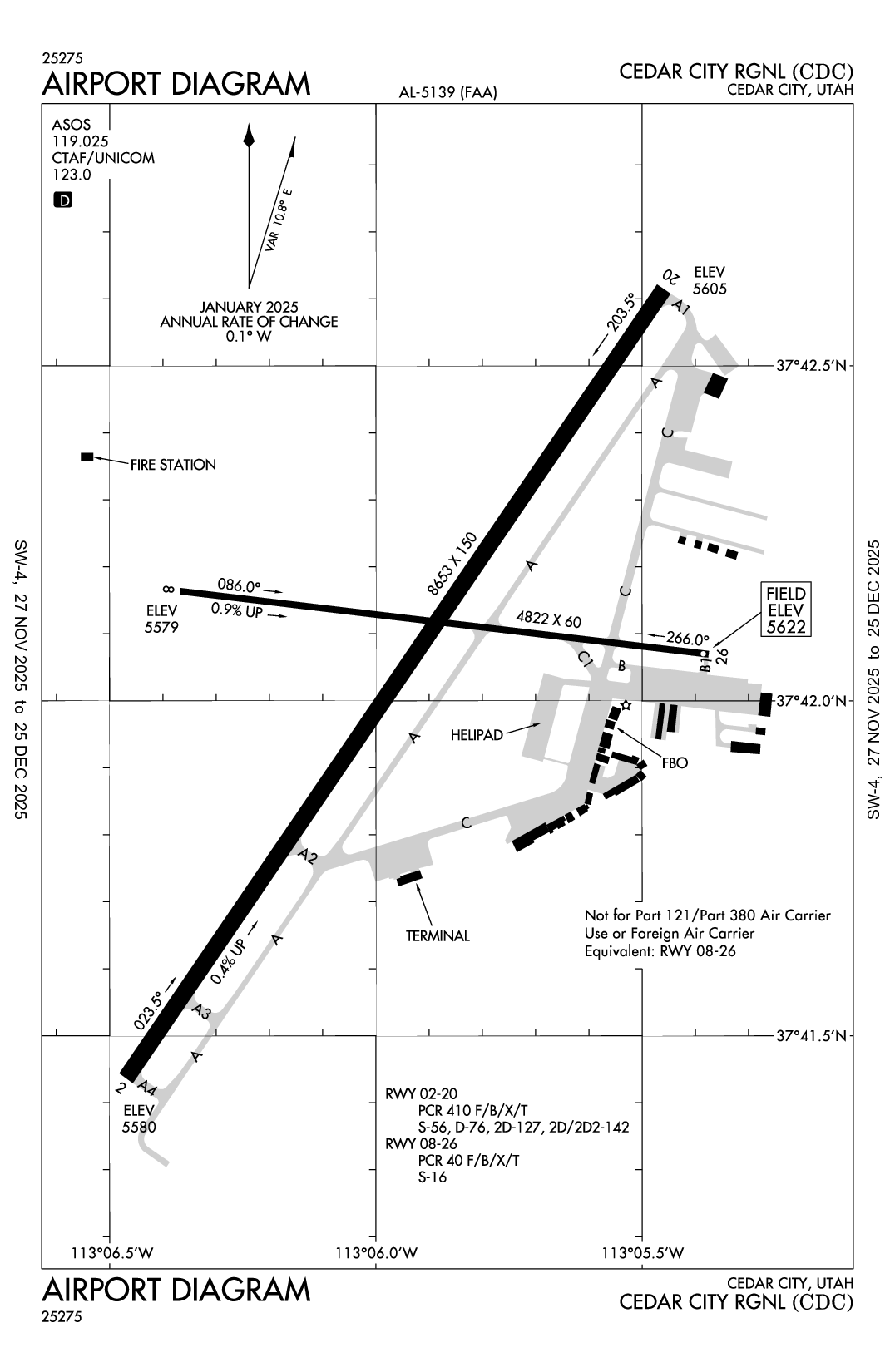

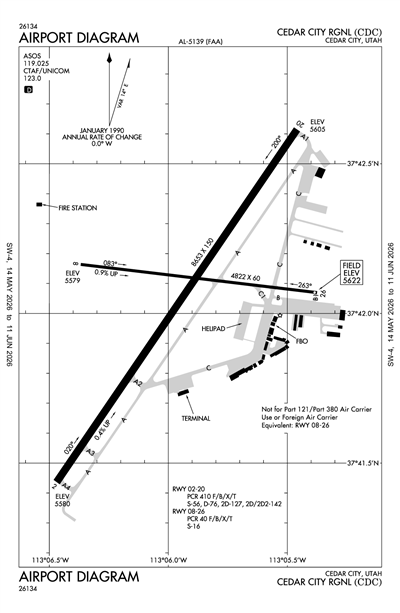

Airport Diagrams
AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 20
RNAV (GPS) RWY 02
RNAV (GPS) RWY 20
VOR RWY 20
Terminal Area Forecast
KCDC
RAW
Reported
Mon, 12/23 4:21 AM MST
Valid
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 1:00 PM MST
Scattered 20,000'
Scattered 15,000'
Scattered 5,000'
Viz
6sm
Wind
VRB° 5kts
VFR
1:00 PM MST - 7:00 PM MST
Scattered 20,000'
Viz
6sm
Wind
300° 6kts
VFR
7:00 PM MST - 5:00 AM MST
Scattered 20,000'
Viz
6sm
Wind
VRB° 4kts
KCDC 231121Z 2312/2412 VRB05KT P6SM SCT050 SCT150 SCT200
FM232000 30006KT P6SM SCT200
FM240200 VRB04KT P6SM SCT200
KCDC
Domestic
11/28/24
0016Z
!CDC 11/167 CDC OBST TOWER LGT (ASR 1041458) 374151.00N1131054.40W (3.9NM W CDC) 5785.1FT (305.1FT AGL) U/S 2411280016-2501120015
11/4/24
1611Z
!CDC 11/009 CDC TWY B1 SFC PAINTED HLDG PSN SIGNS REMOVED 2411041611-2505302000EST
8/26/24
1800Z
!CDC 08/196 CDC OBST CRANE (ASN UNKNOWN) 374057N1130657W (.6NM SW APCH END RWY 02)
UNKNOWN (86FT AGL) LGTD 2408261800-2502282000EST
7/18/24
1804Z
!CDC 07/205 CDC APRON TERMINAL RAMP SW 100FT WIP CONST BARRICADED 2407181804-2505302000EST
5/9/24
1716Z
!CDC 05/054 CDC TWY A SAFETY AREA BTN TWY A2 AND TWY C WIP CONST 2405091716-2505091715
6/25/21
2000Z
!CDC 06/126 CDC TWY B BTN TWY C AND EAST RAMP
CLSD
2106252000-PERM
ATC Tower
No
Attendance
DALGT
FOR AFT HRS SVC CALL 435-586-4504
Owner
CEDAR CITY CORPORATION
10 NORTH MAIN
CEDAR CITY, UT 84720
Phone: 435-586-2950
Manager
TYLER GALETKA
2560 AVIATION WAY
CEDAR CITY, UT 84721
Phone: 435-867-9408
FSS
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
NOTAM
CDC
Light Schedule
--
Lights
ACTVT MALSR RWY 20; REIL RWY 02, 08 & 26; HIRL RWY 02/20; MIRL RWY 08/26 - CTAF. PAPI RWY 02 & 20, 08 OPER CONSLY.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High & Low Pressure
Bulk Oxygen
None
Other Services
Air Freight
Crop Dusting
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Glider Towing
Runway 02/20
Dimensions
8653 ft. x 150 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
HIGH
Pavement Class
21 /F/C/X/T
Single Wheel
56,000lbs
Double Wheel
76,000lbs
Double Tandem
127,000lbs
Dual Dbl Tand
142,000lbs
Runway 02
Runway 20
True Heading
34°
214°
Traffic Pattern
Left
Right
Markings
NPI
PIR
Markings Condition
GOOD
GOOD
Latitude
37° 41' 26"N
37° 42' 37"N
Longitude
113° 06' 28"W
113° 05' 28"W
Elevation
5,580'
5,605'
Threshold Crossing Height
48 ft. AGL
50 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
MALSR
Centerline Lights
Runway End Identifier Lights
Yes
Runway 08/26
Dimensions
4822 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
8 /F/C/X/T
Single Wheel
16,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 08
Runway 26
True Heading
97°
277°
Traffic Pattern
Left
Right
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
37° 42' 10"N
37° 42' 04"N
Longitude
113° 06' 22"W
113° 05' 23"W
Elevation
5,579'
5,622'
Threshold Crossing Height
47 ft. AGL
--
Visual Glide Path Angle
3°
--
Visual Slope Indicator
P4L
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
GA ACFT NOT PERMITTED ON ACR RAMP.
A110-10
AUTOROTATE - NO AUTOROTATION TRNG TO HELIPAD. RWY 02/20 CLSD TO HEL RUN-ON LNDG; RWY 08/26 CLSD TO HEL RUN-ON LNDG; TWY A, N OF RWY 8/26 CLSD TO HEL RUN-ON LNDG; TWY C CLSD TO HEL RUN-ON LNDG.
A110-11
RWY 02 LEFT TRAFFIC PATTERN EXC HELICOPTERS. RWY 20 RIGHT TRAFFIC EXC HELICOPTERS.
A110-12
FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-13
TWY B CLSD BTWN TWY C & EAST APRON
A110-2
RECOMMNED PILOTS CIRCLE ARPT FOR ALT BEFORE DEPARTING EASTBOUND DUE TO FAST RISING TERRAIN AND HI DENSITY ALT. TURBC LIKELY INVOF MNTS & PASSES.
A110-3
RWY 08/26 & TWY B NOT AVBL FOR ACR ACFT.
A110-6
DESIGNATED CALM WIND RWY (BLW 5 KTS) IS RWY 20, RGT TFC.
A110-7
UNMON SFC CONDS 1900-0700 DLY EXC FOR SKED ACR.
A110-8
EXTENSIVE HELICOPTER ACTIVITY.
A110-9
EXTENSIVE FLIGHT TRNG INVOF ARPT.
CEDAR CITY RGNL (ICAO: KCDC, IATA: CDC) is a public airport located in CEDAR CITY, UT.
