KCDH
HARRELL FLD
Public
PUB
5 miles NE of CAMDEN, AR
View on
Map
Status
Operational
Coordinates
33° 37' 22"N
92° 45' 48"W
Elevation
130' MSL
Pattern Alt
1130' MSL
Mag Variation
02E
Fuel
JET A, 100LL
FSS
JONESBORO (JBR)
Sectional
MEMPHIS
ARTCC
FORT WORTH (ZFW)
Data Effective
11/28/24-12/26/24
KCDH
VFR
6:15 AM CST
RAW
Unknown Precipitation
Broken 7,500'
Viz
9sm
Temp
39°F
Dew
36°F
Pres
30.29"Hg
Wind
Calm
RMK
AO2
KCDH 231215Z AUTO 00000KT 9SM -UP BKN075 04/02 A3029 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KCDH FBOs
Promote Listing
Harrell Field
UNICOM: 122.7
Phone: (870) 818-3408
Other: (870) 807-2203
0 Reviews
(
Read
|
Sign In To Write
)
Titan
As of
12/13
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
4.50
5.65
Full Serve
6.10
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.7
CTAF
122.7
AWOS-3
AWOS-3
870-574-1011
125.2

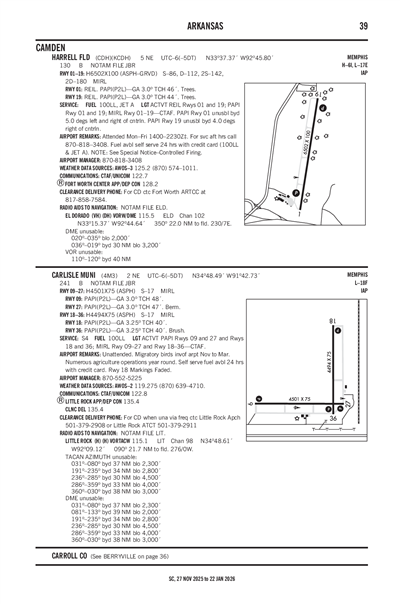

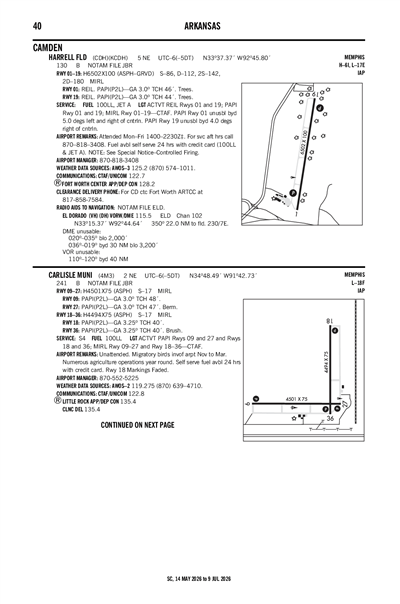

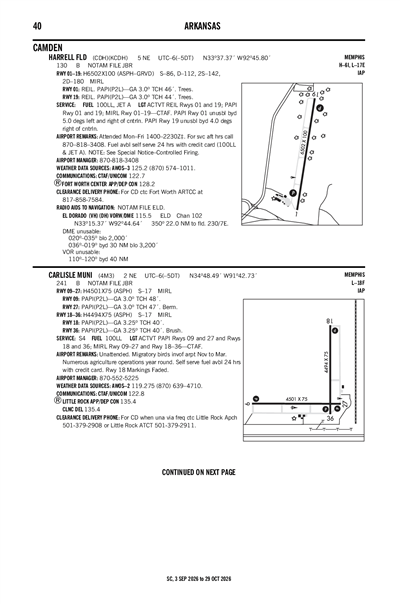

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 01
RNAV (GPS) RWY 19
Terminal Area Forecast
KELD (24nm)
RAW
Reported
Mon, 12/23 5:56 AM CST
Valid
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 12:00 PM CST
Scattered 7,000'
Viz
6sm
Wind
150° 9kts
VFR
12:00 PM CST - 9:00 PM CST
Few 6,000'
Viz
6sm
Wind
170° 7kts
VFR
9:00 PM CST - 6:00 AM CST
Broken 5,000'
Viz
6sm
Wind
120° 5kts
KELD 231156Z 2312/2412 15009KT P6SM SCT070
FM231800 17007KT P6SM FEW060
FM240300 12005KT P6SM BKN050
KCDH
Domestic
12/10/24
1544Z
!JBR 12/103 CDH OBST TOWER LGT (ASR 1040621) 333636.40N0925414.60W (7.1NM W CDH) 669.9FT (315.0FT AGL) U/S 2412101544-2501102359
9/16/24
1200Z
!JBR 09/180 CDH RWY 01 VASI U/S 2409161200-PERM
FDC
11/8/24
1708Z
!FDC 4/1267 CDH IAP HARRELL FLD, CAMDEN, AR.
RNAV (GPS) RWY 19, AMDT 1C...
VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.50/TCH 51.4).
2411081708-2611081708EST
ATC Tower
No
Attendance
MON-FRI 0800-1630
FOR SVC AFT HRS CALL 870-818-3408.
Owner
CITY OF CAMDEN
PO BOX 278
CAMDEN, AR 71711
Phone: 870-836-6436
Manager
KYLE GATLING
255 AIRPORT RD
CAMDEN, AR 71701
Phone: 870-818-3408
FSS
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
NOTAM
JBR
Light Schedule
--
Lights
ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 01/19
Dimensions
6502 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
86,000lbs
Double Wheel
112,000lbs
Double Tandem
180,000lbs
Dual Dbl Tand
--
Runway 01
Runway 19
True Heading
9°
189°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
33° 36' 50"N
33° 37' 54"N
Longitude
92° 45' 54"W
92° 45' 42"W
Elevation
123'
130'
Threshold Crossing Height
45 ft. AGL
43 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-5
FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
HARRELL FLD (ICAO: KCDH, IATA: CDH) is a public airport located in CAMDEN, AR.
