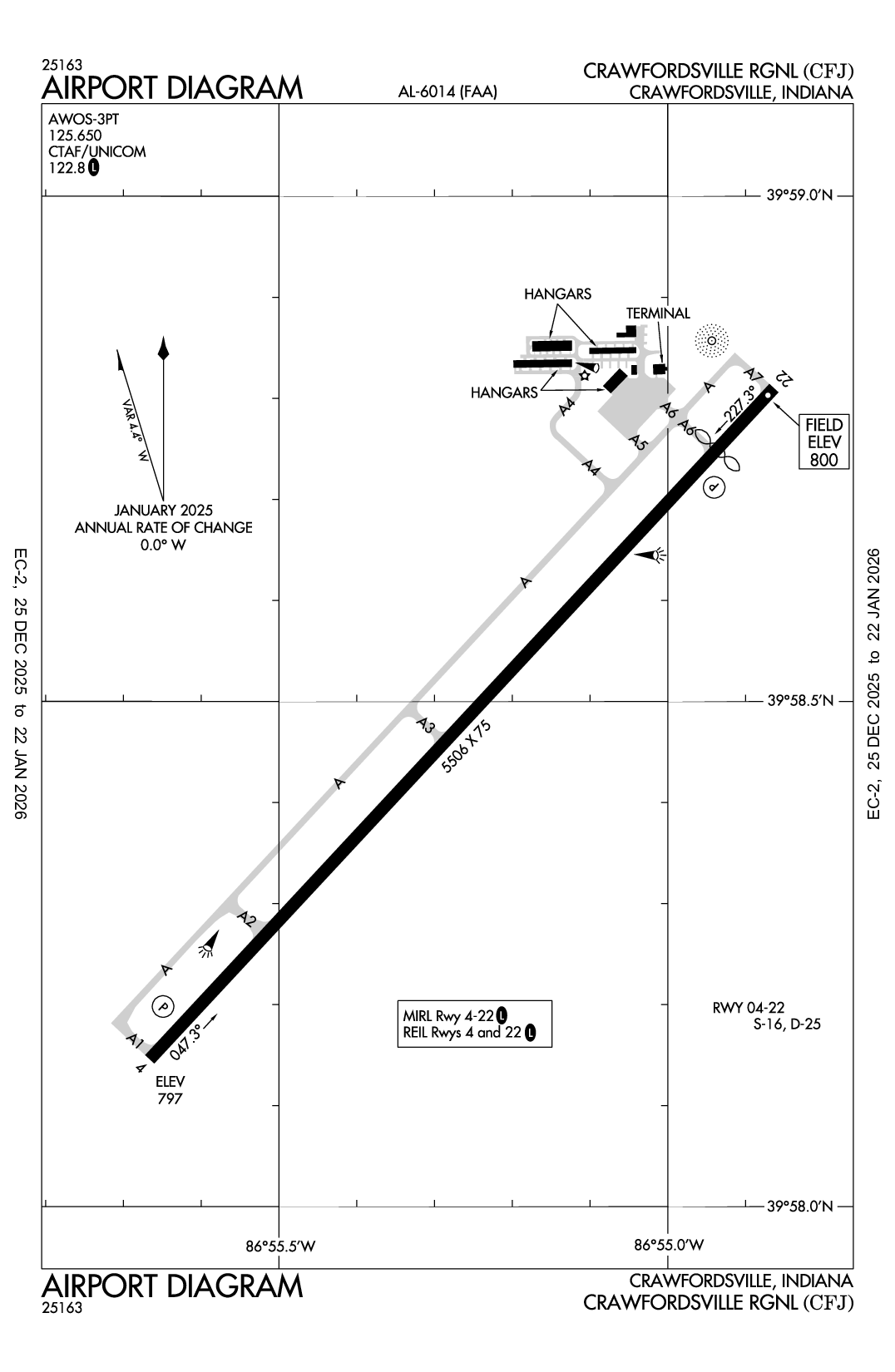

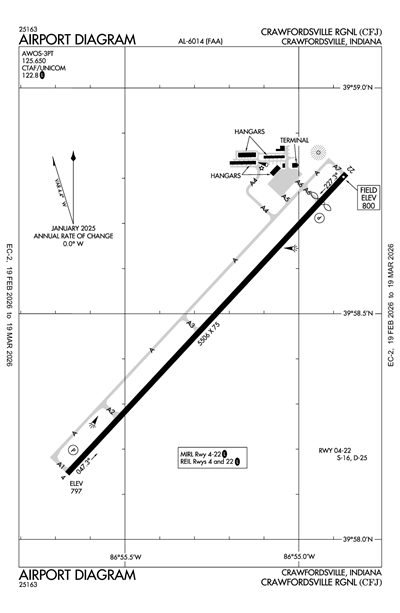

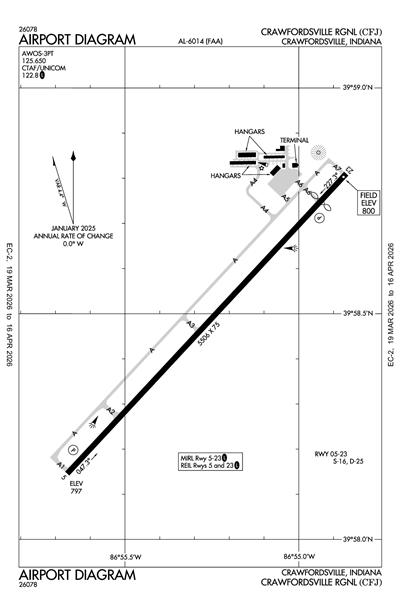

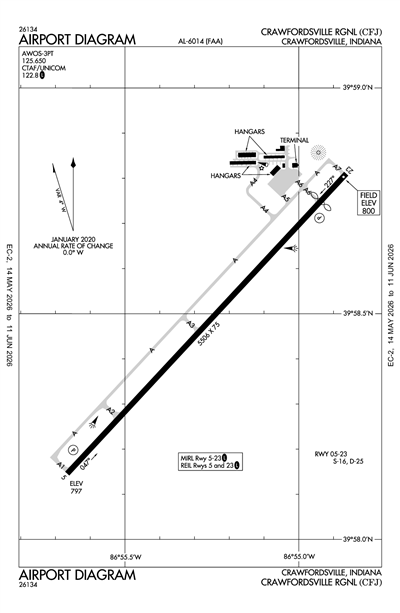

CRAWFORDSVILLE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCFJ
CRAWFORDSVILLE RGNL
PublicPUB

4 miles S of CRAWFORDSVILLE, IN
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 58' 29"N 86° 55' 16"W
800' MSL
1800' MSL
04W
JET A, JET A (FSII), 100LL
TERRE HAUTE (HUF)
ST LOUIS
INDIANAPOLIS (ZID)
11/28/24-12/26/24
KCFJ VFR
7:35 AM EST
Overcast 5,000'
Broken 4,400'
10sm
31°F
14°F
30.21"Hg
180° 14kts
AO2 T10031102
KCFJ 231235Z AUTO 18014KT 10SM BKN044 OVC050 00/M10 A3021 RMK AO2 T10031102

KCFJ FBOs

Crawfordsville Regional Airport
UNICOM: 122.8
Phone: (765) 362-0707
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/19
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.50 5.75
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
765-362-2967
125.65

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLAF (26nm)
Mon, 12/23 6:20 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 12:00 PM EST
Scattered 15,000'
6sm
160° 7kts
VFR
12:00 PM EST - 11:00 PM EST
Broken 4,000'
6sm
200° 10kts
Gusts 20kts
VFR
1:00 PM EST - 7:00 PM EST
Light Rain
No Clouds
N/A
Calm
MVFR
11:00 PM EST - 4:00 AM EST
Overcast 1,000'
6sm
220° 8kts
IFR
4:00 AM EST - 7:00 AM EST
Mist
Overcast 700'
1sm
200° 3kts
KLAF 231120Z 2312/2412 16007KT P6SM SCT150
   FM231700 20010G20KT P6SM BKN040
   PROB30 2318/2324 -RA
   FM240400 22008KT P6SM OVC010
   FM240900 20003KT 1SM BR OVC007
KCFJ
Domestic
12/23/242200Z !HUF 12/584 CFJ AD AP FIXED BASE OPR CLSD 2412232200-2412271200
11/29/242332Z !HUF 11/512 CFJ OBST TOWER LGT (ASR 1034162) 395852.40N0864633.70W (6.7NM E CFJ) 1114.8FT (254.9FT AGL) U/S 2411292332-2501132331
11/19/240123Z !HUF 11/310 CFJ OBST TOWER LGT (ASR 1301709) 400114.52N0865859.92W (4.0NM NW CFJ) 1007FT (245FT AGL) U/S 2411190123-2501030122
4/9/241911Z !HUF 04/299 CFJ RWY 04/22 NOW RWY 05/23 2404091911-2603312100
FDC
8/21/241339Z !FDC 4/3075 CFJ IAP CRAWFORDSVILLE RGNL, CRAWFORDSVILLE, IN.
RNAV (GPS) RWY 4, AMDT 1B...
LNAV/VNAV DA 1072/HAT 275 ALL CATS.
CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH - GPS.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE GREENCASTLE ALTIMETER SETTING AND INCREASE LPV DA TO 1128 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 1124 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE ALL MDAS 60 FEET AND LNAV AND CIRCLING VISIBILITY CATS C AND D 1/4 SM.
DISREGARD VDP.
DISREGARD PROFILE NOTE: *LNAV ONLY. DISREGARD ASTERISK IN PROFILE AT VDP.
2408211339-2608211339EST
8/21/241337Z !FDC 4/3072 CFJ IAP CRAWFORDSVILLE RGNL, CRAWFORDSVILLE, IN.
RNAV (GPS) RWY 22, AMDT 1A...
LPV DA 1059/HAT 260 ALL CATS. VIS ALL CATS 3/4.
LNAV/VNAV DA 1200/HAT 401 ALL CATS. VIS ALL CATS 1 1/8.
LNAV MDA 1200/HAT 401 ALL CATS.
CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH - GPS.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE GREENCASTLE ALTIMETER SETTING AND INCREASE LPV DA TO 1111 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 1252 FEET AND ALL VISIBILITIES 1/4 SM; INCREASE ALL MDAS 60 FEET AND LNAV AND CIRCLING VISIBILITY CATS C AND D 1/4 SM.
DISREGARD VDP.
CHANGE NOTE TO READ: BARO-VNAV NA WHEN USING GREENCASTLE ALTIMETER SETTING.
DISREGARD PROFILE NOTE: *LNAV ONLY. DISREGARD ASTERISK IN PROFILE AT VDP.
2408211337-2608211337EST
No
0900-1700
CITY OF CRAWFORDSVILLE
759 W 400 S
CRAWFORDSVILLE, IN 47933
Phone: 765-362-0707
LORI CURLESS
759 W 400 S
CRAWFORDSVILLE, IN 47933
Phone: (765) 362-0707
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT REIL RWY 04 & 22 - CTAF. MIRL RWY 04/22 PRESET TO LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 04/22

5506 ft. x 75 ft.
ASPH
Good
GRVD
MED

16,000lbs
25,000lbs
--
--
  Runway 04 Runway 22
True Heading 43°223°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 58' 09"N 39° 58' 49"N
Longitude 86° 55' 40"W 86° 54' 52"W
Elevation 797' 800'
Threshold Crossing Height 41 ft. AGL 42 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-2ARPT CLSD TO PART 137 OPS EXCP PPR 765-362-0070.
A110-3FOR CD CTC INDIANAPOLIS APCH AT 317-227-5744.
CRAWFORDSVILLE RGNL (ICAO: KCFJ, IATA: CFJ) is a public airport located in CRAWFORDSVILLE, IN.
