CRYSTAL RIVER-CAPT TOM DAVIS FLD - Airport Diagram

KCGC

CRYSTAL RIVER-CAPT TOM DAVIS FLD

PublicPUB

3 miles SE of CRYSTAL RIVER, FL

View on Map

Status

Operational

Coordinates

28° 52' 03"N 82° 34' 27"W

Elevation

9' MSL

Pattern Alt

1009' MSL

Mag Variation

05W

Fuel

JET A, 100LL

FSS

SAINT PETERSBURG (PIE)

Sectional

JACKSONVILLE

ARTCC

JACKSONVILLE (ZJX)

Data Effective

2/20/25-3/20/25

KCGC MVFR

10:55 AM EDT RAW

Overcast 3,300'
Broken 2,200'

Viz

10sm

Temp

72°F

Dew

64°F

Pres

30.00"Hg

Wind

Calm

RMK

AO2 PWINO

KCGC 091455Z AUTO 00000KT 10SM BKN022 OVC033 22/18 A3000 RMK AO2 PWINO

Add Your Business

KCGC FBOs

Promote Listing

Crystal Aero Group

UNICOM: 122.725

Phone: (352) 795-6868

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 2/23	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.30	6.10

Fuel Notes

Prices include tax
No Prist (FSII) available.

KCGC Aircraft Service & Maintenance

Promote Listing

Quest Avionics Inc.

Phone: (352) 873-0000

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 122.725 CTAF 122.725

AWOS-3

352-563-6600

118.325

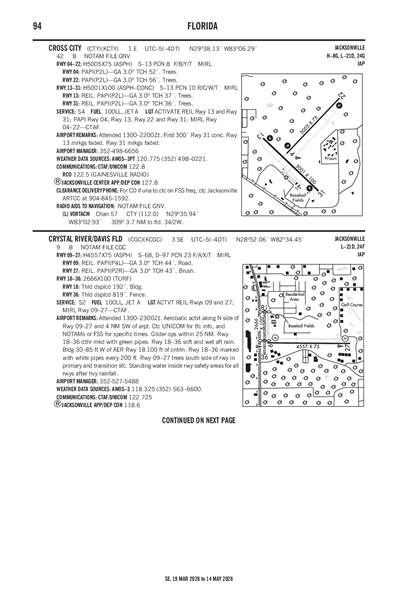

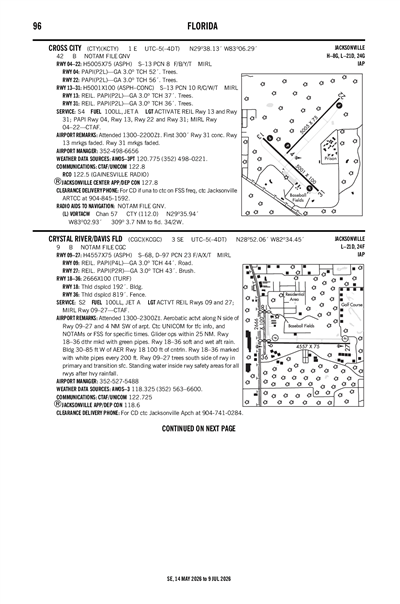

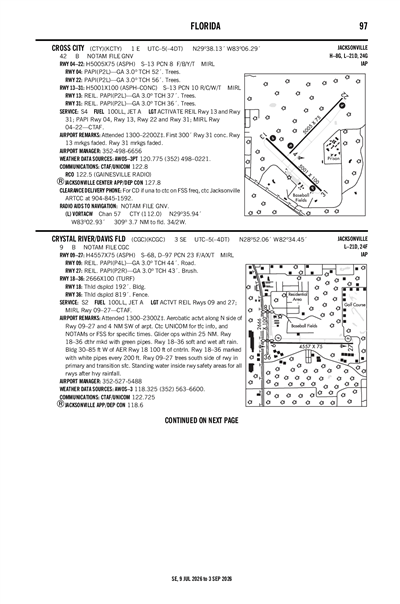

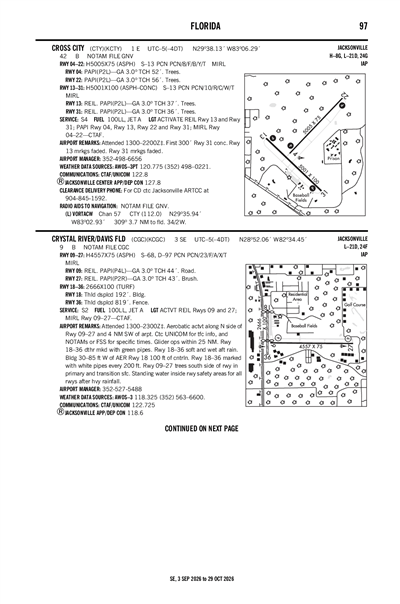

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KLEE (41nm)

RAW

Reported

Sun, 3/9 7:26 AM EDT

Valid

Sun, 3/9 8:00 AM EDT - Mon, 3/10 8:00 AM EDT

VFR

8:00 AM EDT - 11:00 AM EDT

Scattered 500'

Viz

6sm

Wind

VRB° 4kts

VFR

11:00 AM EDT - 2:00 PM EDT

Few 800'

Viz

6sm

Wind

210° 11kts

VFR

2:00 PM EDT - 8:00 PM EDT

Few 25,000'

Viz

6sm

Wind

240° 7kts

VFR

8:00 PM EDT - 6:00 AM EDT

Scattered 25,000'
Few 5,000'

Viz

6sm

Wind

180° 5kts

MVFR

6:00 AM EDT - 8:00 AM EDT

Showers in vicinity

Broken 3,000'

Viz

6sm

Wind

200° 10kts

KLEE 091126Z 0912/1012 VRB04KT P6SM SCT005
   FM091500 21011KT P6SM FEW008
   FM091800 24007KT P6SM FEW250
   FM100000 18005KT P6SM FEW050 SCT250
   FM101000 20010KT P6SM VCSH BKN030

KCGC

Domestic
2/20/252111Z	!CGC 02/004 CGC OBST TOWER LGT (ASR 1298608) 285801.90N0824129.80W (8.5NM NW CGC) 351.4FT (345.1FT AGL) U/S 2502202111-2503202359
2/9/252032Z	!CGC 02/002 CGC OBST TOWER LGT (ASR 1233517) 285003.90N0823933.40W (5.0NM WSW CGC) 335.0FT (333.0FT AGL) U/S 2502092032-2503262031
FDC
3/20/241312Z	!FDC 4/9027 CGC IAP CRYSTAL RIVER-CAPT TOM DAVIS FLD, CRYSTAL RIVER, FL. RNAV (GPS) RWY 9, AMDT 1C... LP MDA MINIMUMS NA. 2403201312-2603201308EST

ATC Tower

Attendance

0800-1800

Owner

CITRUS COUNTY
110 NORTH APOPKA AVE
INVERNESS, FL 34450
Phone: 352-527-5477

Manager

TODD REGAN
3600 W SOVEREIGN PATH, STE 241
LECANTO, FL 34461
Phone: 352-795-6868

FSS

SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF

NOTAM

CGC

Light Schedule

Lights

ACTVT REIL RWY 09, 27; MIRL RWY 09/27 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

Dimensions

4557 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

23 /F/A/X/T

Single Wheel

68,000lbs

Double Wheel

97,000lbs

Double Tandem

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	91°	271°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	28° 52' 02"N	28° 52' 02"N
Longitude	82° 34' 42"W	82° 33' 51"W
Elevation	7'	8'
Threshold Crossing Height	44 ft. AGL	43 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 18/36

Dimensions

2666 ft. x 100 ft.

Surface Type

TURF

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	180°	360°
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	28° 52' 19"N	28° 51' 53"N
Longitude	82° 34' 44"W	82° 34' 44"W
Elevation	6'	6'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-2	GLIDER OPNS WITHIN 25 NM.
A110-3	BLDG 30-85 FT W OF AER RWY 18 100 FT R OF CNTRLN.
A110-4	AEROBATIC ACTVT ALONG N SIDE OF RWY 09/27 & 4 NM SW OF ARPT. CTC UNICOM FOR TFC INFO, AND NOTAMS OR FSS FOR SPECIFIC TIMES.
A110-5	RWY 27 TREES ON BOTH SIDES OF RWY IN TRANSITION SFC.
A110-6	FOR CD CTC JACKSONVILLE APCH AT 904-741-0284.
A110-7	STANDING WATER INSIDE RWY SAFETY AREAS FOR ALL RWYS AFTER HVY RNFL.

CRYSTAL RIVER-CAPT TOM DAVIS FLD (ICAO: KCGC, IATA: CGC) is a public airport located in CRYSTAL RIVER, FL.
