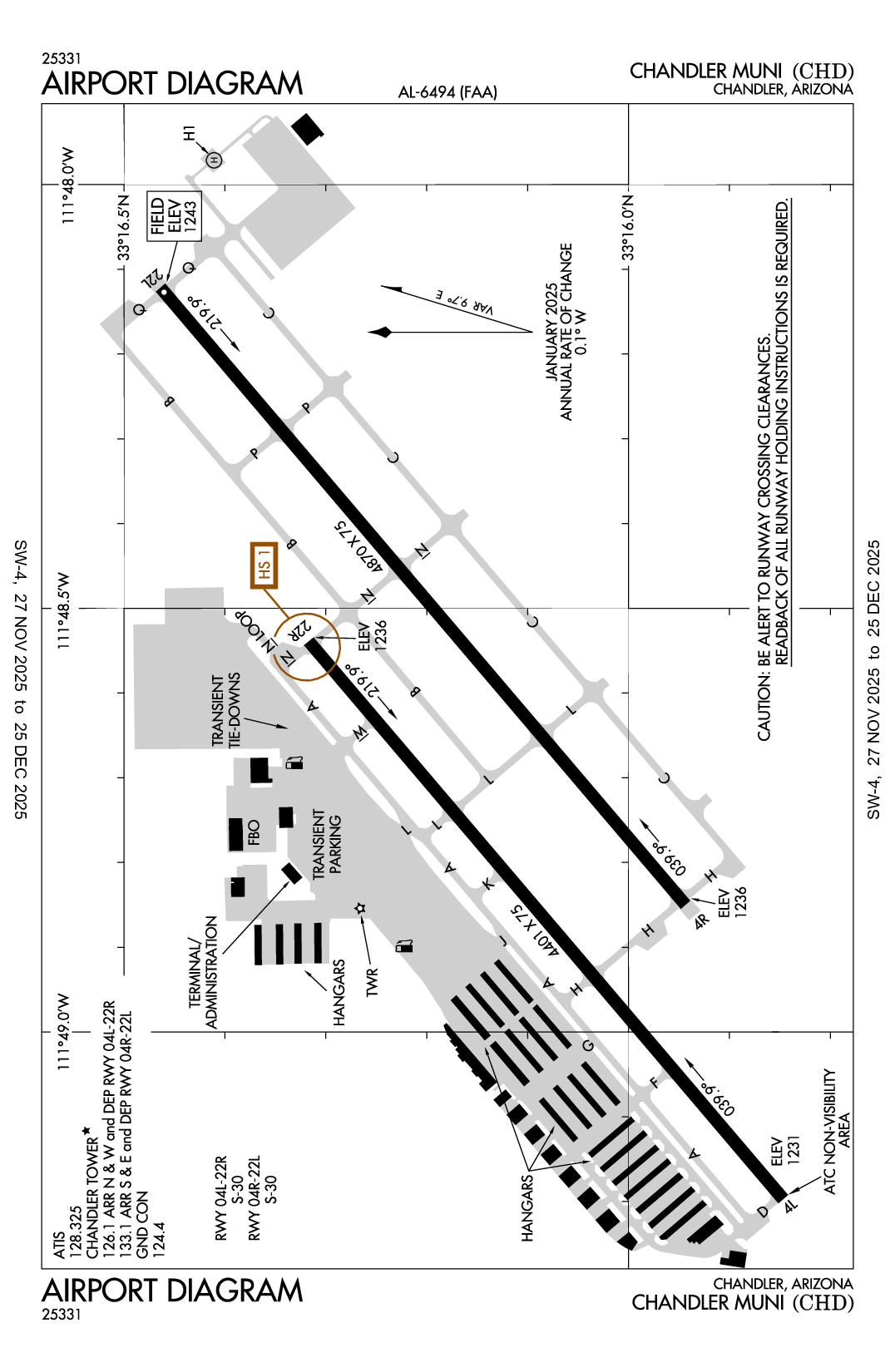

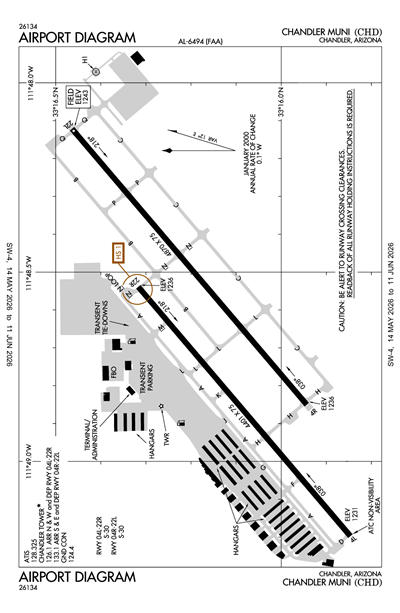

CHANDLER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCHD
CHANDLER MUNI
PublicPUB

3 miles SE of CHANDLER, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 16' 09"N 111° 48' 40"W
1243' MSL
2300' MSL
12E
JET A (FSII), 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
11/28/24-12/26/24
KCHD VFR
8:47 PM MST
Broken 25,000'
10sm
64°F
30°F
30.05"Hg
Calm
LAST
KCHD 230347Z 00000KT 10SM BKN250 18/M01 A3005 RMK LAST
Add Your Business

KCHD FBOs

Promote Listing
Chandler Air Service
UNICOM: 122.95
Phone: (480) 963-6420
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.03
Full Serve 6.53 5.59 5.64
Fuel Notes
Prices include tax
Promote Listing
Chandler Municipal Airport
UNICOM: 122.95
Phone: (480) 782-3540
No Rating Available
0 Reviews (Read | Sign In To Write)

KCHD Aircraft Service & Maintenance

Promote Listing
Chandler Avionics
Phone: (480) 309-9683
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 126.1

ATIS

ATIS
 128.325

Ground

GND/P
 124.4

Tower

LCL/P
ARR N &W
 126.1
LCL/P
DEP RWY 04L/22R
 126.1
LCL/P
ARR S & E
 133.1
LCL/P
DEP RWY 04R/22L
 133.1

Terminal Area Forecast

KIWA (9nm)
Mon, 12/23 4:20 AM MST
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 1:00 PM MST
Scattered 25,000'
6sm
110° 5kts
VFR
1:00 PM MST - 9:00 PM MST
Scattered 25,000'
6sm
290° 4kts
VFR
9:00 PM MST - 5:00 AM MST
Few 25,000'
6sm
120° 6kts
KIWA 231120Z 2312/2412 11005KT P6SM SCT250
   FM232000 29004KT P6SM SCT250
   FM240400 12006KT P6SM FEW250
KCHD
Domestic
12/23/241226Z !CHD 12/058 CHD AD AP ALL SFC WIP INSPECTION 2412231226-2412231500
12/22/240320Z !CHD 12/056 CHD OBST TOWER LGT (ASR 1210712) 331619.20N1114424.50W (3.6NM E CHD) 1567.9FT (270.0FT AGL) U/S 2412220320-2502050319
11/27/241500Z !CHD 11/082 CHD RWY 04R PAPI U/S 2411271500-2501312359
9/13/242231Z !CHD 09/021 CHD TWY A BTN TWY D AND TWY H CLSD ENGINE RUN-UPS 2409132231-PERM
FDC
12/17/241642Z !FDC 4/8004 CHD IAP CHANDLER MUNI, CHANDLER, AZ.
VOR RWY 4R, ORIG-B...
S-4R CAT A/B/C MDA 1960/HAT 720, VIS CAT C 2.
CIRCLING CAT A/B/C MDA 1960/HAA 717, VIS CAT C 2.
VDP AT 10.62 DME; DISTANCE VDP TO THLD 2.14 MILES.
TEMPORARY CRANES, UP TO 1653 MSL, BEGINNING 4.0NM W OF RWY 4R (2024-AWP-12427 THRU 12430-OE), TEMPORARY CRANE, 1491 MSL, 4.0 NM W OF RWY 4R (2024-AWP-252-OE).
2412171642-2507011642EST
Yes
MON-FRI 0500-1700
SAT-SUN 0500-1530
CITY OF CHANDLER
175 S. ARIZONA AVE
CHANDLER, AZ 85225
Phone: 480-782-2200
RYAN REEVES
CHANDLER MUNICIPAL AIRPORT, MS 802, PO BOX 4008
CHANDLER, AZ 85244
Phone: 480-782-3540
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
CHD
--
WHEN ATCT CLSD ACTVT PAPI RWY 04L, 04R, 22L & 22R; MIRL RWY 04R/22L & 04L/22R - CTAF. REIL RWY 4R & 22L ON CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04L/22R

4401 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 04L Runway 22R
True Heading 50°230°
Traffic Pattern Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 33° 15' 51"N 33° 16' 19"N
Longitude 111° 49' 12"W 111° 48' 32"W
Elevation 1,231' 1,236'
Threshold Crossing Height 48 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 04R/22L

4870 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 04R Runway 22L
True Heading 50°230°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD FAIR
Latitude 33° 15' 57"N 33° 16' 28"N
Longitude 111° 48' 51"W 111° 48' 07"W
Elevation 1,236' 1,243'
Threshold Crossing Height 39 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

100 ft. x 100 ft.
CONC
Excellent
NONE


--
--
--
--
  Runway H1 Runway
True Heading 78°258°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 33° 16' 25"N N/A
Longitude 111° 47' 58"W N/A
Elevation 1,236' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10135 FT LGTD PWR POLES & LINES N-S 1.5 MI W.
A110-11135 FT UNLGTD PWR POLES & LINES E-W 1 MI S.
A110-13TWY A BTN TWY D & F NOT VIS FM ATCT.
A110-15TSNT HELI PRKG & PAX PUP N SIDE BY TWY N.
A110-17HOPS ON TWY C; CHARLIE PAT FOR HEL TRNG.
A110-18WHEN ATCT CLSD, FOR CD CTC PHOENIX APCH - 602-306-2565.
A110-19GA TSNT FIXED WING PRKG BOXES IN FRONT OF TRML.
A110-2BIRDS & WILDLIFE ON & INVOF OF ARPT.
A110-20PARL RWYS; STAGGERED APCH ENDS.
A110-9AVOID OVERFLIGHT OF HIGH SCHOOL 2 NM SW.
CHANDLER MUNI (ICAO: KCHD, IATA: CHD) is a public airport located in CHANDLER, AZ.
