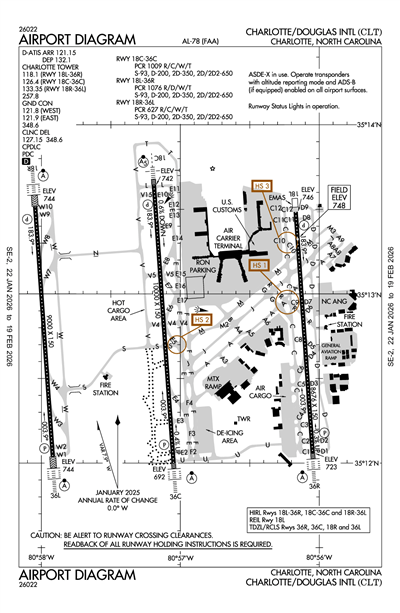

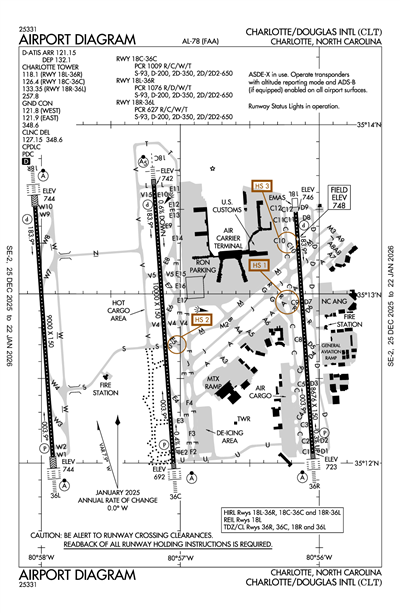

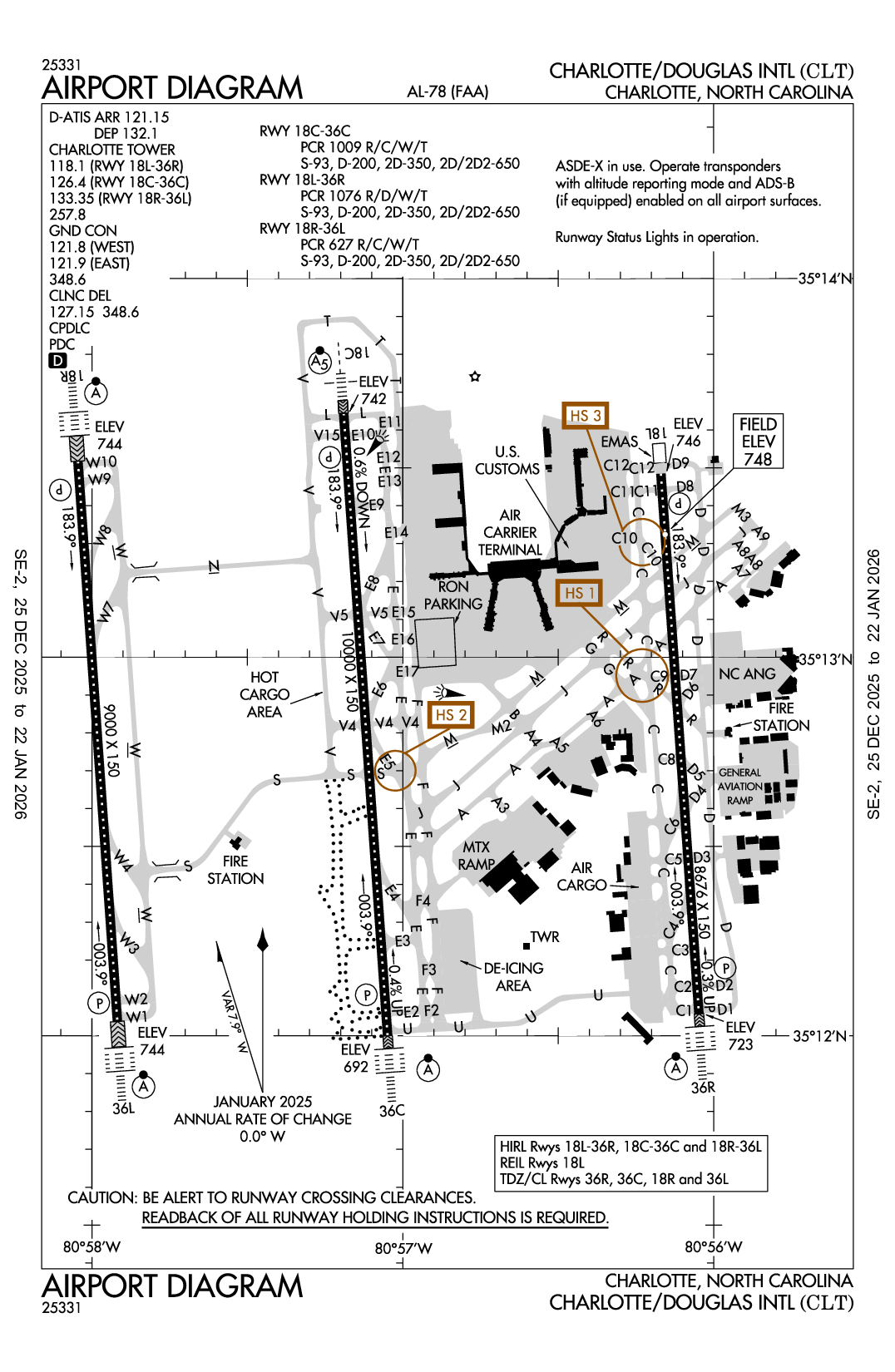

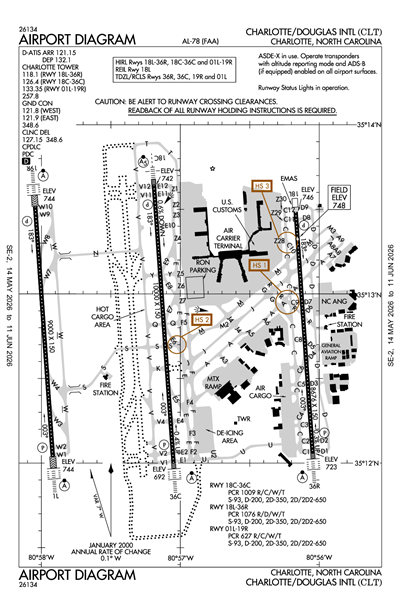

CHARLOTTE/DOUGLAS INTL - Airport Diagram

KCLT

CHARLOTTE/DOUGLAS INTL

PublicPUB

5 miles W of CHARLOTTE, NC

View on Map

Status

Operational

Coordinates

35° 12' 49"N 80° 56' 57"W

Elevation

748' MSL

Pattern Alt

1748' MSL

Mag Variation

07W

Fuel

JET A, JET A+, CILI, 100LL

FSS

RALEIGH (RDU)

Sectional

CHARLOTTE

ARTCC

ATLANTA (ZTL)

Data Effective

11/28/24-12/26/24

KCLT VFR

8:52 PM EST RAW

Few 25,000'

Viz

10sm

Temp

44°F

Dew

20°F

Pres

30.07"Hg

Wind

210° 16kts

Gusts 29kts

RMK

AO2 PK WND 22032/0128 SLP201 T00671067

KCLT 050152Z 21016G29KT 10SM FEW250 07/M07 A3007 RMK AO2 PK WND 22032/0128 SLP201 T00671067

Add Your Business

KCLT FBOs

Promote Listing

Wilson Air Center

UNICOM: 129.4

Phone: (704) 359-0440

Fax: (704) 359-0280

0 Reviews (Read | Sign In To Write)

Other

As of 12/3	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	7.84	7.15	7.26

Fuel Notes

Prices include tax

KCLT Aircraft Service & Maintenance

Promote Listing

Commander Instruments & Avionics Inc.

Phone: (704) 395-1412

Fax: (704) 208-4127

0 Reviews (Read | Sign In To Write)

Promote Listing

Archangel Services Corp.

Phone: (661) 300-0618

0 Reviews (Read | Sign In To Write)

KCLT Flight Schools & Aircraft Rental

Promote Listing

Aviation Institute of Maintenance - Charlotte

Phone: (980) 785-0700

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 122.95 CTAF --

ATIS

D-ATIS ARR	121.15
D-ATIS DEP	132.1

Approach

APCH/P

126.15

Approach/Departure

APCH/P DEP/P IC 120-295 8000 FT & BLW	120.05
APCH/P DEP/P IC 246-074 ABV 8000 FT	120.5
APCH/P DEP/P IC 075-245 ABV 8000 FT	124.0
APCH/P DEP/P IC 001-119 8000 FT & BLW	128.325
APCH/P DEP/P IC 296-360 8000 FT & BLW	134.75

Clearance Delivery

CD/P

127.15

Emergency

EMERG

121.5

Ground

GND/P WEST	121.8
GND/P EAST	121.9

Tower

LCL/P RWY 18L/36R	118.1
LCL/P RWY 18C/36C	126.4
LCL/P RWY 18R/36L	133.35

Other

BANKR STAR	135.6
BARMY DP	124.0
BEAVY DP RWY 36L, 36C	120.5
BEAVY DP RWY 18L, 18R, 18C, 36R	124.0
BOBZY DP	120.5
BTSEY STAR	125.35
CHARLOTTE DP HARAY & PITTY TRANSITIONS. RWY 36L, 3	120.5
CHARLOTTE DP RWY 18L, 18R, 18C, 36R	124.0
CHARLOTTE DP BUCKL, GANTS, LILLS & RUNIE TRANSITIO	124.0
CHSLY STAR	126.15
CLASS B 120-295 8000 FT & BLW	120.05
CLASS B 246-074 ABV 8000 FT	120.5
CLASS B 075-245 ABV 8000 FT	124.0
CLASS B 001-119 8000 FT & BLW	128.325
CLASS B 296-360 8000 FT & BLW	134.75
ESTRR DP	120.5
FILPZ STAR	125.35
ICONS DP RWY 36L, 36C	120.5
ICONS DP RWY 18L, 18R, 18C, 36R	124.0
JOJJO DP	120.5
JONZE STAR	135.6
JOOLS STAR	135.6
KERMIT DP 235-055	120.5
KERMIT DP 055-235	124.0
KILNS DP	124.0
KNIGHTS DP DEBIE, NEANO TRANSITIONS	120.05
KNIGHTS DP FLYYN, CEGAL TRANSITIONS, 18L, 18C,	120.05
KNIGHTS DP FLYYN, CEGAL TRANSITIONS RWY 36L, 36C	120.5
KNIGHTS DP PEKNN, LILLS, HAMLN, ANDYS TRANSITI	128.325
KNIGHTS DP 055-235	128.325
KRITR DP	120.5
KWEEN DP RWY 36L, 36C	120.5
KWEEN DP RWY 18L, 18R, 18C, 36R	124.0
LIINN STAR	125.35
LILLS DP	124.0
MAJIC STAR	126.15
MLLET STAR	126.15
PARQR STAR	125.35
RASLN STAR	126.15
STOCR STAR	126.15
UNARM STAR	135.6
WEAZL DP	120.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Hotspot

HOT SPOT

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KCLT

RAW

Reported

Wed, 12/4 9:00 PM EST

Valid

Wed, 12/4 9:00 PM EST - Fri, 12/6 1:00 AM EST

VFR

9:00 PM EST - 8:00 AM EST

Few 25,000'

Viz

6sm

Wind

220° 14kts

Gusts 26kts

VFR

8:00 AM EST - 12:00 PM EST

Few 25,000'

Viz

6sm

Wind

260° 14kts

Gusts 27kts

VFR

12:00 PM EST - 8:00 PM EST

Few 25,000'

Viz

6sm

Wind

310° 13kts

Gusts 24kts

VFR

8:00 PM EST - 1:00 AM EST

Sky Clear

Viz

6sm

Wind

350° 9kts

Gusts 16kts

KCLT 050200Z 0502/0606 22014G26KT P6SM FEW250
   FM051300 26014G27KT P6SM FEW250
   FM051700 31013G24KT P6SM FEW250
   FM060100 35009G16KT P6SM SKC

KCLT

Domestic
12/15/241730Z	!CLT 11/344 CLT AIRSPACE LOW FLYING HEL OPS WI AN AREA DEFINED AS 5NM RADIUS OF 351333N0805110W (5NM E CLT) SFC-500FT AGL 2412151730-2412151830
12/10/241615Z	!CLT 12/039 CLT AD AP RWY STATUS LGT SYSTEM U/S 2412101615-2412101915
12/10/241615Z	!CLT 12/038 CLT SVC TAR U/S 2412101615-2412101915
12/10/241615Z	!CLT 12/037 CLT SVC SMR U/S 2412101615-2412101915
12/10/240930Z	!CLT 12/036 CLT AD AP RWY STATUS LGT SYSTEM U/S 2412100930-2412101230
12/10/240930Z	!CLT 12/035 CLT SVC TAR U/S 2412100930-2412101230
12/10/240930Z	!CLT 12/034 CLT SVC SMR U/S 2412100930-2412101230
12/5/241800Z	!CLT 12/061 CLT RWY 36C PAPI U/S 2412051800-2412052100
12/5/241500Z	!CLT 12/060 CLT RWY 36C ALS U/S 2412051500-2412051800
12/5/241500Z	!CLT 12/059 CLT NAV ILS RWY 36C CAT II NA 2412051500-2412051800
12/4/242023Z	!CLT 12/062 CLT APRON TERMINAL TXL BTN SPOT 9S AND SPOT 11N CLSD TO ACFT WINGSPAN MORE THAN 118FT 2412042023-2507312359
12/4/240652Z	!CLT 12/055 CLT RWY 18L RWY END ID LGT U/S 2412040652-2412092000EST
12/4/240555Z	!CLT 12/054 CLT TWY S BTN TWY W AND TWY V CLSD 2412040555-2412050300
12/2/241300Z	!CLT 12/014 CLT OBST CRANE (ASN 2023-ASO-4384-NRA) 351147N0805649W (1.0NM S CLT) 734FT (85FT AGL) FLAGGED AND LGTD 2412021300-2506022300
12/2/241300Z	!CLT 12/013 CLT OBST CRANE (ASN 2023-ASO-4382-NRA) 351151N0805652W (1.0NM S CLT) 746FT (85FT AGL) FLAGGED AND LGTD 2412021300-2506022300
12/2/241300Z	!CLT 12/012 CLT OBST CRANE (ASN 2023-ASO-4381-NRA) 351159N0805654W (0.8NM S CLT) 738FT (85FT AGL) FLAGGED AND LGTD 2412021300-2506022300
11/29/241617Z	!CLT 11/351 CLT OBST TOWER LGT (ASR 1312958) 351347.70N0805548.40W (1.34NM NE CLT) 824FT (097FT AGL) U/S 2411291617-2502272359
11/28/240057Z	!CLT 11/345 CLT OBST TOWER LGT (ASR 1224163) 350705.30N0805443.70W (6.0NM SSE CLT) 836.9FT (258.9FT AGL) U/S 2411280057-2503280057
11/27/241550Z	!CLT 11/342 CLT RWY 36L PAPI U/S 2411271550-2412311700
11/22/241627Z	!CLT 11/306 CLT OBST TOWER LGT (ASR 1002306) 351605.10N0805407.30W (4.0NM NE CLT) 1018.0FT (247.0FT AGL) U/S 2411221627-2502222359
11/22/241627Z	!CLT 11/305 CLT OBST TOWER LGT (ASR 1002305) 351605.60N0805410.40W (4.0NM NE CLT) 1016.1FT (247.0FT AGL) U/S 2411221627-2502222359
11/22/241625Z	!CLT 11/304 CLT OBST TOWER LGT (ASR 1002324) 351606.00N0805413.60W (4.0NM NE CLT) 1004.9FT (250.0FT AGL) U/S 2411221625-2502222359
11/22/240506Z	!CLT 11/301 CLT AD AP WINDCONE FOR RWY 36C U/S 2411220506-2412312359
11/20/241826Z	!CLT 11/271 CLT RWY 05 TWY DIRECTION SIGN AT TWY B LEFT SIDE LGT U/S 2411201826-2502201600
11/10/241054Z	!CLT 11/103 CLT TWY C BTN TWY A AND TWY M IRREGULAR SFC 2411101054-2412131200
11/10/241054Z	!CLT 11/102 CLT TWY C SFC MARKINGS BTN TWY A AND TWY M NOT STD 2411101054-2412131200
11/10/240006Z	!CLT 11/097 CLT OBST TOWER LGT (ASR 1018217) 351421.00N0805645.90W (1.5NM NE CLT) 899.3FT (157.2FT AGL) U/S 2411100006-2502090500
11/7/241758Z	!CLT 11/071 CLT TWY E8 EDGE MARKINGS BTN RWY 18C/36C AND TWY E WEST SIDE NOT MARKED 2411071758-2412261200
10/31/240921Z	!CLT 10/350 CLT TWY N BTN TWY V AND TWY E CLSD 2410310921-2412261600
10/30/242131Z	!CLT 10/340 CLT TWY E TWY DIRECTION SIGN FOR TWY E3 LGT U/S 2410302131-2502051200
10/29/240000Z	!CLT 10/305 CLT AD AP ABN U/S 2410290000-2412311600
10/23/240300Z	!CLT 10/232 CLT TWY E BTN APCH END RWY 05 AND TWY E4 CLSD 2410230300-2502051200
10/15/241004Z	!CLT 10/157 CLT TWY F BTN TWY A AND TWY U WIP CONSTRUCTION WEST SIDE 2410151004-2502191100
10/15/240941Z	!CLT 10/155 CLT APRON DEICE PAD N 100FT CLSD 2410150941-2502191100
10/13/241503Z	!CLT 10/134 CLT TWY U CL MARKINGS BTN TWY E AND APCH END RWY 36C OBSC 2410131503-2502281200
10/10/241511Z	!CLT 10/118 CLT OBST TOWER LGT (ASR 1044362) 351344.50N0805013.30W (5.6NM E CLT) 992.8FT (253.0FT AGL) U/S 2410101511-2501090400
10/10/241128Z	!CLT 10/116 CLT TWY F2, F3, F4 CLSD 2410101128-2503071100
10/10/241128Z	!CLT 10/115 CLT APRON MAINT RAMP ACCESS CLSD 2410101128-2503071100
9/16/240956Z	!CLT 09/175 CLT TWY A EDGE MARKINGS BTN RWY 18L/36R AND TWY R SOUTH SIDE REMOVED 2409160956-2412131200
9/5/241039Z	!CLT 09/064 CLT TWY U SIGNS NOT STD 2409051039-2501151000
9/2/241200Z	!CLT 08/419 CLT AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 351637N0805508W (3.5NM NNE CLT) SFC-200FT AGL 2409021200-2509021200
7/31/241145Z	!CLT 07/457 CLT RWY 05/23 SFC MARKINGS NOT STD 2407311145-2502200501
7/29/241240Z	!CLT 07/400 CLT RWY 23 PAPI U/S 2407291240-2507311800
7/29/241238Z	!CLT 07/399 CLT RWY 23 RWY END ID LGT U/S 2407291238-2507311800
7/29/241237Z	!CLT 07/398 CLT RWY 05 PAPI U/S 2407291237-2507311800
7/29/241229Z	!CLT 07/397 CLT RWY 05 ALS U/S 2407291229-2507311800
4/5/241511Z	!CLT 04/077 CLT RWY 18L DECLARED DIST: TORA 8466FT TODA 8466FT ASDA 8466FT LDA 8676FT. 2404051511-2509292359
4/1/241435Z	!CLT 04/013 CLT RWY 05/23 NE 180FT CLSD EXC TAX 2404011435-PERM
4/1/241435Z	!CLT 04/012 CLT RWY 05/23 SW 6646FT CLSD EXC TAX 2404011435-PERM
2/19/241352Z	!CLT 02/220 CLT RWY 18C/36C WIP CONST NW SIDE 2402191352-2412301700
1/12/240028Z	!CLT 01/082 CLT TWY A8 BTN RWY 05/23 AND TWY A CLSD 2401120028-2412301700
12/4/231139Z	!CLT 12/024 CLT TWY A6 CLSD 2312041139-2412301700
12/4/231137Z	!CLT 12/023 CLT TWY A5 CLSD 2312041137-2412301700
11/28/231557Z	!CLT 11/191 CLT RWY 18C/36C WIP CONST N END 2311281557-2412301600
11/28/231547Z	!CLT 11/190 CLT RWY 18L/36R WIP UNGROOVED BTN TWY D4 AND TWY C11 2311281547-2412301600
11/16/230947Z	!CLT 11/119 CLT APRON TERMINAL RAMP SFC MARKINGS NOT STD 2311160947-2412201700
FDC
12/5/241330Z	!FDC 4/1896 CLT SID CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. CHARLOTTE THREE DEPARTURE... KERMIT FOUR DEPARTURE... KNIGHTS THREE DEPARTURE... DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, CLT VOR/DME OUT OF SERVICE. 2412051330-2412122030EST
12/5/241330Z	!FDC 4/1886 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. ILS OR LOC RWY 18R, AMDT 2A... ILS RWY 18R (SA CAT I), AMDT 2A... ILS RWY 18R (CAT II AND III), AMDT 2A... PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME OUT OF SERVICE AND BZM VOR OUT OF SERVICE. 2412051330-2412122030EST
12/5/241330Z	!FDC 4/1885 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. ILS OR LOC RWY 36L, AMDT 1B... ILS RWY 36L (SA CAT I), AMDT 1B... ILS RWY 36L (CAT II AND III) AMDT 1B... PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME OUT OF SERVICE AND BZM VOR OUT OF SERVICE. 2412051330-2412122030EST
12/5/241330Z	!FDC 4/1884 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. ILS OR LOC RWY 36C, AMDT 17... ILS RWY 36C (CAT II AND III), AMDT 17... PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME OUT OF SERVICE AND BZM VOR OUT OF SERVICE. 2412051330-2412122030EST
12/5/241330Z	!FDC 4/1883 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. ILS OR LOC RWY 36R, AMDT 12A... ILS RWY 36R (SA CAT I), AMDT 12A... ILS RWY 36R (CAT II AND III), AMDT 12A... MISSED APPROACH: CLIMB TO 1320 THEN CLIMBING RIGHT TURN TO 4000 ON HEADING 065 AND GSO VORTAC R-226 TO EDDEL/GSO 54.04 DME AND HOLD (DME REQUIRED), CLT VOR/DME OUT OF SERVICE. 2412051330-2412122030EST
12/5/241330Z	!FDC 4/1880 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. ILS OR LOC RWY 18C, AMDT 11... MISSED APPROACH: CLIMB TO 3000 ON HEADING 183 AND CTF VOR/DME R-304 TO DENNE/CTF 37.94 DME/RADAR AND HOLD, CLT VOR/DME OUT OF SERVICE. 2412051330-2412122030EST
12/5/241330Z	!FDC 4/1879 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. ILS OR LOC RWY 18L, AMDT 10A... MISSED APPROACH: CLIMB TO 1300 THEN CLIMBING LEFT TURN TO 4000 ON HEADING 090 AND ON CTF VOR/DME R-349 TO LOCAS/CTF 34.06 DME AND HOLD (DME REQUIRED), CLT VOR/DME OUT OF SERVICE. 2412051330-2412122030EST
11/7/241913Z	!FDC 4/0877 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. RNAV (GPS) Y RWY 18L, AMDT 5... LNAV MDA 1260/HAT 512 ALL CATS, VIS CATS C/D 1 3/8. VDP 1.4 TO RW18L. TEMPORARY CRANES UP TO 939 MSL BEGINNING 3188FT W OF RWY 18L (2023-ASO-9540 THRU 9547-NRA). TEMPORARY CRANE 959 MSL 2365FT W OF RWY 18L (2024-ASO-3023-NRA). 2411071913-2501121913EST
11/7/241913Z	!FDC 4/0869 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. RNAV (GPS) Y RWY 18C, AMDT 4... LPV DA 1055/HAT 313 ALL CATS. LNAV/VNAV DA 1170/HAT 428 ALL CATS, VIS ALL CATS RVR 4000. LNAV MDA 1260/HAT 518 ALL CATS, VIS CATS C/D RVR 5500. VDP 1.4 NM TO RW18C. FOR INOP ALS, INCREASE LPV ALL CATS VISIBILITY TO RVR 4500 AND LNAV CAT C/D VISIBILITY TO 1 3/8 SM. TEMPORARY CRANES UP TO 939 MSL BEGINNING 1610FT SE OF RWY 18C (2023-ASO-9540 THRU 9547-NRA). TEMPORARY CRANE 959 MSL 3141FT SE OF RWY 18C (2024-ASO-3023-NRA). 2411071913-2501121913EST
11/7/241910Z	!FDC 4/0865 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. RNAV (RNP) Z RWY 18C, AMDT 1... RNP 0.11 DA 1099/HAT 357 ALL CATS, VIS ALL CATS RVR 3000. FOR INOP ALS, INCREASE RNP 0.11 ALL CATS VISIBILITY TO RVR 5500. TEMPORARY CRANES UP TO 939 MSL BEGINNING 1610FT SE OF RWY 18C (2023-ASO-9540 THRU 9547-NRA). TEMPORARY CRANES 830 MSL BEGINNING 4690FT N OF RWY 18C (2022-ASO-6704 THRU 6707-NRA). 2411071910-2501121910EST
11/7/241910Z	!FDC 4/0863 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. ILS OR LOC RWY 18C, AMDT 11... S-ILS 18C DA 1054/HAT 312 ALL CATS. CHANGE NOTE TO READ: FOR INOP ALS, INCREASE S-ILS 18C ALL CATS VISIBILITY TO RVR 4500, AND S-LOC 18C CAT C/D VISIBILITY TO 1 3/8 SM. TEMPORARY CRANES UP TO 939 MSL BEGINNING 1610FT SE OF RWY 18C (2023-ASO-9540 THRU 9547-NRA). 2411071910-2501121910EST
10/31/241237Z	!FDC 4/6861 CLT ODP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A... ADD TAKEOFF OBSTACLE NOTES: RWY 36C, TEMPORARY CRANE 2547FT FROM DER, 1153FT LEFT OF CENTERLINE, 100FT AGL/ 809FT MSL (2024-ASO-5362-NRA). RWY 36R, TEMPORARY CRANES BEGINNING 1091FT FROM DER, BEGINNING 394FT RIGHT OF CENTERLINE, 36FT AGL/ 786FT MSL (2023-ASO-1332 THRU 1335-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2410311237-2412311237EST
10/25/241358Z	!FDC 4/4218 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. ILS OR LOC RWY 18R, AMDT 2A... ILS OR LOC RWY 36L, AMDT 1B... ILS RWY 18R (SA CAT I), AMDT 2A... ILS RWY 18R (CAT II - III), AMDT 2A... ILS RWY 36L (SA CAT I), AMDT 1B... ILS RWY 36L (CAT II - III), AMDT 1B... DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, BZM VOR/DME OUT OF SERVICE. 2410251358-2504161358EST
9/13/241606Z	!FDC 4/5047 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. ILS OR LOC RWY 36C, AMDT 17... ILS RWY 36C (CAT II-III), AMDT 17... RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT DME UNUSABLE R185-R205. 2409131606-2609131604EST
3/21/240901Z	!FDC 4/9229 CLT SID CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. KNIGHTS THREE DEPARTURE ... ANDYS TRANSITION: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME 185-205 UNUSABLE. 2403210901-2603211732EST
3/21/240901Z	!FDC 4/9228 CLT SID CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. KERMIT FOUR DEPARTURE ... ANDYS TRANSITION, TREAL TRANSITION: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME 185-205 UNUSABLE. 2403210901-2603211732EST
1/11/242211Z	!FDC 4/3122 CLT IAP CHARLOTTE/DOUGLAS INTL, CHARLOTTE, NC. ILS OR LOC RWY 36C, AMDT 17... ILS RWY 36C (CAT II-III), AMDT 17... DISREGARD NOTE: DQG ILS LLZ RWY 36C UNUSABLE FOR ROLLOUT GUIDANCE. 2401112211-2601112208EST

ATC Tower

Yes

Attendance

ALL
J8 FUEL ALSO AVBL.

Owner

CITY OF CHARLOTTE
600 EAST FOURTH ST
CHARLOTTE, NC 28202
Phone: 704-336-2241

Manager

HALEY GENTRY
5601 WILKINSON BLVD.
CHARLOTTE, NC 28208
Phone: 704-359-4000

FSS

RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF

NOTAM

CLT

Light Schedule

Sunset to Sunrise

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 05/23

Dimensions

7502 ft. x 150 ft.

Surface Type

ASPH CONC

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

73 /R/B/W/T

Single Wheel

93,000lbs

Double Wheel

170,000lbs

Double Tandem

350,000lbs

Dual Dbl Tand

650,000lbs

	Runway 05	Runway 23
True Heading	48°	228°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	35° 12' 32"N	35° 13' 21"N
Longitude	80° 56' 60"W	80° 55' 52"W
Elevation	706'	747'
Threshold Crossing Height	73 ft. AGL	72 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4R
Approach Lights	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights		Yes

Runway 18C/36C

Dimensions

10000 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

82 /R/B/W/T

Single Wheel

93,000lbs

Double Wheel

200,000lbs

Double Tandem

350,000lbs

Dual Dbl Tand

650,000lbs

	Runway 18C	Runway 36C
True Heading	176°	356°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	35° 13' 39"N	35° 11' 60"N
Longitude	80° 57' 11"W	80° 57' 03"W
Elevation	742'	692'
Threshold Crossing Height	69 ft. AGL	72 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4L
Approach Lights	MALSR	ALSF2
Centerline Lights	Yes	Yes
Runway End Identifier Lights

Runway 18L/36R

Dimensions

8677 ft. x 150 ft.

Surface Type

ASPH CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

68 /R/B/W/T

Single Wheel

93,000lbs

Double Wheel

200,000lbs

Double Tandem

350,000lbs

Dual Dbl Tand

650,000lbs

	Runway 18L	Runway 36R
True Heading	176°	356°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	35° 13' 29"N	35° 12' 03"N
Longitude	80° 56' 10"W	80° 56' 03"W
Elevation	746'	723'
Threshold Crossing Height	76 ft. AGL	71 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4R
Approach Lights		ALSF2
Centerline Lights	Yes	Yes
Runway End Identifier Lights	Yes

Runway 18R/36L

Dimensions

9000 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Excellent

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

63 /R/B/W/T

Single Wheel

93,000lbs

Double Wheel

200,000lbs

Double Tandem

350,000lbs

Dual Dbl Tand

650,000lbs

	Runway 18R	Runway 36L
True Heading	176°	356°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	35° 13' 31"N	35° 12' 02"N
Longitude	80° 58' 03"W	80° 57' 55"W
Elevation	744'	744'
Threshold Crossing Height	65 ft. AGL	70 ft. AGL
Visual Glide Path Angle	2.8°	3°
Visual Slope Indicator	P4R	P4L
Approach Lights	ALSF2	ALSF2
Centerline Lights	Yes	Yes
Runway End Identifier Lights

A110-1	RWY SFC COND INFO DURG DUTY HRS PHONE ANG OPS V583-9177/9144 OR AIRBORNE 292.2.
A110-10	RWY STATUS LGTS IN OPR.
A110-11	TWY C4 AND C6: WHEN TAXIING AIRCRAFT WITH COCKPIT TO MAIN GEAR DISTANCE GREATER THAN 90 FT, PILOT MUST PERFORM JUDGEMENTAL OVERSTEERING INSTEAD OF COCKPIT OVER CENTERLINE STEERING.
A110-12	GROUP IV ACFT WITH A WINGSPAN GTR THAN 118 FT ARE PROHIBITED FM EXITING RWY 18L/36R AT TWY C10.
A110-13	TWY C10 UNUSBL FOR TXG ONTO RWY 18L/36R.
A110-14	CLT RAMP, NON-MOVMT AREA, IS CTLD RAMP; CTC RAMP CTL PRIOR TO ENTERING.
A110-15	DUAL TAXI BTN DEP CALL SPOTS 11/12 AND 13N/13S RSTRD TO ONE ACFT LESS THAN 214 FT AND ONE ACFT LESS THAN 118 FT OR TWO ACFT LESS THAN 171 FT.
A110-16	DUAL TAXI BTN DEP CALL SPOTS 22/23 AND 24N/24S RSTRD TO ACFT WITH WINGSPANS LESS THAN 118 FT.
A110-17	TWY C10 RSTRD TO ACFT WITH WINGSPAN LESS THAN 171 FT WHEN EXITING RWY.
A110-18	GROUP III ACFT WITH A WINGSPAN GTR THAN 79 FT ARE PROHIBITED FM MAKING A NBND TURN ONTO TWY C WHEN TAXIING WB ON TWY A.
A110-19	TWY D, RESTRICTED TO 15 MPH OR LESS WITH WINGSPAN 171 FT AND GREATER.
A110-20	GROUP III ACFT WITH A WINGSPAN GTR THAN 79 FT ARE PROHIBITED FM MAKING A SBND TURN ONTO TWY C WHEN TAXIING NWBND ON TWY R.
A110-21	TWY C FROM THE APCH OF RWY 18L TO RWY 05/23, AND TWY M FROM THE APRON TO RWY 18L/36R RSTRD TO 15 MPH OR LESS WITH WINGSPAN 171 FT AND GTR.
A110-22	GROUP VI ACFT WITH A WINGSPAN GTR THAN 214 FT (65M) ARE PROHIBITED ON TWY M BETWEEN THE TRML RAMP AND TWY C, AS WELL AS TWY C NORTH OF TWY M.
A110-23	ALL ACFT ARE PROHIBITED FM EXITING RWY 36R SEBD AT TWY R.
A110-24	TRML RAMP BLUE TXL FROM SPOT 29W TO SPOT 34S MAX WINGSPAN 82 FT.
A110-25	TRML RAMP ORANGE TXL FROM SPOT 26S TO SPOT 27E MAX WINGSPAN 118 FT.
A110-26	TRML RAMP YELLOW TXL FROM SPOT 29C TO SPOT 33C MAX WINGSPAN 118 FT.
A110-27	TRML RAMP ORANGE TXL FROM SPOT 29E TO SPOT 34N MAX WINGSPAN 82 FT.
A110-28	TRML RAMP BLUE TXL AT SPOT 28S BTN CONCOURSE D & E ALLEY MAX WINGSPAN 118 FT.
A110-29	TRML RAMP BLUE TXL FROM SPOT 26N TO SPOT 27W MAX WINGSPAN 118 FT.
A110-30	TRML RAMP ORANGE TXL AT SPOT 28N BETWEEN CONCOURSE D & E ALLEY MAX WINGSPAN 94 FT.
A110-31	AIRPLANE DESIGN GROUP-V AND ABV ACFT ARE PROHIBITED FM DEP RWY 18L.
A110-4	BE ALERT FOR FLOCKS OF MIGRATORY BIRDS ON & INVOF ARPT.
A110-8	MILITARY: ANG: CTC COMD POST 30 MIN PRIOR LDG. AMOPS/COMD POST - 292.25 (CALL NEWSREEL).
A110-9	SUCCESSIVE OR SIMULTANEOUS DEPARTURES FROM RWY 18L AND RWY 18C ARE APPROVED WITH COURSE DIVERGENCE BEGINNING NO FURTHER THAN 4 MILES FROM END OF RWY.

CHARLOTTE/DOUGLAS INTL (ICAO: KCLT, IATA: CLT) is a public airport located in CHARLOTTE, NC.

iFlightPlanner

KCLT

CHARLOTTE/DOUGLAS INTL

PublicPUB

KCLT FBOs

KCLT Aircraft Service & Maintenance

KCLT Flight Schools & Aircraft Rental

Send Message to Airport Company

Enter your information and message below.

ATIS

Approach

Approach/Departure

Clearance Delivery

Emergency

Ground

Tower

Other

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

Runway 05/23

Runway 18C/36C

Runway 18L/36R

Runway 18R/36L

iFlightPlanner

KCLT CHARLOTTE/DOUGLAS INTL PublicPUB

KCLT FBOs

KCLT Aircraft Service & Maintenance

KCLT Flight Schools & Aircraft Rental

Send Message to Airport Company Enter your information and message below.

ATIS

Approach

Approach/Departure

Clearance Delivery

Emergency

Ground

Tower

Other

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

Runway 05/23

Runway 18C/36C

Runway 18L/36R

Runway 18R/36L

KCLT

CHARLOTTE/DOUGLAS INTL

PublicPUB

Send Message to Airport Company

Enter your information and message below.
