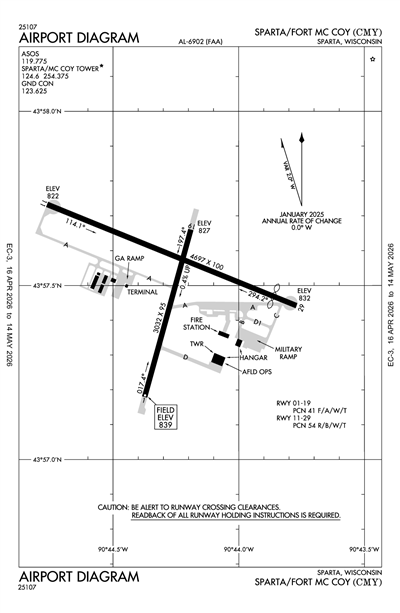

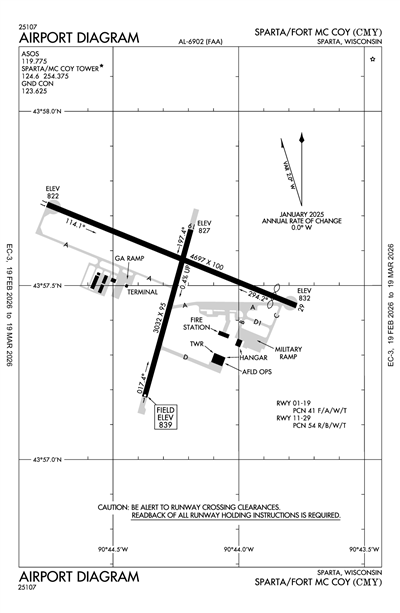

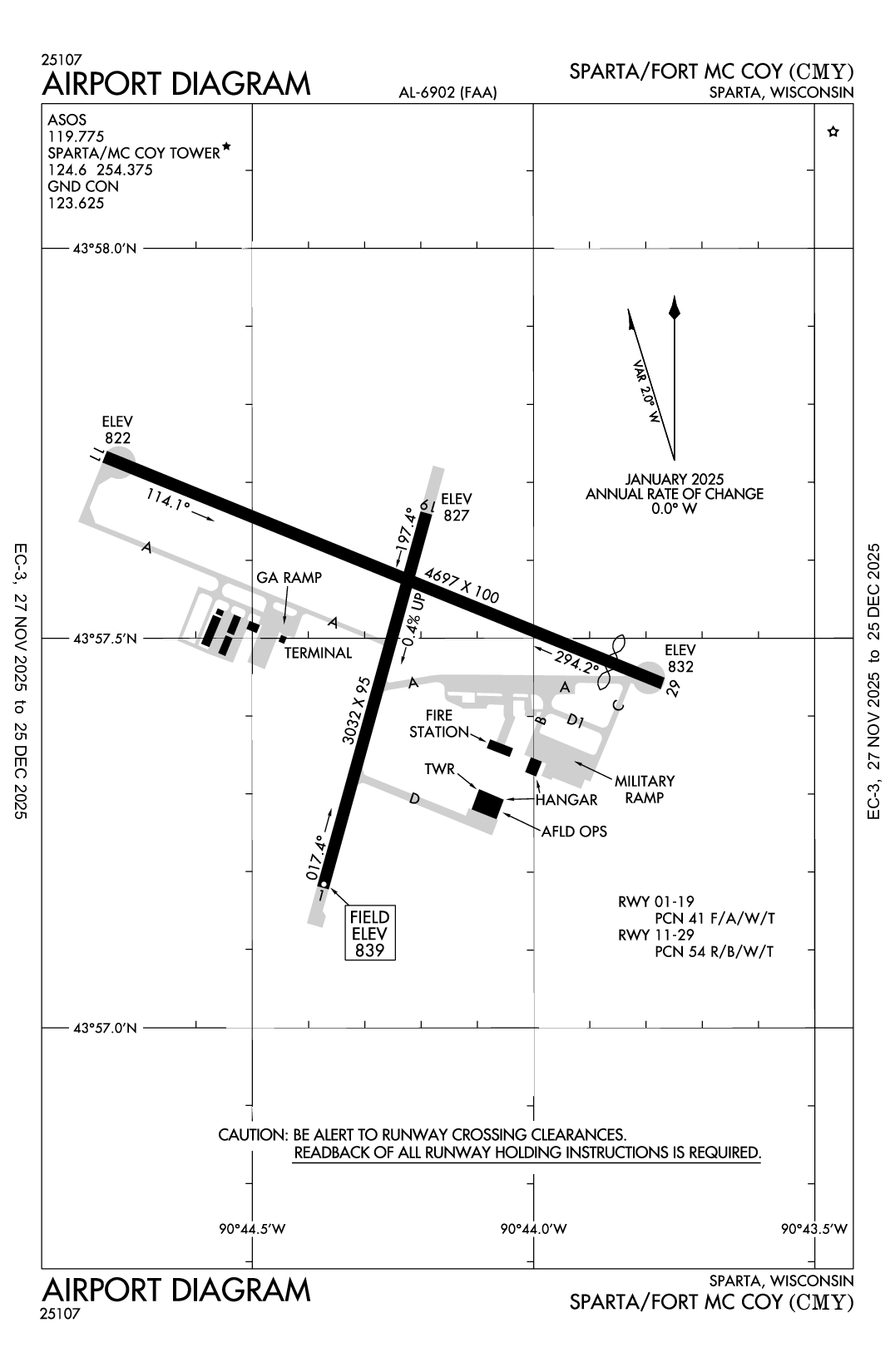

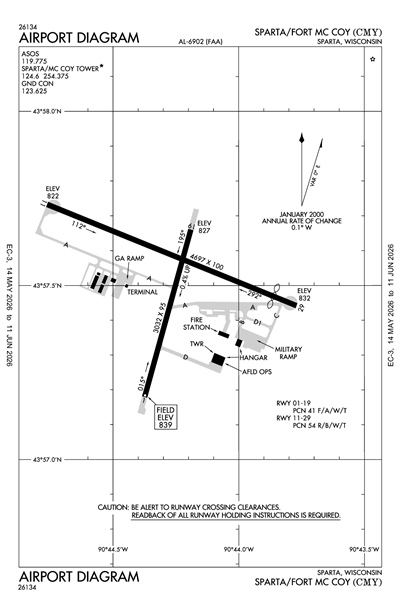

SPARTA/FORT MC COY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCMY
SPARTA/FORT MC COY
PublicPUB

3 miles NE of SPARTA, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 57' 31"N 90° 44' 16"W
839' MSL
1839' MSL
00E
JET A+, CILI, 100LL
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
11/28/24-12/26/24
KCMY VFR
5:55 AM CST
Broken 13,000'
9sm
33°F
27°F
29.94"Hg
Calm
AO2 SLP152 T00071029 10015 20006 55001 $
KCMY 231155Z AUTO 00000KT 9SM BKN130 01/M03 A2994 RMK AO2 SLP152 T00071029 10015 20006 55001 $
Add Your Business

KCMY FBOs

Promote Listing
Sparta/Fort McCoy Airport
Phone: (608) 269-4340
Other: (608) 388-4207
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.25
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 124.6

ASOS

ASOS
 119.775

Emergency

EMERG
 121.5

Ground

GND/P
 123.625

Tower

LCL/P
 124.6

Other

OPS
RANGE INFO
 128.725
RANGE CTL
 30.05
RANGE CTL
 41.35
RANGE CTL
 134.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KVOK (21nm)
Mon, 12/23 3:00 AM CST
Mon, 12/23 3:00 AM CST - Tue, 12/24 9:00 AM CST
VFR
3:00 AM CST - 8:00 AM CST
Broken 10,000'
6sm
29.94"Hg
180° 9kts
VFR
Temporary 4:00 AM CST - 8:00 AM CST
Light Freezing Drizzle
No Clouds
N/A
Calm
Moderate, In Precipitation (Clear): up to 3,000'
LIFR
Becoming 8:00 AM CST - 11:00 AM CST
Mist
Overcast 100'
5.59sm
29.97"Hg
VRB° 6kts
LIFR
Becoming 11:00 AM CST - 9:00 PM CST
Light Snow and Mist
Overcast 200'
4.97sm
30.00"Hg
VRB° 6kts
Light, In Cloud (Rime): 200-6,200'
IFR
Becoming 9:00 PM CST - 9:00 AM CST
Overcast 1,000'
Broken 500'
6sm
30.18"Hg
VRB° 6kts
TAF KVOK 230900Z 2309/2415 18009KT 9999 BKN100 QNH2994INS
   TEMPO 2310/2314 -FZDZ 660003
   BECMG 2314/2315 VRB06KT 9000 BR OVC001 QNH2996INS
   BECMG 2317/2318 VRB06KT 8000 -SN BR OVC002 620026 QNH2999INS
   BECMG 2403/2404 VRB06KT 9999 NSW BKN005 OVC010 QNH3019INS TX01/2315Z TNM04/2409Z
KCMY
Domestic
12/16/241458Z !CMY 12/006 CMY TWY C SFC MARKING NOT STD 2412161458-2503142100
12/16/241454Z !CMY 12/005 CMY TWY C EDGE LGT U/S 2412161454-2503142100
12/12/241431Z !CMY 12/004 CMY OBST TOWER LGT (ASN 2023-AGL-12950-OE) 434908N0903536W (10.5NM SE CMY) 1427FT (365FT AGL) U/S 2412121431-2501261430
10/25/240837Z !CMY 10/017 CMY OBST TOWER LGT (ASR 1242288) 440106.10N0904059.00W (4.3NM NNE CMY) 1123.0FT (250.0FT AGL) U/S 2410250837-2501252359
10/23/242115Z !CMY 10/015 CMY SVC AUTOMATED WX BCST SYSTEM 119.775 U/S USE 124.6 2410232115-2501172200
10/23/242103Z !CMY 10/014 CMY TWY D1 CLSD 2410232103-2501172200
10/23/242102Z !CMY 10/012 CMY RWY 01 PAPI U/S 2410232102-2501172200
10/23/242102Z !CMY 10/011 CMY TWY D EDGE LGT U/S 2410232102-2501172200
10/23/242101Z !CMY 10/010 CMY TWY C HELIPAD CLSD 2410232101-2501172200
10/23/242100Z !CMY 10/009 CMY TWY A BTN RWY 01/19 AND TWY C CLSD 2410232100-2501172200
10/23/242100Z !CMY 10/008 CMY TWY B CLSD 2410232100-2501172200
7/17/241753Z !CMY 07/031 CMY OBST TOWER LGT (ASR 1034243) 434801.50N0905401.80W (11.8NM SW CMY) 1657.8FT (299.9FT AGL) U/S 2407171753-2501012359
FDC
11/4/241830Z !FDC 4/8693 CMY IAP SPARTA/FORT MC COY, SPARTA, WI.
RNAV (GPS) RWY 29, AMDT 1B...
LPV DA NA. LNAV/VNAV DA NA. VDP NA. TEMPORARY CONSTRUCTION EQUIPMENT 867 MSL APCH END RWY 29 (2024-AGL-6138-NRA).
2411041830-2503311830EST
10/27/232028Z !FDC 3/2991 CMY IAP SPARTA/FORT MC COY, SPARTA, WI.
NDB RWY 29, AMDT 4B...
RNAV (GPS) RWY 29, AMDT 1B...
CIRCLING TO RWY 11 NA AT NIGHT.
2310272028-2510272028EST
10/27/232016Z !FDC 3/2987 CMY IAP SPARTA/FORT MC COY, SPARTA, WI.
RNAV (GPS) RWY 11, AMDT 1B...
LPV DA NA.
LNAV/VNAV DA NA.
VDP NA.
PROCEDURE NA AT NIGHT.
2310272016-2510272016EST
Military
12/23/241300Z !KCMY M0077/24 CMY SVC JET A FUEL NOT AVBL 2412231300-2412261600
12/16/241527Z AERODROME TWY C ROTARY WING ACFT ONLY. FIXED WING ACFT CALL OPS AT 502-898-4107 OR 502-898-4232.
12/16/241503Z AERODROME OBSTACLE CRANE 440058N0904112W (4NM NORTHEAST KCMY) 999FT (127FT AGL) FLAGGED AND UNLIGHTED CRANE WILL BE LOWERED EACH DAY, OPERATIONAL HOURS MON-FRI 1300 Z TO 2100 Z.
12/16/241456Z FUEL POINTS 1 AND 3 U/S
Yes
MON-FRI 1400-2200Z++
EXCP FEDERAL HOLS.
U S ARMY
COMMANDER
FORT MC COY, WI 54656
Phone: 608-388-4207
JAMES HUBBARD
ATTN:AMIM-MCO-A
FORT MC COY, WI 54656
Phone: 608-388-4207
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
CMY
--
WHEN TWR CLSD, MIRL RWY 11/29 PRESET TO LOW SS-SR; TO INCR INTST MIRL RWY 11/29; ACTVT REIL RWY 11 & 29; MIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
Pilot Instruction

Runway 01/19

3032 ft. x 95 ft.
ASPH
Good
NONE
MED
41 /F/A/W/T
--
--
--
--
  Runway 01 Runway 19
True Heading 15°195°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 57' 11"N 43° 57' 40"N
Longitude 90° 44' 22"W 90° 44' 11"W
Elevation 839' 826'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

4697 ft. x 100 ft.
ASPH
Good
NONE
MED
54 /R/B/W/T
--
--
--
--
  Runway 11 Runway 29
True Heading 112°292°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 57' 44"N 43° 57' 27"N
Longitude 90° 44' 46"W 90° 43' 46"W
Elevation 822' 832'
Threshold Crossing Height 42 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-11RWY 01, 11, 29 NSTD SAFETY AREA BYD EACH END DUE TO TERRAIN GRADE AND FENCING. NSTD NORTH LATERAL CLEARANCE RWY 11/29; SEE KCMY AP/1 FOR FURTHER INFORMATION..
A110-13EXTSV VFR ASSAULT STRIP TFC EAST OF RY 11/29.
A110-14INTENSE PARADROP OPS INVOF 3.5 NM EAST-NORTHEAST OF AFLD YEAR ROUND.
A110-16RSTD: ARFF SVC AVBL UPON REQ WITH 72 HR NTC, INDEX B SVC AVBL H24. 72 HR NTC FOR REQ C608-388-2508, DSN 280-2508.
A110-17FOR CD WHEN ATCT CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A110-2OCCASIONAL WILDGAME & BIRDS ON & INVOF ARPT.
A110-324 HR PPR RQRD BY ALL FOR SVC AFTER 2200Z++ AND WKENDS; C608-388-4107 DSN 280-4107, CLSD FEDERAL HOL AND OTHER TIMES BY NOTAM; R/W HOT PIT AVBL TO TRAINED AIRCREWS ONLY. FOR FURTHER FUEL AND TRAINING REQUIREMENTS REFER TO AP1.
A110-4FICONS NOT MONITORED AFT HRS.
A110-5SNOW REMOVAL EQUIP OPRS MONITOR CTAF WHEN ATCT CLOSED.
A110-6SUPPLEMENTARY LGTD WINDCONES RY 11 & 01.
A110-7RAPIDLY RISING TERRAIN 1 NM NORTHWEST TO NORTHEAST OF ARPT.
A110-8ACFT C130 AND LRGR, 180 DEG TURNS ALLOWED ONLY ON CONC SFC AT EAST AND WEST ENDS OF RWY 11/29 AND SOUTH END RWY 01/19 CONC SFC.
A110-9R6901B 500 YDS DEP END RY 11.
SPARTA/FORT MC COY (ICAO: KCMY, IATA: CMY) is a public airport located in SPARTA, WI.
