iFlightPlanner



...
COMPTON/WOODLEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCPM
COMPTON/WOODLEY
PublicPUB

2 miles SW of COMPTON, CA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 53' 24"N 118° 14' 38"W
99' MSL
999' MSL
14E
100LL
HAWTHORNE (HHR)
LOS ANGELES
LOS ANGELES (ZLA)
11/28/24-12/26/24
KHHR (5nm) IFR
3:53 AM PST
Mist
Overcast 700'
5sm
57°F
53°F
30.12"Hg
120° 6kts
AO2 SLP199 T01390117 10144 20133 58001 $
KHHR 231153Z AUTO 12006KT 5SM BR OVC007 14/12 A3012 RMK AO2 SLP199 T01390117 10144 20133 58001 $

KCPM FBOs

Compton/Woodley Airport
UNICOM: 123.05
Phone: (310) 631-8140
No Rating Available
1 Review (Read | Sign In To Write)
0 out of 1 Recommend
Independent
As of 12/15
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.84
Full Serve 6.26
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3PT

AWOS-3PT
310-631-3022
127.15

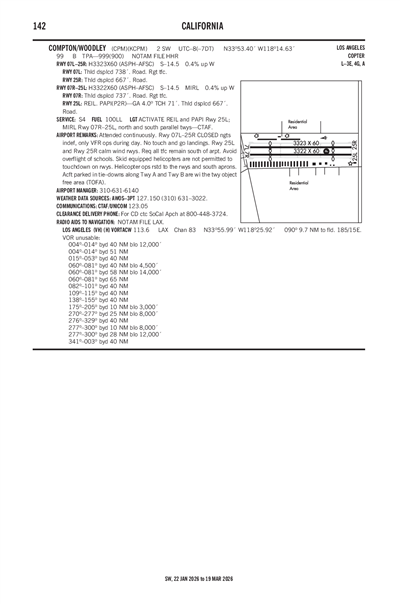

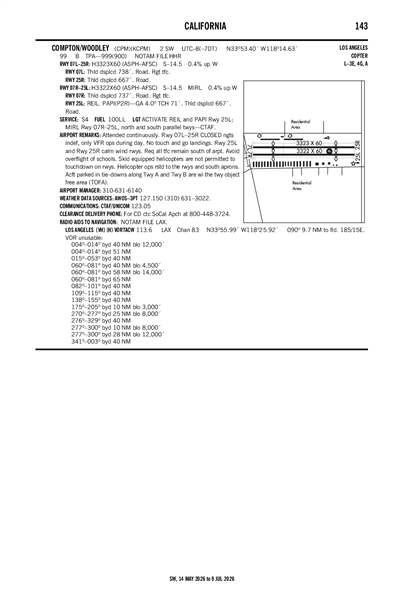

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KLGB (7nm)
Mon, 12/23 3:59 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
MVFR
4:00 AM PST - 7:00 AM PST
Mist
Overcast 1,100'
5sm
VRB° 3kts
MVFR
7:00 AM PST - 11:00 AM PST
Overcast 1,200'
6sm
VRB° 3kts
VFR
11:00 AM PST - 7:00 PM PST
Broken 25,000'
6sm
190° 7kts
MVFR
7:00 PM PST - 12:00 AM PST
Broken 1,200'
6sm
VRB° 3kts
IFR
12:00 AM PST - 4:00 AM PST
Mist
Overcast 800'
5sm
VRB° 3kts
KLGB 231159Z 2312/2412 VRB03KT 5SM BR OVC011
   FM231500 VRB03KT P6SM OVC012
   FM231900 19007KT P6SM BKN250
   FM240300 VRB03KT P6SM BKN012
   FM240800 VRB03KT 5SM BR OVC008
KCPM
Domestic
12/8/242216Z !HHR 12/030 CPM OBST TOWER LGT (ASN 2018-AWP-13411-OE) 335328N1181444W (0.1NM NW CPM) 131FT (39FT AGL) U/S 2412082216-2412232216
8/27/242026Z !HHR 08/104 CPM RWY 25L PAPI U/S 2408272026-2412312359
No
ALL
COUNTY OF LOS ANGELES
900 S. FREMONT AVE
ALHAMBRA, CA 92803
Phone: 626-300-4600
LATANYA COLLIER
901 W ALONDRA BLVD
COMPTON, CA 90220-3528
Phone: 310-631-6140
HAWTHORNE FSS (HHR)
Toll Free: 1-800-WX-BRIEF
HHR
--
ACTVT REIL & PAPI RWY 25L; MIRL RWY 07R/25L; N AND S PARL TWYS - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07L/25R

3323 ft. x 60 ft.
ASPH
Good
AFSC


14,000lbs
--
--
--
  Runway 07L Runway 25R
True Heading 89°269°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 53' 25"N 33° 53' 25"N
Longitude 118° 14' 57"W 118° 14' 18"W
Elevation 99' 85'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 07R/25L

3322 ft. x 60 ft.
ASPH
Good
AFSC
MED

14,000lbs
--
--
--
  Runway 07R Runway 25L
True Heading 89°269°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 53' 23"N 33° 53' 23"N
Longitude 118° 14' 57"W 118° 14' 18"W
Elevation 99' 86'
Threshold Crossing Height -- 71 ft. AGL
Visual Glide Path Angle --
Visual Slope Indicator -- P2R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1PLANES PARKED 145 FT NORTH OF CENTERLINE 07L/25R AND 158 FT SOUTH OF CENTERLINE 07R/25L.
A110-2REQ ALL TRAFFIC REMAIN SOUTH OF AIRPORT. AVOID OVERFLIGHT OF SCHOOLS 2900 FT EAST.
A110-3ONLY SOUTH SIDE OF NORTH PARALLEL TAXIWAY LIGHTED; ONLY NORTH SIDE OF SOUTH PARALLEL TAXIWAY LIGHTED.
A110-4RY 25L/25R CALM WIND RUNWAY.
A110-6NO TOUCH AND GO LANDINGS
A110-7SKID EQUIPPED HELICOPTERS ARE NOT PERMITTED TO TOUCH DOWN ON RUNWAYS. HELICOPTER OPERATIONS RESTRICTED TO THE RUNWAYS AND SOUTH APRONS.
A110-8FOR CD CTC SOCAL APCH AT 800-448-3724.
A110-9ACFT PARKED IN TIE-DOWNS ALONG TWY A AND TWY B ARE WI THE TWY OBJECT FREE AREA (TOFA).
COMPTON/WOODLEY (ICAO: KCPM, IATA: CPM) is a public airport located in COMPTON, CA.
