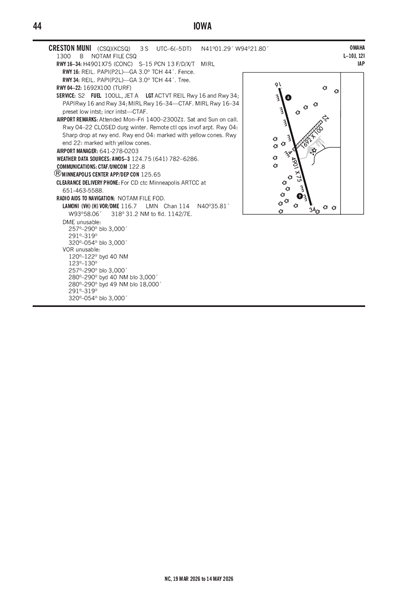

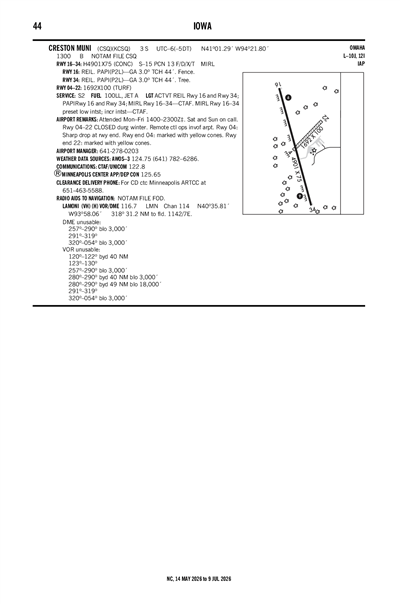

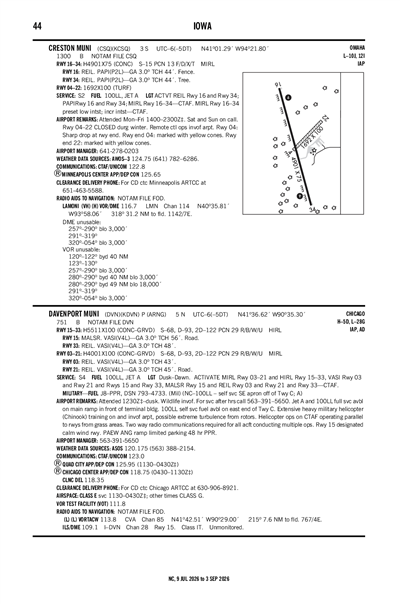

CRESTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCSQ
CRESTON MUNI
PublicPUB

3 miles S of CRESTON, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 01' 17"N 94° 21' 48"W
1300' MSL
2300' MSL
04E
JET A, 100LL
FORT DODGE (FOD)
OMAHA
MINNEAPOLIS (ZMP)
11/28/24-12/26/24
KCSQ VFR
6:15 AM CST
Clear
10sm
34°F
30°F
29.97"Hg
280° 9kts
Gusts 15kts
AO2
KCSQ 231215Z AUTO 28009G15KT 10SM CLR 01/M01 A2997 RMK AO2
Add Your Business

KCSQ FBOs

Promote Listing
West Aviation
UNICOM: 122.8
Phone: (641) 782-2383
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/9
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.99 3.99
Full Serve 4.99 3.99
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
641-782-6286
 124.75

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDSM (45nm)
Mon, 12/23 5:21 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 7:00 AM CST
Broken 15,000'
6sm
220° 8kts
VFR
7:00 AM CST - 1:00 PM CST
Broken 12,000'
Few 4,000'
6sm
300° 10kts
VFR
1:00 PM CST - 6:00 PM CST
Broken 15,000'
Scattered 3,000'
6sm
320° 9kts
MVFR
6:00 PM CST - 12:00 AM CST
Broken 2,200'
Scattered 1,200'
6sm
340° 5kts
IFR
12:00 AM CST - 6:00 AM CST
Mist
Broken 800'
4sm
VRB° 3kts
KDSM 231121Z 2312/2412 22008KT P6SM BKN150
   FM231300 30010KT P6SM FEW040 BKN120
   FM231900 32009KT P6SM SCT030 BKN150
   FM240000 34005KT P6SM SCT012 BKN022
   FM240600 VRB03KT 4SM BR BKN008
KCSQ
Domestic
12/15/240958Z !CSQ 12/005 CSQ OBST TOWER LGT (ASR 1227040) 410251.40N0941048.90W (8.4NM E CSQ) 1387.5FT (264.8FT AGL) U/S 2412150958-2501290957
12/10/240203Z !CSQ 12/001 CSQ OBST TOWER LGT (ASR 1314037) 410136.70N0940449.80W (12.83NM E CSQ) 1514FT (315FT AGL) U/S 2412100203-2501102359
11/23/241857Z !CSQ 11/003 CSQ OBST TOWER LGT (ASR 1237908) 410149.30N0940505.80W (12.6NM E CSQ) 1555.8FT (344.8FT AGL) U/S 2411231857-2502232359
No
MON-FRI 0800-1700
SAT-SUN ON CALL
CITY OF CRESTON
116 W. ADAMS
CRESTON, IA 50801
Phone: 641-782-2000
TYLER WEST
1945 CHERRY STREET ROAD
CRESTON, IA 50801
Phone: 641-278-0203
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
CSQ
--
ACTVT REIL RWY 16 & 34; PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF. MIRL RWY 16/34 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
None

Runway 04/22

1692 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern
Markings
Markings Condition
Latitude 41° 01' 14"N 41° 01' 26"N
Longitude 94° 21' 50"W 94° 21' 35"W
Elevation -- 1,300'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

4901 ft. x 75 ft.
CONC
Excellent
NONE
MED
13 /F/D/X/T
15,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 165°345°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 01' 39"N 41° 00' 53"N
Longitude 94° 21' 58"W 94° 21' 41"W
Elevation 1,289' 1,295'
Threshold Crossing Height 44 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1REMOTE CTL OPS INVOF ARPT.
A110-3FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
CRESTON MUNI (ICAO: KCSQ, IATA: CSQ) is a public airport located in CRESTON, IA.
