CROSSVILLE MEML-WHITSON FLD - Airport Diagram

KCSV

CROSSVILLE MEML-WHITSON FLD

PublicPUB

3 miles W of CROSSVILLE, TN

View on Map

Status

Operational

Coordinates

35° 57' 05"N 85° 05' 06"W

Elevation

1882' MSL

Pattern Alt

2882' MSL

Mag Variation

02W

Fuel

JET A (FSII), 100LL

FSS

NASHVILLE (BNA)

Sectional

ATLANTA

ARTCC

ATLANTA (ZTL)

Data Effective

11/28/24-12/26/24

KCSV VFR

5:53 AM CST RAW

Clear

Viz

10sm

Temp

30°F

Dew

22°F

Pres

30.39"Hg

Wind

VRB° 4kts

RMK

AO2 SLP303 T10111056 11006 21039 53007 FZRANO $

KCSV 231153Z AUTO VRB04KT 10SM CLR M01/M06 A3039 RMK AO2 SLP303 T10111056 11006 21039 53007 FZRANO $

Add Your Business

KCSV FBOs

Azure Flight Support

UNICOM: 122.7

Phone: (931) 484-5278

0 Reviews (Read | Sign In To Write)

Titan

As of 12/20	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.25
Full Serve	5.75		4.99

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.7 CTAF 122.7

ASOS

931-456-4406

120.625

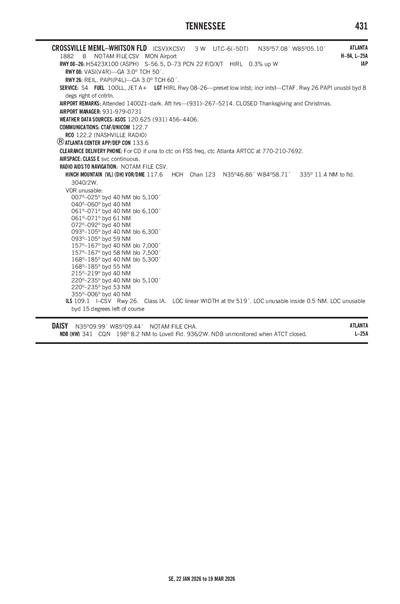

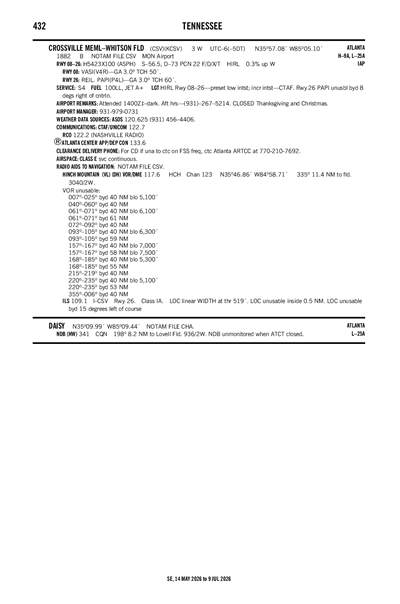

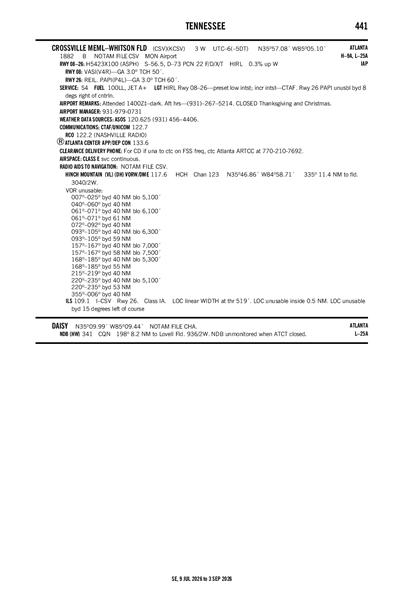

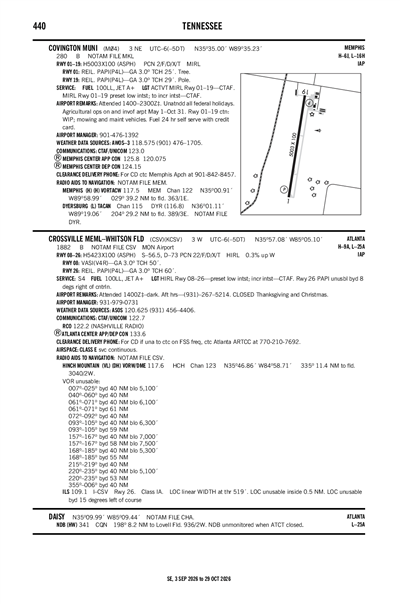

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KCSV

RAW

Reported

Mon, 12/23 5:20 AM CST

Valid

Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST

VFR

6:00 AM CST - 6:00 AM CST

Sky Clear

Viz

6sm

Wind

180° 5kts

KCSV 231120Z 2312/2412 18005KT P6SM SKC

KCSV

Domestic
12/19/242356Z	!CSV 12/011 CSV OBST TOWER LGT (ASR 1327039) 360749.55N0851208.89W (12.1NM NNW CSV) 2187FT (257FT AGL) U/S 2412192356-2502022356
12/14/240606Z	!CSV 12/003 CSV OBST TOWER LGT (ASR 1211804) 355628.00N0845546.10W (7.6NM E CSV) 2098.8FT (319.9FT AGL) U/S 2412140606-2412290506
FDC
12/12/231820Z	!FDC 3/4609 CSV IAP CROSSVILLE MEML-WHITSON FLD, CROSSVILLE, TN. VOR-A, AMDT 9B... PROCEDURE NA. 2312121820-2512121820EST

ATC Tower

Attendance

0800-DARK
CLSD THANKSGIVING & CHRISTMAS.
AFT HR - 931-267-5214.

Owner

CITY OF CROSSVILLE
392 NORTH MAIN
CROSSVILLE, TN 38555
Phone: 931-484-5278

Manager

GREG LIVINGSTON
2409 SPARTA HIGHWAY
CROSSVILLE, TN 38555
Phone: 931-484-5278

FSS

NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF

NOTAM

CSV

Light Schedule

Lights

HIRL RWY 08/26 PRESET LOW INTST; INCR INTST - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

Dimensions

5423 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

22 /F/D/X/T

Single Wheel

33,000lbs

Double Wheel

62,000lbs

Double Tandem

Dual Dbl Tand

	Runway 08	Runway 26
True Heading	73°	253°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	35° 56' 57"N	35° 57' 12"N
Longitude	85° 05' 38"W	85° 04' 34"W
Elevation	1,881'	1,867'
Threshold Crossing Height	50 ft. AGL	60 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	V4R	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights		Yes

A110-1

FOR CD IF UNA TO CTC ON FSS FREQ, CTC ATLANTA ARTCC AT 770-210-7692.

CROSSVILLE MEML-WHITSON FLD (ICAO: KCSV, IATA: CSV) is a public airport located in CROSSVILLE, TN.
