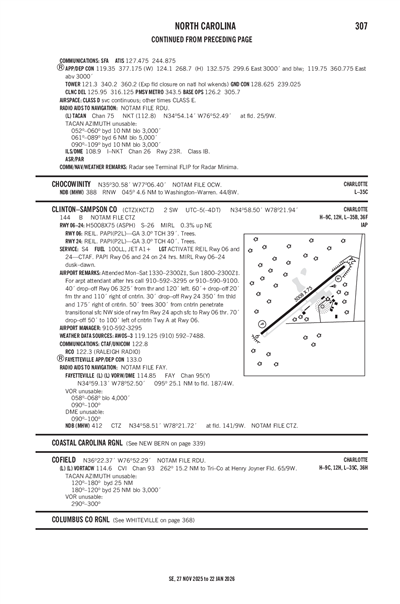

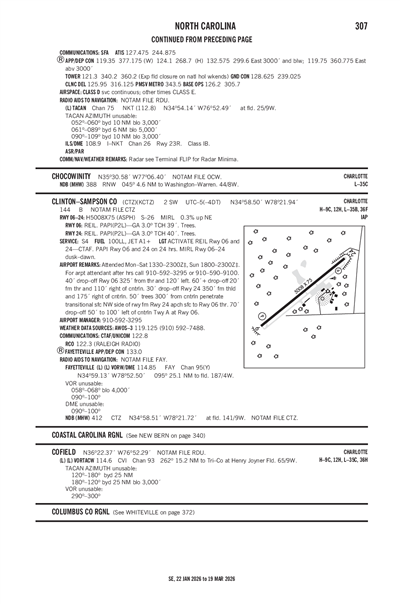

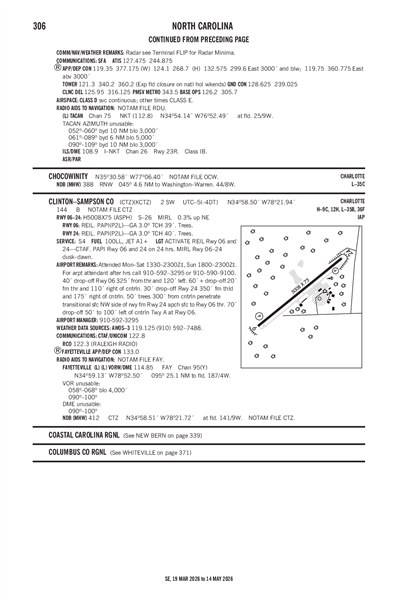

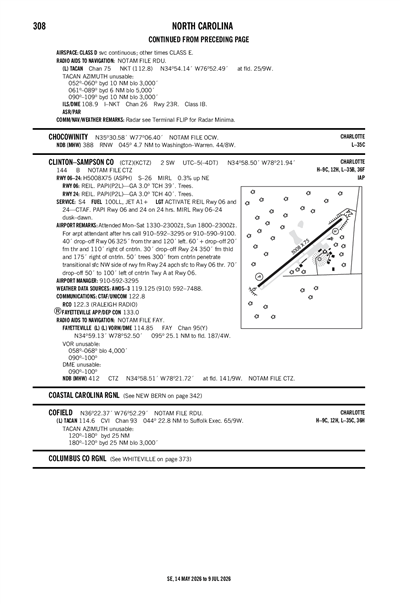

CLINTON-SAMPSON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCTZ
CLINTON-SAMPSON COUNTY
PublicPUB

2 miles SW of CLINTON, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 58' 30"N 78° 21' 56"W
144' MSL
1144' MSL
09W
JET A-1+, 100LL
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
11/28/24-12/26/24
KCTZ VFR
7:25 AM EST
Clear
10sm
24°F
22°F
30.58"Hg
Calm
AO2 T10431056
KCTZ 231225Z AUTO 00000KT 10SM CLR M04/M06 A3058 RMK AO2 T10431056
Add Your Business

KCTZ FBOs

Promote Listing
Clinton Flying Service
UNICOM: 122.8
Phone: (910) 592-3295
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/15
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.85 5.75
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
910-592-7488
 119.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFAY (25nm)
Mon, 12/23 6:20 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 7:00 PM EST
Sky Clear
6sm
VRB° 5kts
VFR
7:00 PM EST - 1:00 AM EST
Broken 7,000'
6sm
020° 3kts
VFR
1:00 AM EST - 7:00 AM EST
Overcast 5,000'
6sm
360° 3kts
VFR
5:00 AM EST - 7:00 AM EST
Light Rain
Overcast 4,000'
6sm
Calm
KFAY 231120Z 2312/2412 VRB05KT P6SM SKC
   FM240000 02003KT P6SM BKN070
   FM240600 36003KT P6SM OVC050
   PROB30 2410/2412 6SM -RA OVC040
KCTZ
Domestic
12/22/241755Z !CTZ 12/010 CTZ OBST TOWER LGT (ASR 1250338) 345246.10N0782634.90W (7.0NM SW CTZ) 367.8FT (259.8FT AGL) U/S 2412221755-2503041755
12/19/241938Z !CTZ 12/009 CTZ COM REMOTE COM OUTLET U/S 2412191938-2412252000EST
12/10/241300Z !CTZ 12/006 CTZ OBST TOWER LGT (ASR 1004809) 350530.00N0782300.90W (7.1NM N CTZ) 579.7FT (424.9FT AGL) U/S 2412101300-2504091300
12/1/242006Z !CTZ 12/001 CTZ OBST TOWER LGT (ASR 1242025) 350128.00N0781759.40W (4.5NM NE CTZ) 426.8FT (273.0FT AGL) U/S 2412012006-2501152005
11/28/241737Z !CTZ 11/005 CTZ OBST TOWER LGT (ASR 1007368) 345917.00N0781705.00W (4.1NM E CTZ) 451.8FT (299.9FT AGL) U/S 2411281737-2502111737
11/5/241338Z !CTZ 11/001 CTZ OBST TOWER LGT (ASR 1025003) 344715.00N0782123.00W (11.3NM S CTZ) 438.0FT (349.1FT AGL) U/S 2411051338-2501052359
6/6/241616Z !CTZ 06/002 CTZ NAV ILS RWY 06 LOC U/S 2406061616-2412312000EST
FDC
12/22/240227Z !FDC 4/0120 CTZ IAP CLINTON-SAMPSON COUNTY, CLINTON, NC.
VOR/DME-A, AMDT 6C...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FAY VOR OUT OF SERVICE. 2412220227-2501210227EST
3/15/241346Z !FDC 4/7675 CTZ IAP CLINTON-SAMPSON COUNTY, CLINTON, NC.
VOR/DME-A, AMDT 6C...
PROCEDURE NA.
2403151346-2603151346EST
6/6/231509Z !FDC 3/6413 CTZ IAP CLINTON-SAMPSON COUNTY, CLINTON, NC.
RNAV (GPS) Z RWY 24, ORIG-C...
VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 40).
2306061509-2506061509EST
6/6/231509Z !FDC 3/6412 CTZ IAP CLINTON-SAMPSON COUNTY, CLINTON, NC.
RNAV (GPS) Y RWY 24, AMDT 1D...
VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 3.00/TCH 40).
2306061509-2506061509EST
No
MON-SAT 0830-1800
SUN 1300-1800
FOR ARPT ATTENDANT AFTER HRS CALL 910-592-3295 OR 910-590-9100.
SAMPSON COUNTY/CITY OF CLINTON
221 LISBON STREET
CLINTON, NC 28328
Phone: 910-592-1961
JAMES DUNCAN
89 SAMPSON AIRPORT ROAD
CLINTON, NC 28328
Phone: 910-592-3295
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
CTZ
--
ACTVT REIL RWY 06 & 24 - CTAF. PAPI RWY 06 & 24 ON 24 HRS. MIRL RWY 06/24 DUSK-DAWN.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

5008 ft. x 75 ft.
ASPH
Good
NONE
MED

26,000lbs
--
--
--
  Runway 06 Runway 24
True Heading 51°231°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 58' 14"N 34° 58' 45"N
Longitude 78° 22' 20"W 78° 21' 33"W
Elevation 130' 144'
Threshold Crossing Height 39 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-150 FT TREES 300 FT FM CNTRLN PENETRATE TRANSITIONAL SFC NW SIDE OF RWY FM RWY 24 APCH SFC TO RWY 06 THR.
A110-240 FT DROP-OFF RWY 06 325 FT FROM THR & 120 FT LEFT. 60+ FT DROP-OFF 20 FT FM THR & 110 FT RIGHT OF CNTRLN.
A110-530 FT DROP-OFF RWY 24 350 FT FM THR & 175 FT RIGHT OF CNTRLN.
A110-6TWY A AT RWY 06 HAS 70 FT DROP-OFF 50 FT TO 100 FT LEFT OF CNTRLN.
CLINTON-SAMPSON COUNTY (ICAO: KCTZ, IATA: CTZ) is a public airport located in CLINTON, NC.
