KCUH
CUSHING MUNI
Public
PUB
2 miles S of CUSHING, OK
View on
Map
Status
Operational
Coordinates
35° 57' 00"N
96° 46' 24"W
Elevation
925' MSL
Pattern Alt
1925' MSL
Mag Variation
05E
Fuel
JET A, 100LL
FSS
MC ALESTER (MLC)
Sectional
DALLAS-FT WORTH
ARTCC
KANSAS CITY (ZKC)
Data Effective
5/16/24-6/13/24
KCUH
VFR
11:55 PM CDT
RAW
Broken 3,200'
Viz
10sm
Temp
67°F
Dew
66°F
Pres
29.98"Hg
Wind
Calm
RMK
AO2 T01940188
KCUH 010455Z AUTO 00000KT 10SM BKN032 19/19 A2998 RMK AO2 T01940188
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KCUH FBOs
Promote Listing
Cushing Municipal Airport
UNICOM: 122.8
Phone: (918) 225-0881
0 Reviews
(
Read
|
Sign In To Write
)
Phillips 66
As of
5/14
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
4.94
4.49
Full Serve
5.29
4.49
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
AWOS-3PT
AWOS-3PT
(918) 225-6072
118.25
FAA A/FD Pages
FAA A/FD Page

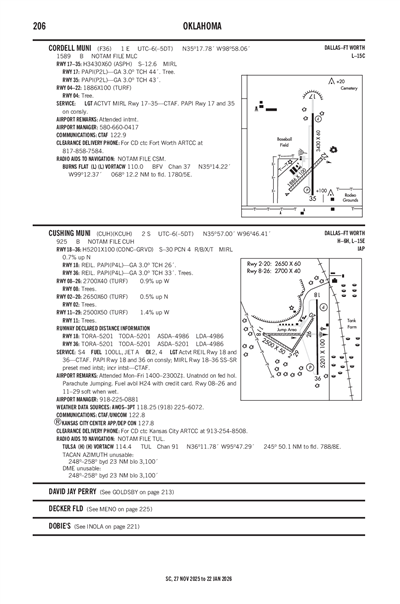

Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 18
RNAV (GPS) RWY 36
Terminal Area Forecast
KSWO (20nm)
RAW
Reported
Fri, 5/31 6:20 PM CDT
Valid
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 4:00 AM CDT
Broken 10,000'
Viz
6sm
Wind
070° 4kts
IFR
4:00 AM CDT - 12:00 PM CDT
Overcast 700'
Viz
6sm
Wind
350° 4kts
MVFR
12:00 PM CDT - 1:00 PM CDT
Broken 2,200'
Viz
6sm
Wind
120° 5kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 3,500'
Viz
6sm
Wind
120° 5kts
KSWO 312320Z 0100/0124 07004KT P6SM BKN100
FM010900 35004KT P6SM OVC007
FM011700 12005KT P6SM BKN022
FM011800 12005KT P6SM BKN035
KCUH
Domestic
5/19/24
0550Z
!CUH 05/006 CUH OBST TOWER LGT (ASR 1268224) 360500.60N0963541.40W (11.8NM NE CUH) 1174.2FT (305.1FT AGL) U/S 2405190550-2406030450
5/7/24
0426Z
!CUH 05/003 CUH OBST TOWER LGT (ASN 2020-ASW-4979-OE) 360044N0965410W (7.3NM WNW CUH) 1110FT (230FT AGL) U/S 2405070426-2406210426
4/28/24
0430Z
!CUH 04/012 CUH OBST TOWER LGT (ASR 1065050) 355930.80N0963223.90W (11.7NM ENE CUH) 1319.9FT (299.9FT AGL) U/S 2404280430-2406120429
ATC Tower
No
Attendance
MON-FRI 0800-1700
UNATNDD FED HOL.
Owner
CITY OF CUSHING
PO BOX 311
CUSHING, OK 74023
Phone: 918-225-2394
Manager
MIKE MIDDLETON
2414 TOM MALONEY DR
CUSHING, OK 74023
Phone: 918-225-0881
FSS
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
NOTAM
CUH
Light Schedule
--
Lights
ACTVT REIL RWY 18 & 36 - CTAF; PAPI RWY 18 & 36 ON CONSLY; MIRL RWY 18/36 SS-SR PRESET MED INTST; INCR INTST - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
24
# Multi Engine
1
# Jets
0
# Helicopters
2
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
Low Pressure
Bulk Oxygen
Low Pressure
Other Services
Air Ambulance
Parachute Jump Activity
Runway 02/20
Dimensions
2650 ft. x 60 ft.
Surface Type
TURF
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 02
Runway 20
True Heading
31°
211°
Traffic Pattern
Left
Left
Markings
NSTD
NSTD
Markings Condition
GOOD
GOOD
Latitude
35° 56' 49"N
35° 57' 12"N
Longitude
96° 46' 30"W
96° 46' 14"W
Elevation
891'
905'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 08/26
Dimensions
2700 ft. x 40 ft.
Surface Type
TURF
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 08
Runway 26
True Heading
90°
270°
Traffic Pattern
Left
Left
Markings
NSTD
NSTD
Markings Condition
GOOD
GOOD
Latitude
35° 57' 02"N
35° 57' 02"N
Longitude
96° 46' 56"W
96° 46' 23"W
Elevation
924'
901'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 11/29
Dimensions
2500 ft. x 50 ft.
Surface Type
TURF
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 11
Runway 29
True Heading
122°
302°
Traffic Pattern
Left
Left
Markings
NSTD
NSTD
Markings Condition
GOOD
GOOD
Latitude
35° 57' 04"N
35° 56' 51"N
Longitude
96° 46' 55"W
96° 46' 29"W
Elevation
925'
891'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 18/36
Dimensions
5201 ft. x 100 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
MED
Pavement Class
4 /R/B/X/T
Single Wheel
30,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
180°
360°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
FAIR
FAIR
Latitude
35° 57' 26"N
35° 56' 35"N
Longitude
96° 46' 09"W
96° 46' 09"W
Elevation
916'
879'
Threshold Crossing Height
26 ft. AGL
33 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A110-2
RWY 08/26 & 11/29 SOFT WHEN WET.
CUSHING MUNI (ICAO: KCUH, IATA: CUH) is a public airport located in CUSHING, OK.
