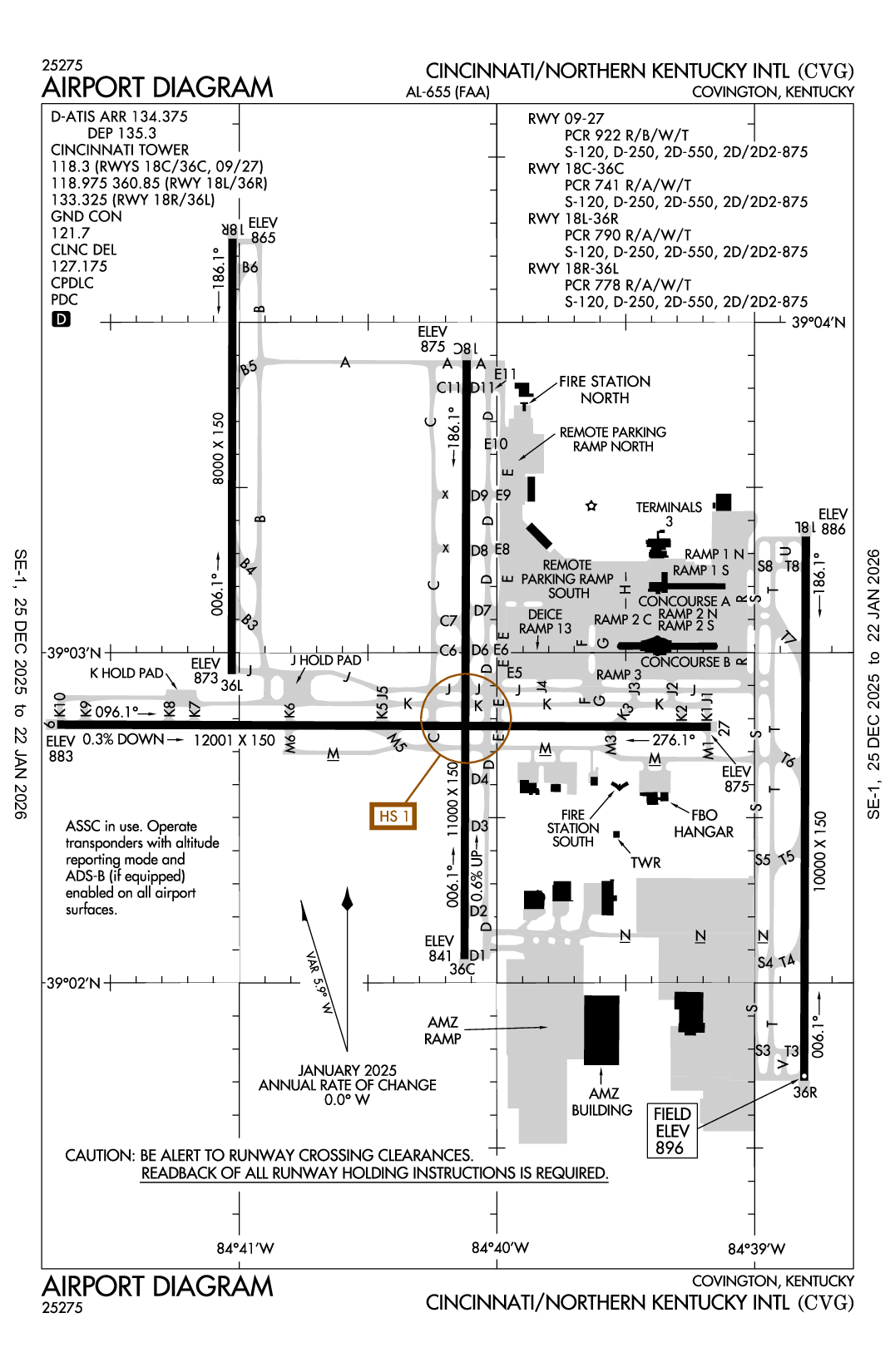

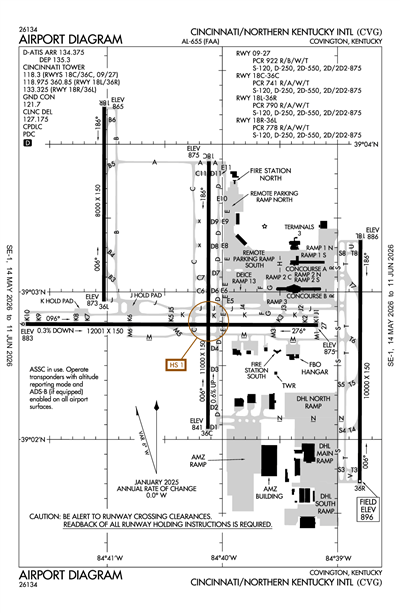

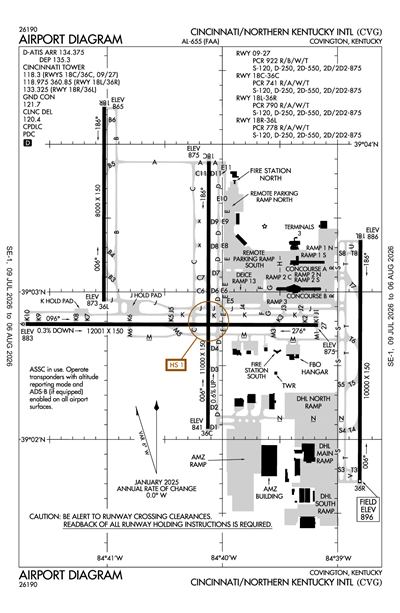

CINCINNATI/NORTHERN KENTUCKY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCVG
CINCINNATI/NORTHERN KENTUCKY INTL
PublicPUB

8 miles SW of COVINGTON, KY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 02' 56"N 84° 40' 04"W
896' MSL
1896' MSL
06W
JET A, 100LL
LOUISVILLE (LOU)
CINCINNATI
INDIANAPOLIS (ZID)
11/28/24-12/26/24
KCVG VFR
6:52 AM EST
Clear
10sm
23°F
17°F
30.34"Hg
170° 7kts
AO2 SLP282 T10501083 11028 21050 55008 $
KCVG 231152Z 17007KT 10SM CLR M05/M08 A3034 RMK AO2 SLP282 T10501083 11028 21050 55008 $
Add Your Business

KCVG FBOs

Promote Listing
WHEELS UP
UNICOM: 122.95
Phone: (859) 534-4301
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.39 5.42 5.57
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
ARR
 134.375
D-ATIS
DEP
 135.3

ASOS

ASOS
859-767-8210
 134.375

Approach

APCH/P
090-269
 119.7
APCH/P
270-089
 123.875

Departure

DEP/P
001-180
 126.65
DEP/P
181-360
 128.7

Clearance Delivery

CD/P
 127.175

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
RWY 09/27, 18C/36C
 118.3
LCL/P
RWY 18L/36R
 118.975
LCL/P
RWY 18R/36L
 133.325

Other

CLASS B
001-180
 121.0
CLASS B
181-360
 128.7
JAKIE STAR
 119.7

Terminal Area Forecast

KCVG
Mon, 12/23 6:35 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 1:00 PM EST
VFR
7:00 AM EST - 11:00 AM EST
Scattered 25,000'
6sm
170° 8kts
VFR
11:00 AM EST - 11:00 PM EST
Overcast 5,000'
6sm
210° 10kts
Gusts 20kts
MVFR
11:00 PM EST - 3:00 AM EST
Overcast 3,000'
6sm
230° 7kts
MVFR
Temporary 1:00 AM EST - 2:00 AM EST
Light Rain
Broken 3,000'
N/A
Calm
MVFR
3:00 AM EST - 7:00 AM EST
Overcast 2,000'
6sm
230° 6kts
IFR
7:00 AM EST - 1:00 PM EST
Broken 900'
6sm
240° 5kts
KCVG 231135Z 2312/2418 17008KT P6SM SCT250
   FM231600 21010G20KT P6SM OVC050
   FM240400 23007KT P6SM OVC030
   TEMPO 2406/2407 -RA BKN030
   FM240800 23006KT P6SM OVC020
   FM241200 24005KT P6SM BKN009
KCVG
Domestic
12/20/240918Z !CVG 12/198 CVG RWY 18C RWY EXIT SIGN AT TWY C7 RIGHT SIDE LGT U/S 2412200918-2412312359
12/20/240906Z !CVG 12/197 CVG RWY 36C RWY EXIT SIGN AT TWY C7 LEFT SIDE LGT U/S 2412200906-2412312359
12/20/240905Z !CVG 12/196 CVG RWY 18C RWY EXIT SIGN AT TWY C11 LEFT SIDE LGT U/S 2412200905-2412312359
12/20/240253Z !CVG 12/193 CVG TWY C TWY DIRECTION SIGN FOR TWY C7 LGT U/S 2412200253-2412312359
12/20/240250Z !CVG 12/192 CVG TWY C6 HLDG PSN SIGN NORTH SIDE FOR RWY 18C/36C LGT U/S 2412200250-2412312359
12/20/240237Z !CVG 12/190 CVG RWY 09 RWY EXIT SIGN AT TWY D LEFT SIDE LGT U/S 2412200237-2412312359
12/20/240152Z !CVG 12/189 CVG RWY 09 HLDG PSN SIGN AT RWY 18C/36C LEFT SIDE LGT U/S 2412200152-2412312359
12/20/240151Z !CVG 12/188 CVG RWY 27 HLDG PSN SIGN AT RWY 18C/36C RIGHT SIDE LGT U/S 2412200151-2412312359
12/17/242017Z !CVG 12/179 CVG NAV ILS RWY 36C IM U/S 2412172017-2501312000EST
12/13/242306Z !CVG 12/155 CVG RWY 18C LEAD ON LGT AT TWY A E SIDE NOT STD 2412132306-2501312300
12/13/242117Z !CVG 12/154 CVG TWY D6 SFC PAINTED HLDG PSN SIGNS AT RWY 18C/36C NOT STD 2412132117-2505302300
12/13/242116Z !CVG 12/153 CVG TWY A SFC PAINTED HLDG PSN SIGNS AT RWY 18C/36C WEST SIDE NOT STD 2412132116-2505302300
12/3/242301Z !CVG 12/060 CVG OBST TOWER LGT (ASR 1047781) 390357.00N0843630.00W (3.0NM ENE CVG) 1196.9FT (306.8FT AGL) U/S 2412032301-2501172300
11/30/241729Z !CVG 11/185 CVG TWY M3 HLDG PSN MARKINGS FOR RWY 09/27 EAST SIDE NOT STD 2411301729-2505302330
11/30/241715Z !CVG 11/184 CVG RWY 18L/36R CL MARKINGS OBSC 2411301715-2505302359
11/30/241715Z !CVG 11/183 CVG RWY 09/27 CL MARKINGS OBSC 2411301715-2505302359
11/29/242327Z !CVG 11/180 CVG OBST TOWER LGT (ASR 1057997) 385854.50N0843244.80W (6.9NM SE CVG) 1118.1FT (287.1FT AGL) U/S 2411292327-2503292327
11/27/242002Z !CVG 11/175 CVG TWY A SFC MARKINGS BTN TWY C AND TWY D NOT STD 2411272002-2505302100
11/27/242000Z !CVG 11/174 CVG TWY K SFC MARKINGS BTN TWY E AND TWY C NOT STD 2411272000-2505302200
11/19/241705Z !CVG 11/097 CVG APRON TXL G BTN RAMP 2 CENTER TXL AND RAMP 3 TXL CLSD TO ACFT WINGSPAN MORE THAN 135FT 2411191705-2412312300
11/9/241902Z !CVG 11/046 CVG TWY E IN PAVEMENT RWY GUARD LGT FOR RWY 09/27 SOUTH
SIDE NOT STD 2411091902-2412312300
11/9/241547Z !CVG 11/044 CVG OBST CRANE (ASN UNKNOWN) 390130N0843928W (1.7NM SE CVG)
1008FT (106FT AGL) FLAGGED 2411091547-2412312300
8/28/241643Z !CVG 08/250 CVG APRON RAMP 2 SOUTH TXL BTN TXL F AND TXL R CLSD TO ACFT WINGSPAN MORE THAN 118FT 2408281643-2412312359
8/28/241626Z !CVG 08/249 CVG APRON RAMP 2 SPOT 4 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2408281626-2412312359
FDC
12/19/241629Z !FDC 4/8910 CVG SID CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
CINCINNATI SIX DEPARTURE...
MSA FROM PWF NDB, 2900.
2412191629-2607011629EST
12/12/241901Z !FDC 4/5906 CVG ODP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
ADD TAKEOFF OBSTACLE NOTES: RWY 18C, TEMPORARY CRANES BEGINNING 1140FT FROM DER, 778FT LEFT OF CENTERLINE, 29FT AGL/875FT MSL (2021-ASO-6834,7075,7076,7077-NRA). TEMPORARY CRANE 3635FT FROM DER, 1220FT LEFT OF CENTERLINE, 39FT AGL/938FT MSL (2021-ASO-6834-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2412121901-2504151901EST
12/12/241718Z !FDC 4/5819 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
RNAV (RNP) Z RWY 36C, ORIG-D...
RNP 0.30 DA 1458/HAT 608 ALL CATS, VIS 1 3/8 ALL CATS. FOR INOP ALS, INCREASE RNP 0.30 ALL CATS VISIBILITY TO 1 3/4 SM. TEMPORARY CRANE 1109 MSL 5548FT SE OF RWY 36C (2024-ASO-2513-NRA). TEMPORARY CRANE 1087FT MSL 2907FT SOUTHEAST OF RWY 36C (2021-ASO-1717-NRA, 2019-ASO-3736-NRA).
2412121718-2508151718EST
12/12/241718Z !FDC 4/5818 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
RNAV (GPS) Y RWY 36R, AMDT 1E...
LNAV MDA 1420/HAT 524 ALL CATS, VIS CAT C/D RVR 5500. FOR INOP ALS, INCREASE LNAV CAT C/D VISIBILITY TO 1 3/8 SM. TEMPORARY CRANE 1109 MSL 3244FT SW OF RWY 36R (2024-ASO-2513-NRA).
2412121718-2508151718EST
12/12/241718Z !FDC 4/5817 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
RNAV (GPS) Y RWY 36C, AMDT 1E...
LNAV MDA 1420/HAT 570 ALL CATS. TEMPORARY CRANE 1109 MSL 5548FT SE OF RWY 36C (2024-ASO-2513-NRA).
2412121718-2508151718EST
7/30/241316Z !FDC 4/9744 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
ILS OR LOC RWY 18L, AMDT 7D...
MISSED APPROACH: CLIMB TO 1500 THEN CLIMBING LEFT TURN TO 4000 VIA HEADING 120 AND FLM R-339 TO FLM VOR/DME AND HOLD,
CVG VORTAC OUT OF SERVICE. 2407301316-2503111316EST
7/30/241316Z !FDC 4/9743 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
ILS OR LOC RWY 27, AMDT 19...
ILS RWY 27 (SA CAT I AND II), AMDT 19...
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING LEFT TURN TO 3000 DIRECT FLM VOR/DME AND HOLD,
CVG VORTAC OUT OF SERVICE. 2407301316-2503111316EST
7/30/241316Z !FDC 4/9742 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
ILS OR LOC RWY 9, AMDT 18C...
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING RIGHT TURN TO 3000 VIA HEADING 170 AND FLM R-324 TO FLM VOR/DME AND HOLD,
CVG VORTAC OUT OF SERVICE. 2407301316-2503111316EST
7/30/241316Z !FDC 4/9741 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
ILS OR LOC RWY 36C, AMDT 41D...
ILS RWY 36C (CAT II AND III), AMDT 41D...
MISSED APPROACH: CLIMB TO 4000 FOR RADAR VECTORS TO DULEY/FLM R-340/41.16 DME AND HOLD. RADAR AND DME REQUIRED,
CVG VORTAC OUT OF SERVICE. 2407301316-2503111316EST
7/30/241316Z !FDC 4/9739 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
ILS OR LOC RWY 18R, AMDT 1C...
ILS RWY 18R (CAT II), AMDT 1C...
MISSED APPROACH: CLIMB TO 1300 THEN CLIMBING RIGHT TURN TO 4000 VIA HEADING 270 AND FLM VOR/DME R-314 TO JADRO/FLM 43.27 DME AND HOLD. DME REQUIRED,
CVG VORTAC OUT OF SERVICE. 2407301316-2503111316EST
7/30/241316Z !FDC 4/9738 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
ILS OR LOC RWY 36R, AMDT 8C...
ILS RWY 36R (CAT II AND III), AMDT 8C...
MISSED APPROACH: CLIMB TO 1500 THEN CLIMBING RIGHT TURN TO 4000 DIRECT FLM VOR/DME AND HOLD,
CVG VORTAC OUT OF SERVICE. 2407301316-2503111316EST
7/30/241316Z !FDC 4/9737 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
ILS OR LOC RWY 36L, AMDT 1C...
ILS RWY 36L (CAT II), AMDT 1C...
MISSED APPROACH: CLIMB TO 1300 THEN CLIMBING LEFT TURN TO 4000 VIA HEADING 260 AND VIA FLM R-314 TO JADRO/FLM 43.27 DME AND HOLD,
CVG VORTAC OUT OF SERVICE. 2407301316-2503111316EST
7/30/241316Z !FDC 4/9736 CVG IAP CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
ILS OR LOC RWY 18C, AMDT 23...
ILS RWY 18C (SA CAT I AND II), AMDT 23...
MISSED APPROACH: CLIMB TO 4000 FOR RADAR VECTORS TO ZIRKE/FLM 17.35 DME AND HOLD. RADAR AND DME REQUIRED,
CVG VORTAC OUT OF SERVICE. 2407301316-2503111316EST
5/16/240901Z !FDC 4/3669 CVG STAR CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON,
KY.
JAKIE SIX ARRIVAL...DOLLI TRANSITION NOT AVBL

2405160901-2505150900EST
3/21/240900Z !FDC 4/9350 CVG SID CINCINNATI/NORTHERN KENTUCKY INTL, COVINGTON, KY.
LOVEY SEVEN DEPARTURE ...
DELETE NOTE: FOR TURBOJETS ONLY.
ALL OTHER DATA REMAINS AS PUBLISHED. 2403210900-2603201925EST
Yes
ALL
KENTON COUNTY ARPT BOARD
PO BOX 752000
CINCINNATI, OH 45275-2000
Phone: 859-767-3151
CANDACE MCGRAW
PO BOX 752000
CINCINNATI, OH 45275-2000
Phone: 859-767-3151
LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF
CVG
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 09/27

12001 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
101/R/B/W/T
120,000lbs
250,000lbs
550,000lbs
875,000lbs
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 02' 47"N 39° 02' 47"N
Longitude 84° 41' 42"W 84° 39' 10"W
Elevation 883' 875'
Threshold Crossing Height 70 ft. AGL 67 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18C/36C

11000 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
112/F/C/W/T
120,000lbs
250,000lbs
550,000lbs
875,000lbs
  Runway 18C Runway 36C
True Heading 180°0°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 03' 53"N 39° 02' 04"N
Longitude 84° 40' 07"W 84° 40' 07"W
Elevation 875' 841'
Threshold Crossing Height 71 ft. AGL 77 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18L/36R

10000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
127/R/B/W/T
120,000lbs
250,000lbs
550,000lbs
875,000lbs
  Runway 18L Runway 36R
True Heading 180°0°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 03' 21"N 39° 01' 42"N
Longitude 84° 38' 48"W 84° 38' 48"W
Elevation 886' 896'
Threshold Crossing Height 71 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18R/36L

8000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
170/R/B/W/T
120,000lbs
250,000lbs
550,000lbs
875,000lbs
  Runway 18R Runway 36L
True Heading 180°0°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 04' 15"N 39° 02' 56"N
Longitude 84° 41' 01"W 84° 41' 02"W
Elevation 865' 873'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-10SUCCESSIVE OR SIMUL DEP FM RWY 18L, 18C, 36L, 36C & 36R APVD WITH COURSE DVRG BGN NO FURTHER THAN 2 MI FM EOR DUE TO NOISE ABATEMENT.
A110-11TWYS RSTRD TO 15 MPH OR LESS WITH WINGSPAN 214 FT OR MORE.
A110-13BIRDS ON & INVOF THE ARPT.
A110-15RAMP CTL: RAMP 1N / 1S TXL & RAMP 2N / 2S TXL - 130.90, RAMP 3 TXL & N TXL - 130.375; DHL RAMP CTL: 129.475; AMZ RAMP CTL: 130.5.
A110-3NOISE SENS AREA N & S OF ARPT; RWY ASGN 2200-0700 BASED ON NOISE ABATEMENT.
CINCINNATI/NORTHERN KENTUCKY INTL (ICAO: KCVG, IATA: CVG) is a public airport located in COVINGTON, KY.
